NTSCGEWOEU柔软中压拖曳电缆

应用

该电缆作为供电电缆或连接电缆用于大型材料处理机械，如露天采矿中承受很高机械应力的挖掘机T。特别适合在拖曳工作中需要耐磨强度的应用。

标准

VDE 0250 Part 813

结构

导体：DIN VDE 0295标准class 5柔软多股镀锡铜导体。
内导体层：半导层。
绝缘：Type 3GI3橡胶。
外导体层：半导层。
接地线：分为3根分散于外层间隙或在单根芯线绝缘层外以同心方式分布（代码.../3E）。
加强带：极抗撕裂加强带。
内护套：Type 5GM5橡胶， 耐磨耐撕裂、防油、耐臭氧。
外护套：Type 5GM5橡胶， 耐磨耐撕裂、防油、耐臭氧，与内护套紧密粘结。

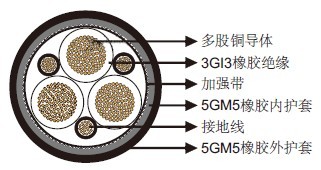

NTSCGEWOEU柔软中压拖曳矿用电缆

尺寸和重量

1.8/3kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 38.5 41.5 2470
3×35+3×25/3 42.9 45.9 3080
3×50+3×25/3 46.1 49.1 3750
3×70+3×35/3 49.7 53.7 4690
3×95+3×50/3 57.4 61.4 6210
3×120+3×70/3 61.2 65.2 7430
3×150+3×70/3 66.7 70.7 8900
3×185+3×95/3 70.6 74.6 10330
3×25+2×25/2+1×10ST 40.3 44.3 2470
3×35+2×25/2+1×10ST 42.9 46.9 3080
3×50+2×25/2+1×10ST 46.8 50.8 3750
3×70+2×35/2+1×10ST 51.5 55.5 4690
3×95+2×50/2+1×10ST 57.4 62.4 6210
3×120+2×70/2+1×10ST 63.6 68.6 7430
3×150+2×70/2+1×10ST 67.2 72.2 8900
3×185+2×95/2+1×10ST 70.2 75.2 10330

3.6/6kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 44.6 47.6 3080
3×35+3×25/3 47.6 50.6 3590
3×50+3×25/3 52.4 56.4 4520
3×70+3×35/3 56.3 60.3 5520
3×95+3×50/3 59.9 63.9 6580
3×120+3×70/3 65.6 69.6 8110
3×150+3×70/3 69.3 73.3 9320
3×185+3×95/3 73.2 77.2 10780
3×25+2×25/2+1×10ST 45.0 49.0 3200
3×35+2×25/2+1×10ST 47.6 51.6 3680
3×50+2×25/2+1×10ST 53.0 57.0 4640
3×70+2×35/2+1×10ST 56.2 60.2 5550
3×95+2×50/2+1×10ST 61.8 66.8 6650
3×120+2×70/2+1×10ST 66.1 71.1 8160
3×150+2×70/2+1×10ST 69.8 74.8 9340
3×185+2×95/2+1×10ST 74.6 79.6 10890

6/10 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 46.4 49.4 3270
3×35+3×25/3 49.1 53.1 3800
3×50+3×25/3 54.1 58.1 4750
3×70+3×35/3 58.0 62.0 5750
3×95+3×50/3 61.7 65.7 6830
3×120+3×70/3 67.4 71.4 8380
3×150+3×70/3 71.0 75.0 9620
3×185+3×95/3 76.7 80.7 11430
3×25+2×25/2+1×10ST 46.8 50.8 3410
3×35+2×25/2+1×10ST 50.9 54.9 3890
3×50+2×25/2+1×10ST 54.5 58.9 4860
3×70+2×35/2+1×10ST 58.0 62.0 5780
3×95+2×50/2+1×10ST 63.5 68.5 6920
3×120+2×70/2+1×10ST 67.8 72.8 8450
3×150+2×70/2+1×10ST 71.5 76.5 9620
3×185+2×95/2+1×10ST 76.3 81.3 10980

8.7/15 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 52.6 56.6 4040
3×35+3×25/3 55.6 59.6 4630
3×50+3×25/3 58.9 62.9 5370
3×70+3×35/3 64.5 68.5 6720
3×95+3×50/3 68.2 72.2 7850
3×120+3×70/3 72.1 76.1 9130
3×150+3×70/3 77.6 81.6 10750
3×185+3×95/3 81.5 85.5 12290
3×25+2×25/2+1×10ST 53.0 57.0 4130
3×35+2×25/2+1×10ST 55.6 59.6 4740
3×50+2×25/2+1×10ST 59.3 63.3 5470
3×70+2×35/2+1×10ST 64.6 68.6 6820
3×95+2×50/2+1×10ST 68.3 73.3 7950
3×120+2×70/2+1×10ST 74.4 79.4 9240
3×150+2×70/2+1×10ST 78.1 83.1 10860
3×185+2×95/2+1×10ST 81.1 86.1 12400

12/20 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 56.9 60.9 4620
3×35+3×25/3 59.9 63.9 5220
3×50+3×25/3 65.0 69.0 6300
3×70+3×35/3 68.9 72.9 7410
3×95+3×50/3 72.5 76.5 8560
3×120+3×70/3 78.2 82.2 10260
3×150+3×70/3 81.9 85.9 11570
3×185+3×95/3 87.4 92.4 13530
3×25+2×25/2+1×10ST 57.3 61.3 4770
3×35+2×25/2+1×10ST 59.9 63.9 5340
3×50+2×25/2+1×10ST 65.4 69.4 6460
3×70+2×35/2+1×10ST 68.8 72.8 7450
3×95+2×50/2+1×10ST 74.4 79.4 8680
3×120+2×70/2+1×10ST 78.7 83.7 10370
3×150+2×70/2+1×10ST 82.2 87.2 11650
3×185+2×95/2+1×10ST 87.0 92.0 13090

14/25 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+2×25/2+1×10ST 64.7 68.7 5940
3×35+2×25/2+1×10ST 67.3 71.3 6470
3×50+2×25/2+1×10ST 71.0 75.0 7300
3×70+2×35/2+1×10ST 75.2 80.2 8800
3×95+2×50/2+1×10ST 80.0 85.0 10050
3×120+2×70/2+1×10ST 85.9 90.9 11470
3×150+2×70/2+1×10ST 89.6 94.6 13210
3×185+2×95/2+1×10ST 92.6 97.6 14860

18/30 kV

芯数×标称截面积 最小外径 最大外径 标称重量
No. ×mm² mm mm kg/km
3×25+3×25/3 69.5 73.5 6680
3×35+3×25/3 72.5 76.5 7380
3×50+3×25/3 77.6 81.6 8460
3×70+3×35/3 81.5 85.5 9690
3×95+3×50/3 84.9 89.9 10960
3×120+3×70/3 90.6 95.6 12830
3×150+3×70/3 94.3 99.3 14250
3×185+3×95/3 100.0 105.0 16390
3×25+2×25/2+1×10ST 69.9 73.9 7100
3×35+2×25/2+1×10ST 72.6 76.6 7540
3×50+2×25/2+1×10ST 78.0 82.0 8680
3×70+2×35/2+1×10ST 80.4 85.4 9760
3×95+2×50/2+1×10ST 86.8 91.8 11100
3×120+2×70/2+1×10ST 91.1 96.1 12980
3×150+2×70/2+1×10ST 94.8 99.8 14350
3×185+2×95/2+1×10ST 99.6 104.6 15870
