Portuguese Standard Industrial Cables
XG (frs) / XZ1(frs)

APPLICATIONS:

These cables are specially designed to transmit electric power in the extrem conditions that there are in a large fire, assuring electric supply to emergency circuits, like signaling lights, fume extractors, acustic alarms, water pumps, etc. In case of fire, it does not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.

STANDARD:

IEC 60502-1

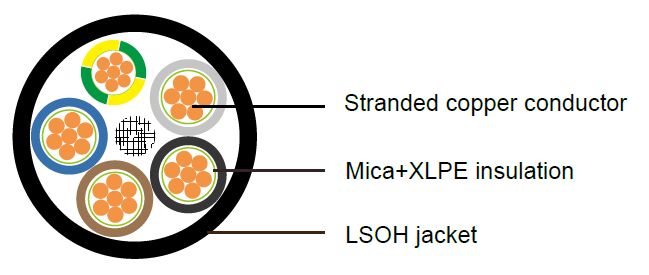

CONSTRUCTION:

Conductor:Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to NP 2363
Insulation: Mica tape + XLPE insulation
Colour Code :HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black LSOH outer jacket

PHYSICAL PROPERTIES:

Minimum bending radius: 12 x Ø
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C

ELECTRICAL PROPERTIES:

Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Halogen free: IEC 60754-1, EN 50267-2-1
No corrosive gases: IEC 60754-2, EN 50267-2-2
No toxic gases: NES 02-713, NF X 70-100
Low smoke density: IEC 61034, EN 50268-2
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating IEC 60332-3, EN 50266-2
Insulation resistance: 1000 MΩ x km

PARAMETERS:

No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km	No. of Cores x Nominal Cross Sectional Area # x mm²	Nominal Overall Diameter mm	Nominal Weight kg/km
1x10	9.5	150	4x1.5	12.5	190
1x16	10.5	210	4x2.5	13.5	240
1x25	12.0	310	4x4	15.0	325
1x35	13.0	405	4x6	16.0	410
1x50	14.5	530	4x10	18.0	595
1x70	16.5	805	4x16	2.1	850
1x95	18.0	995	3x16+1 G 10	20.0	800
1x120	20.0	1235	3x25+1x16	23.5	1205
1x150	21.5	1500	3x35+1x16	25.5	1525
1x185	24.0	1865	3x50+1x25	29.0	2050
1x240	27.0	2400	3x70+1x35	35.5	2870
1x300	29.5	3010	3x95+1x50	37.5	3875
2x1.5	11.0	140	3x120+1x70	42.5	4965
2x2.5	12.0	175	5x1.5	13.5	225
2x4	13.0	225	5x2.5	14.5	295
2x6	14.0	280	5x4	16.5	390
2x10	15.5	385	5x6	17.5	500
2x16	18.0	545	5x10	19.5	730
2x25	21.0	810	5x16	23.0	1055
3x1.5	11.5	160	3x25+2G16	25.5	1390
3x2.5	12.0	175	3x35+2G16	31.0	2320
3x4	14.0	270	3x50+2G25	27.0	3190
3x6	14.5	335	3x70+2G35	35.5	4525
3x10	16.5	480	3x95+2G50	41.5	5989
