FCVV日本JIS标准工业缆
应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。标准及认证

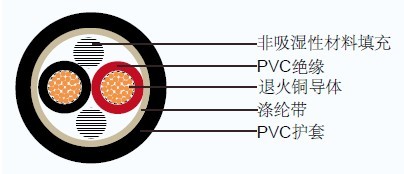

IEC 60502-1标准,JIS C 3401标准电缆结构
导体: 柔软多股退火铜导体, 0.5 mm2到6 mm2绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70℃回路电压不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
| 芯数 | 导体 | 绝缘厚度 | 护套厚度 | 线缆外径 | 20°c时的 导体电阻 |
70°c时的 绝缘电阻 |
线缆重量 | ||
|---|---|---|---|---|---|---|---|---|---|
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
| mm² | mm | mm | mm | mm | mm | Ohm / km | Ohm/km | kg / km | |
| 2 | 0.5 | 16/0.20 | 0.92 | 0.6 | 0.9 | 7.5 | 39.0 | 0.0130 | 50 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 8.5 | 26.0 | 0.0114 | 70 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 8.7 | 19.5 | 0.0104 | 80 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 9.3 | 13.3 | 0.0089 | 100 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.2 | 10.5 | 7.98 | 0.0081 | 140 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.2 | 12.0 | 4.95 | 0.0076 | 190 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 14.0 | 3.30 | 0.0061 | 280 | |
| 3 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 8.5 | 39.0 | 0.0130 | 70 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 8.9 | 26.0 | 0.0114 | 80 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 9.1 | 19.5 | 0.0104 | 100 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 9.8 | 13.3 | 0.0089 | 120 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.2 | 11.0 | 7.98 | 0.0081 | 170 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.2 | 13.0 | 4.95 | 0.0076 | 240 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 15.0 | 3.30 | 0.0061 | 350 | |
| 4 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 9.1 | 39.0 | 0.0130 | 80 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 9.6 | 26.0 | 0.0114 | 100 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 9.8 | 19.5 | 0.0104 | 120 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 10.5 | 13.3 | 0.0089 | 140 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.2 | 12.0 | 7.98 | 0.0081 | 210 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 14.5 | 4.95 | 0.0076 | 320 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 16.5 | 3.30 | 0.0061 | 440 | |
| 5 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 9.8 | 39.0 | 0.0130 | 100 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 10.0 | 26.0 | 0.0114 | 120 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 10.5 | 19.5 | 0.0104 | 140 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 11.5 | 13.3 | 0.0089 | 180 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 13.5 | 7.98 | 0.0081 | 270 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 15.5 | 4.95 | 0.0076 | 390 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 18.0 | 3.30 | 0.0061 | 540 | |
| 6 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 10.5 | 39.0 | 0.0130 | 110 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 11.0 | 26.0 | 0.0114 | 130 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 11.5 | 19.5 | 0.0104 | 150 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 12.0 | 13.3 | 0.0089 | 190 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 14.5 | 7.98 | 0.0081 | 290 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 17.0 | 4.95 | 0.0076 | 430 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 19.5 | 3.30 | 0.0061 | 590 | |
| 7 | 6 | 16/0.20 | 0.92 | 0.6 | 1.2 | 10.5 | 39.0 | 0.0130 | 110 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 11.0 | 26.0 | 0.0114 | 140 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 11.5 | 19.5 | 0.0104 | 160 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.2 | 12.0 | 13.3 | 0.0089 | 200 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 14.5 | 7.98 | 0.0081 | 320 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 17.0 | 4.95 | 0.0076 | 460 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 19.5 | 3.30 | 0.0061 | 640 | |
| 8 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 11.0 | 39.0 | 0.0130 | 130 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 11.5 | 26.0 | 0.0114 | 160 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.2 | 12.0 | 19.5 | 0.0104 | 180 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 13.5 | 13.3 | 0.0089 | 240 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 16.0 | 7.98 | 0.0081 | 360 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 18.0 | 4.95 | 0.0076 | 520 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 21.0 | 3.30 | 0.0061 | 730 | |
| 9 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 12.0 | 39.0 | 0.0130 | 140 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.2 | 12.5 | 26.0 | 0.0114 | 170 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 13.5 | 19.5 | 0.0104 | 220 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 14.5 | 13.3 | 0.0089 | 270 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 17.0 | 7.98 | 0.0081 | 400 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 20.0 | 4.95 | 0.0076 | 590 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.4 | 23.0 | 3.30 | 0.0061 | 830 | |
| 10 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 12.5 | 39.0 | 0.0130 | 150 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 14.0 | 26.0 | 0.0114 | 200 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 14.5 | 19.5 | 0.0104 | 240 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 15.5 | 13.3 | 0.0089 | 300 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 18.0 | 7.98 | 0.0081 | 440 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 21.0 | 4.95 | 0.0076 | 640 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 25.0 | 3.30 | 0.0061 | 950 | |
| 11 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 12.5 | 39.0 | 0.0130 | 170 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 14.0 | 26.0 | 0.0114 | 220 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 14.5 | 19.5 | 0.0104 | 260 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 15.5 | 13.3 | 0.0089 | 330 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 18.0 | 7.98 | 0.0081 | 490 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 21.0 | 4.95 | 0.0076 | 720 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 25.0 | 3.30 | 0.0061 | 1060 | |
| 12 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.2 | 13.0 | 39.0 | 0.0130 | 170 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 14.5 | 26.0 | 0.0114 | 230 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 15.0 | 19.5 | 0.0104 | 270 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 16.0 | 13.3 | 0.0089 | 340 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 19.0 | 7.98 | 0.0081 | 510 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 22.0 | 4.95 | 0.0076 | 750 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 26.0 | 3.30 | 0.0061 | 1110 | |
| 13 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 14.0 | 39.0 | 0.0130 | 200 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 15.0 | 26.0 | 0.0114 | 250 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 15.5 | 19.5 | 0.0104 | 300 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 17.0 | 13.3 | 0.0089 | 370 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 20.0 | 7.98 | 0.0081 | 560 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 23.0 | 4.95 | 0.0076 | 830 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 28.0 | 3.30 | 0.0061 | 1220 | |
| 14 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 14.0 | 39.0 | 0.0130 | 210 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 15.0 | 26.0 | 0.0114 | 260 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 15.5 | 19.5 | 0.0104 | 300 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 17.0 | 13.3 | 0.0089 | 390 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 20.0 | 7.98 | 0.0081 | 580 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.4 | 23.0 | 4.95 | 0.0076 | 860 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 28.0 | 3.30 | 0.0061 | 1270 | |
| 15 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 14.5 | 39.0 | 0.0130 | 230 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 15.5 | 26.0 | 0.0114 | 280 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 16.0 | 19.5 | 0.0104 | 330 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 17.5 | 13.3 | 0.0089 | 430 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 21.0 | 7.98 | 0.0081 | 640 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 25.0 | 4.95 | 0.0076 | 1000 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 29.0 | 3.30 | 0.0061 | 1390 | |
| 16 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 15.0 | 39.0 | 0.0130 | 230 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 15.5 | 26.0 | 0.0114 | 290 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 16.0 | 19.5 | 0.0104 | 340 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 17.5 | 13.3 | 0.0089 | 440 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 21.0 | 7.98 | 0.0081 | 660 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 25.0 | 4.95 | 0.0076 | 1030 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 29.0 | 3.30 | 0.0061 | 1440 | |
| 17 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 15.5 | 39.0 | 0.0130 | 260 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 16.5 | 26.0 | 0.0114 | 320 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.0 | 19.5 | 0.0104 | 370 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18.5 | 13.3 | 0.0089 | 480 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 22.0 | 7.98 | 0.0081 | 720 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 27.0 | 4.95 | 0.0076 | 1120 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 31.0 | 3.30 | 0.0061 | 1570 | |
| 18 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 15.5 | 39.0 | 0.0130 | 260 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 16.5 | 26.0 | 0.0114 | 320 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.0 | 19.5 | 0.0104 | 380 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18.5 | 13.3 | 0.0089 | 490 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 22.0 | 7.98 | 0.0081 | 740 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 27.0 | 4.95 | 0.0076 | 1150 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 31.0 | 3.30 | 0.0061 | 1620 | |
| 19 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 15.5 | 39.0 | 0.0130 | 260 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 16.5 | 26.0 | 0.0114 | 330 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.0 | 19.5 | 0.0104 | 390 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 18.5 | 13.3 | 0.0089 | 500 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 22.0 | 7.98 | 0.0081 | 760 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 27.0 | 4.95 | 0.0076 | 1190 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 31.0 | 3.30 | 0.0061 | 1670 | |
| 20 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 16.0 | 39.0 | 0.0130 | 290 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17.0 | 26.0 | 0.0114 | 360 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 17.5 | 19.5 | 0.0104 | 420 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 19.0 | 13.3 | 0.0089 | 540 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 23.0 | 7.98 | 0.0081 | 820 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 28.0 | 4.95 | 0.0076 | 1280 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 32.0 | 3.30 | 0.0061 | 1800 | |
| 21 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 16.5 | 39.0 | 0.0130 | 290 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 17.5 | 26.0 | 0.0114 | 360 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 18.0 | 19.5 | 0.0104 | 430 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 19.5 | 13.3 | 0.0089 | 550 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.4 | 23.0 | 7.98 | 0.0081 | 840 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 28.0 | 4.95 | 0.0076 | 1300 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 32.0 | 3.30 | 0.0061 | 1840 | |
| 22 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 17.0 | 39.0 | 0.0130 | 310 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 18.0 | 26.0 | 0.0114 | 390 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 18.5 | 19.5 | 0.0104 | 470 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 20.0 | 13.3 | 0.0089 | 600 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 25.0 | 7.98 | 0.0081 | 950 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 30.0 | 4.95 | 0.0076 | 1410 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 34.0 | 3.30 | 0.0061 | 1980 | |
| 23 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 17.0 | 39.0 | 0.0130 | 310 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 18.0 | 26.0 | 0.0114 | 390 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 18.5 | 19.5 | 0.0104 | 470 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 20.0 | 13.3 | 0.0089 | 600 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 25.0 | 7.98 | 0.0081 | 960 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 30.0 | 4.95 | 0.0076 | 1430 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 1.8 | 34.0 | 3.30 | 0.0061 | 2010 | |
| 24 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.0 | 39.0 | 0.0130 | 330 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 19.0 | 26.0 | 0.0114 | 410 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 19.5 | 19.5 | 0.0104 | 490 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 21.0 | 13.3 | 0.0089 | 620 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 26.0 | 7.98 | 0.0081 | 1000 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 31.0 | 4.95 | 0.0076 | 1480 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 37.0 | 3.30 | 0.0061 | 2160 | |
| 25 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.0 | 39.0 | 0.0130 | 350 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 19.0 | 26.0 | 0.0114 | 430 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 19.5 | 19.5 | 0.0104 | 520 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 21.0 | 13.3 | 0.0089 | 660 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 26.0 | 7.98 | 0.0081 | 1060 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 31.0 | 4.95 | 0.0076 | 1580 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 37.0 | 3.30 | 0.0061 | 2290 | |
| 26 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.0 | 39.0 | 0.0130 | 350 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 19.0 | 26.0 | 0.0114 | 440 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 19.5 | 19.5 | 0.0104 | 530 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 21.0 | 13.3 | 0.0089 | 680 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 26.0 | 7.98 | 0.0081 | 1080 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 31.0 | 4.95 | 0.0076 | 1610 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 37.0 | 3.30 | 0.0061 | 2340 | |
| 27 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 18.5 | 39.0 | 0.0130 | 360 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 19.5 | 26.0 | 0.0114 | 450 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 20.0 | 19.5 | 0.0104 | 530 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 22.0 | 13.3 | 0.0089 | 690 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 27.0 | 7.98 | 0.0081 | 1100 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 32.0 | 4.95 | 0.0076 | 1640 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 38.0 | 3.30 | 0.0061 | 2390 | |
| 28 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.0 | 39.0 | 0.0130 | 380 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 20.0 | 26.0 | 0.0114 | 480 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 21.0 | 19.5 | 0.0104 | 570 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 23.0 | 13.3 | 0.0089 | 730 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 28.0 | 7.98 | 0.0081 | 1170 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 33.0 | 4.95 | 0.0076 | 1740 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 39.0 | 3.30 | 0.0061 | 2530 | |
| 29 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.0 | 39.0 | 0.0130 | 380 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 20.0 | 26.0 | 0.0114 | 480 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 21.0 | 19.5 | 0.0104 | 580 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 23.0 | 13.3 | 0.0089 | 740 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 28.0 | 7.98 | 0.0081 | 1190 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 33.0 | 4.95 | 0.0076 | 1780 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 39.0 | 3.30 | 0.0061 | 2580 | |
| 30 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.0 | 39.0 | 0.0130 | 390 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 20.0 | 26.0 | 0.0114 | 490 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 21.0 | 19.5 | 0.0104 | 580 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.4 | 23.0 | 13.3 | 0.0089 | 760 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 28.0 | 7.98 | 0.0081 | 1210 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 33.0 | 4.95 | 0.0076 | 1810 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 39.0 | 3.30 | 0.0061 | 2630 | |
31 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.5 | 39.0 | 0.0130 | 410 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 520 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 620 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 24.0 | 13.3 | 0.0089 | 850 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 29.0 | 7.98 | 0.0081 | 1280 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 34.0 | 4.95 | 0.0076 | 1920 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 41.0 | 3.30 | 0.0061 | 2780 | |
32 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.5 | 39.0 | 0.0130 | 420 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 530 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 630 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 24.0 | 13.3 | 0.0089 | 860 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 29.0 | 7.98 | 0.0081 | 1300 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 34.0 | 4.95 | 0.0076 | 1950 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 41.0 | 3.30 | 0.0061 | 2830 | |
33 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 19.5 | 39.0 | 0.0130 | 420 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 530 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 640 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 24.0 | 13.3 | 0.0089 | 870 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 29.0 | 7.98 | 0.0081 | 1330 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 1.8 | 34.0 | 4.95 | 0.0076 | 1980 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 41.0 | 3.30 | 0.0061 | 2880 | |
34 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 20.0 | 39.0 | 0.0130 | 450 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 570 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 680 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 25.0 | 13.3 | 0.0089 | 920 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.0 | 7.98 | 0.0081 | 1400 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 37.0 | 4.95 | 0.0076 | 2160 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 42.0 | 3.30 | 0.0061 | 3030 | |
35 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 20.0 | 39.0 | 0.0130 | 450 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 570 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 680 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 25.0 | 13.3 | 0.0089 | 930 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.0 | 7.98 | 0.0081 | 1420 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 37.0 | 4.95 | 0.0076 | 2190 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 42.0 | 3.30 | 0.0061 | 3080 | |
36 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 20.0 | 39.0 | 0.0130 | 460 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 580 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 690 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 25.0 | 13.3 | 0.0089 | 950 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.0 | 7.98 | 0.0081 | 1440 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 37.0 | 4.95 | 0.0076 | 2220 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 42.0 | 3.30 | 0.0061 | 3140 | |
37 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 20.0 | 39.0 | 0.0130 | 460 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 21.0 | 26.0 | 0.0114 | 590 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 22.0 | 19.5 | 0.0104 | 700 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 25.0 | 13.3 | 0.0089 | 960 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 30.0 | 7.98 | 0.0081 | 1460 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 37.0 | 4.95 | 0.0076 | 2260 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 42.0 | 3.30 | 0.0061 | 3190 | |
38 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 21.0 | 39.0 | 0.0130 | 490 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 22.0 | 26.0 | 0.0114 | 620 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 23.0 | 19.5 | 0.0104 | 740 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 26.0 | 13.3 | 0.0089 | 1010 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.0 | 7.98 | 0.0081 | 1540 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 38.0 | 4.95 | 0.0076 | 2370 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 44.0 | 3.30 | 0.0061 | 3340 | |
39 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 21.0 | 39.0 | 0.0130 | 490 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 22.0 | 26.0 | 0.0114 | 620 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 23.0 | 19.5 | 0.0104 | 750 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 26.0 | 13.3 | 0.0089 | 1020 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.0 | 7.98 | 0.0081 | 1560 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 38.0 | 4.95 | 0.0076 | 2400 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 44.0 | 3.30 | 0.0061 | 3390 | |
40 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 21.0 | 39.0 | 0.0130 | 500 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 22.0 | 26.0 | 0.0114 | 630 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.4 | 23.0 | 19.5 | 0.0104 | 750 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 26.0 | 13.3 | 0.0089 | 1030 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 31.0 | 7.98 | 0.0081 | 1570 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 38.0 | 4.95 | 0.0076 | 2430 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 44.0 | 3.30 | 0.0061 | 3430 | |
| 41 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 530 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 23.0 | 26.0 | 0.0114 | 670 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 25.0 | 19.5 | 0.0104 | 850 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 27.0 | 13.3 | 0.0089 | 1100 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 33.0 | 7.98 | 0.0081 | 1670 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 40.0 | 4.95 | 0.0076 | 2580 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.0 | 3.30 | 0.0061 | 3630 | |
| 42 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 540 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 23.0 | 26.0 | 0.0114 | 680 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 25.0 | 19.5 | 0.0104 | 860 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 27.0 | 13.3 | 0.0089 | 1110 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 33.0 | 7.98 | 0.0081 | 1690 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 40.0 | 4.95 | 0.0076 | 2610 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.0 | 3.30 | 0.0061 | 3680 | |
| 43 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 540 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 23.0 | 26.0 | 0.0114 | 680 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 25.0 | 19.5 | 0.0104 | 860 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 27.0 | 13.3 | 0.0089 | 1120 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 33.0 | 7.98 | 0.0081 | 1700 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 40.0 | 4.95 | 0.0076 | 2620 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.2 | 46.0 | 3.30 | 0.0061 | 3700 | |
| 44 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 540 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 24.0 | 26.0 | 0.0114 | 690 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 26.0 | 19.5 | 0.0104 | 870 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 28.0 | 13.3 | 0.0089 | 1130 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 34.0 | 7.98 | 0.0081 | 1720 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 41.0 | 4.95 | 0.0076 | 2660 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.6 | 48.0 | 3.30 | 0.0061 | 3860 | |
| 45 | 0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 580 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 24.0 | 26.0 | 0.0114 | 730 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 26.0 | 19.5 | 0.0104 | 920 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 28.0 | 13.3 | 0.0089 | 1190 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 34.0 | 7.98 | 0.0081 | 1820 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 41.0 | 4.95 | 0.0076 | 2810 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.6 | 48.0 | 3.30 | 0.0061 | 4050 | |
46 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 570 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 24.0 | 26.0 | 0.0114 | 730 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 26.0 | 19.5 | 0.0104 | 920 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 28.0 | 13.3 | 0.0089 | 1190 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 34.0 | 7.98 | 0.0081 | 1820 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 41.0 | 4.95 | 0.0076 | 2810 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.6 | 48.0 | 3.30 | 0.0061 | 4060 | |
47 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 22.0 | 39.0 | 0.0130 | 580 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.4 | 24.0 | 26.0 | 0.0114 | 730 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 26.0 | 19.5 | 0.0104 | 930 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 28.0 | 13.3 | 0.0089 | 1200 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 34.0 | 7.98 | 0.0081 | 1840 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 41.0 | 4.95 | 0.0076 | 2850 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.6 | 48.0 | 3.30 | 0.0061 | 4120 | |
48 |
0.5 | 16/0.20 | 0.92 | 0.6 | 1.4 | 23.0 | 39.0 | 0.0130 | 580 |
| 0.75 | 24/0.20 | 1.13 | 0.6 | 1.8 | 25.0 | 26.0 | 0.0114 | 790 | |
| 1 | 32/0.20 | 1.31 | 0.6 | 1.8 | 26.0 | 19.5 | 0.0104 | 940 | |
| 1.5 | 30/0.25 | 1.58 | 0.6 | 1.8 | 29.0 | 13.3 | 0.0089 | 1210 | |
| 2.5 | 50/0.25 | 2.04 | 0.7 | 1.8 | 34.0 | 7.98 | 0.0081 | 1860 | |
| 4 | 56/0.30 | 2.59 | 0.8 | 2.2 | 42.0 | 4.95 | 0.0076 | 2880 | |
| 6 | 84/0.30 | 3.6 | 0.8 | 2.6 | 49.0 | 3.30 | 0.0061 | 4170 | |
JIS C 3401标准电缆
芯数 |
导体 | 绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
|---|---|---|---|---|---|---|---|---|---|
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
| mm² | mm | mm | mm | mm | mm | Ohm / km | Ohm/km | kg / km | |
| 2 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 11 | 19.5 | 0.05 | 87 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 11 | 13.3 | 0.05 | 100 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 12 | 7.98 | 0.05 | 128 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 13 | 4.95 | 0.05 | 163 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 15 | 3.3 | 0.05 | 227 | |
| 3 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 11 | 19.5 | 0.05 | 104 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 12 | 13.3 | 0.05 | 121 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 13 | 7.98 | 0.05 | 159 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 14 | 4.95 | 0.05 | 209 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 16 | 3.3 | 0.05 | 296 | |
| 4 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 12 | 19.5 | 0.05 | 124 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 13 | 13.3 | 0.05 | 147 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 14 | 7.98 | 0.05 | 196 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 15 | 4.95 | 0.05 | 260 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 17 | 3.3 | 0.05 | 372 | |
| 5 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 13 | 19.5 | 0.05 | 146 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 14 | 13.3 | 0.05 | 175 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 15 | 7.98 | 0.05 | 234 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 16 | 4.95 | 0.05 | 314 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 19 | 3.3 | 0.05 | 452 | |
| 6 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 14 | 19.5 | 0.05 | 168 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 14 | 13.3 | 0.05 | 203 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 16 | 7.98 | 0.05 | 273 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 17 | 4.95 | 0.05 | 369 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 20 | 3.3 | 0.05 | 534 | |
| 7 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 14 | 19.5 | 0.05 | 182 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 14 | 13.3 | 0.05 | 220 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 16 | 7.98 | 0.05 | 299 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 17 | 4.95 | 0.05 | 406 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 20 | 3.3 | 0.05 | 592 | |
| 8 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 14 | 19.5 | 0.05 | 205 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 15 | 13.3 | 0.05 | 248 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 17 | 7.98 | 0.05 | 340 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 18 | 4.95 | 0.05 | 464 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 21 | 3.3 | 0.05 | 677 | |
| 9 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 15 | 19.5 | 0.05 | 228 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 16 | 13.3 | 0.05 | 278 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 18 | 7.98 | 0.05 | 381 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 20 | 4.95 | 0.05 | 521 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.35 | 23 | 3.3 | 0.05 | 763 | |
| 10 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 16 | 19.5 | 0.05 | 257 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 18 | 13.3 | 0.05 | 312 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 19 | 7.98 | 0.05 | 429 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 21 | 4.95 | 0.05 | 585 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.44 | 25 | 3.3 | 0.05 | 868 | |
| 11 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 16 | 19.5 | 0.05 | 269 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 18 | 13.3 | 0.05 | 329 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 19 | 7.98 | 0.05 | 454 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 21 | 4.95 | 0.05 | 624 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.44 | 25 | 3.3 | 0.05 | 926 | |
| 12 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 17 | 19.5 | 0.05 | 288 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 18 | 13.3 | 0.05 | 353 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 20 | 7.98 | 0.05 | 489 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 22 | 4.95 | 0.05 | 673 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.53 | 26 | 3.3 | 0.05 | 1010 | |
| 13 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 18 | 19.5 | 0.05 | 311 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 19 | 13.3 | 0.05 | 382 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 21 | 7.98 | 0.05 | 529 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 23 | 4.95 | 0.05 | 730 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.53 | 29 | 3.3 | 0.05 | 1096 | |
| 14 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 18 | 19.5 | 0.05 | 324 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 19 | 13.3 | 0.05 | 399 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 21 | 7.98 | 0.05 | 555 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 23 | 4.95 | 0.05 | 767 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.53 | 28 | 3.3 | 0.05 | 1155 | |
| 15 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 18 | 19.5 | 0.05 | 349 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 20 | 13.3 | 0.05 | 429 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 22 | 7.98 | 0.05 | 598 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.35 | 24 | 4.95 | 0.05 | 828 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.53 | 29 | 3.3 | 0.05 | 1246 | |
| 16 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 18 | 19.5 | 0.05 | 362 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 20 | 13.3 | 0.05 | 446 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 22 | 7.98 | 0.05 | 623 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 24 | 4.95 | 0.05 | 875 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 29 | 3.3 | 0.05 | 1314 | |
| 17 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 19 | 19.5 | 0.05 | 365 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 21 | 13.3 | 0.05 | 451 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 23 | 7.98 | 0.05 | 633 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 25 | 4.95 | 0.05 | 891 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 31 | 3.3 | 0.05 | 1339 | |
| 18 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 19 | 19.5 | 0.05 | 381 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 21 | 13.3 | 0.05 | 471 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 23 | 7.98 | 0.05 | 662 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 25 | 4.95 | 0.05 | 935 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 31 | 3.3 | 0.05 | 1406 | |
| 19 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 19 | 19.5 | 0.05 | 396 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 21 | 13.3 | 0.05 | 491 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 23 | 7.98 | 0.05 | 692 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 25 | 4.95 | 0.05 | 979 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 31 | 3.3 | 0.05 | 1473 | |
| 20 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 20 | 19.5 | 0.05 | 417 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 21 | 13.3 | 0.05 | 517 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 24 | 7.98 | 0.05 | 729 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 26 | 4.95 | 0.05 | 1030 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 33 | 3.3 | 0.05 | 1563 | |
| 21 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 20 | 19.5 | 0.05 | 433 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 21 | 13.3 | 0.05 | 537 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 24 | 7.98 | 0.05 | 759 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 26 | 4.95 | 0.05 | 1074 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 33 | 3.3 | 0.05 | 1630 | |
| 22 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 21 | 19.5 | 0.05 | 454 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 22 | 13.3 | 0.05 | 563 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 25 | 7.98 | 0.05 | 795 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 28 | 4.95 | 0.05 | 1126 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 34 | 3.3 | 0.05 | 1709 | |
| 23 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 21 | 19.5 | 0.05 | 469 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 22 | 13.3 | 0.05 | 583 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.35 | 25 | 7.98 | 0.05 | 825 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.44 | 28 | 4.95 | 0.05 | 1169 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 34 | 3.3 | 0.05 | 1776 | |
| 24 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 22 | 19.5 | 0.05 | 492 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 24 | 13.3 | 0.05 | 610 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.44 | 27 | 7.98 | 0.05 | 873 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 30 | 4.95 | 0.05 | 1245 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 36 | 3.3 | 0.05 | 1857 | |
| 25 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 22 | 19.5 | 0.05 | 507 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 24 | 13.3 | 0.05 | 630 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.44 | 27 | 7.98 | 0.05 | 903 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 30 | 4.95 | 0.05 | 1289 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 36 | 3.3 | 0.05 | 1924 | |
| 26 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 22 | 19.5 | 0.05 | 522 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 24 | 13.3 | 0.05 | 650 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.44 | 27 | 7.98 | 0.05 | 933 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 30 | 4.95 | 0.05 | 1333 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 36 | 3.3 | 0.05 | 1991 | |
| 27 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 22 | 19.5 | 0.05 | 541 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 24 | 13.3 | 0.05 | 673 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.53 | 28 | 7.98 | 0.05 | 977 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 31 | 4.95 | 0.05 | 1381 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 37 | 3.3 | 0.05 | 2064 | |
| 28 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 23 | 19.5 | 0.05 | 561 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 25 | 13.3 | 0.05 | 698 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.53 | 29 | 7.98 | 0.05 | 1013 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 32 | 4.95 | 0.05 | 1444 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 38 | 3.3 | 0.05 | 2141 | |
| 29 | 1 | 36/0.19 | 1.35 | 0.72 | 1.35 | 23 | 19.5 | 0.05 | 576 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.35 | 25 | 13.3 | 0.05 | 718 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.53 | 29 | 7.98 | 0.05 | 1043 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 32 | 4.95 | 0.05 | 1488 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 38 | 3.3 | 0.05 | 2208 | |
| 30 | 1 | 36/0.19 | 1.35 | 0.72 | 1.44 | 23 | 19.5 | 0.05 | 600 |
| 1.5 | 36/0.23 | 1.65 | 0.72 | 1.44 | 25 | 13.3 | 0.05 | 747 | |
| 2.5 | 60/0.23 | 2.15 | 0.72 | 1.53 | 29 | 7.98 | 0.05 | 1073 | |
| 4 | 56/0.29 | 2.65 | 0.72 | 1.62 | 32 | 4.95 | 0.05 | 1532 | |
| 6 | 84/0.29 | 3.4 | 0.9 | 1.62 | 38 | 3.3 | 0.05 | 2274 | |
© 2021 Caledonian Cables 鲁ICP备16049315号-1
