JIS C 3605标准工业电缆
EE/F(EM-EE) CE/F(EM-CE)

应用及描述:

此电缆一般用于在干燥或潮湿环境中的电力分配,可露天安装,也可通过管道安装,或直埋于地下.

Name Code:

E: 聚乙烯
C: 交联聚乙烯
/F: 阻燃聚乙烯

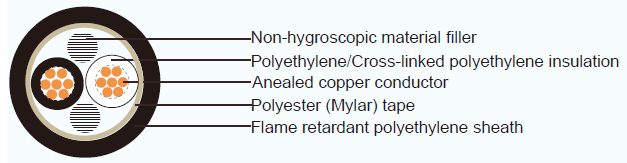

电缆结构:

JIS C 3605 工业电缆 EE/F(EM-EE) CE/F(EM-CE)

导体: Circular, circuar or segmental compacted stranded annealed copper wires
Seperator: A proper separator may be applied to a conductor
绝缘:聚乙烯/交联聚乙烯
颜色:2芯-黑色, 白色
3芯-黑色, 白色, 红色
4芯-黑色, 白色, 红色,绿色
填充: 非吸湿性材料(可选)
粘合带: 涤纶带(麦拉) (可选)
护套:阻燃聚乙烯,黑色

技术特性:

最大导体温度 90℃
回路电缆不超过 600 V

电缆参数:

芯数 标称截面积 股数/直径 导体直径(大约) 绝缘厚度 护套厚度 线缆外径 测试电压 20°C时,导体的最大直流电阻 线缆重量
mm² mm mm mm mm V Ohm / km kg / km
1 2 7/0.6 1.8 0.8 1.5 6.4 9.24 1500 55
3.5 7/0.8 2.4 0.8 1.5 7.0 5.2 1500 75
5.5 7/1.0 3.0 1.0 1.5 8.0 3.33 1500 105
8 7/1.2 3.6 1.0 1.5 8.6 2.31 1500 130
8 compacted 3.4 1.0 1.5 8.4 2.29 1500 130
14 7/1.6 4.8 1.0 1.5 9.8 1.31 2000 200
14 compactcd 4.4 1.0 1.5 9.4 1.30 2000 195
22 7/2.0 6.0 1.2 1.5 11.5 0.824 2000 290
22 compacted 5.5 1.2 1.5 11.0 0.832 2000 280
38 7/2.6 7.8 1.2 1.5 13.5 0.487 2500 450
38 compacted 7.3 1.2 1.5 13.0 0.481 2500 445
60 19/2.0 10.0 1.5 1.5 16.0 0.303 2500 690
60 compacted 9.3 1.5 1.5 15.5 0.305 2500 675
100 19/2.6 13.0 2.0 1.5 20.0 0.180 2500 1130
100 compacted 12.0 2.0 1.5 19.0 0.183 2500 1100
150 37/2.3 16.1 2.0 1.5 24.5 0.118 3000 1660
150 compacted 14.7 2.0 1.5 22.5 0.122 3000 1590
200 37/2.6 18.2 2.5 1.7 27.5 0.0922 3000 2120
200 compacted 17.0 2.5 1.7 26.5 0.0915 3000 2130
250 61/2.3 20.7 2.5 1.8 30.0 0.0722 3000 2710
250 compacted 19.0 2.5 1.8 28.5 0.0739 3000 2640
325 61/2.6 23.4 2.5 1.9 33.5 0.0565 3000 3420
325 compacted 21.7 2.5 1.9 31.5 0.0568 3000 3380
400 61/2.9 26.1 2.5 2.0 34.5 0.0373 3000 4200
400 compacted 24.1 2.5 2.0 34.5 0.0369 3000 4130
500 61/3.2 28.8 3.0 2.1 40.0 0.0304 3500 5150
500 compacted 26.9 3.0 2.1 43.0 0.0308 3500 5160
600 91/2.9 31.9 3.0 2.3 41.0 0.0369 3500 6230
600 compacted 29.5 3.0 2.2 38.5 0.0369 3500 6130
800 127/2.8 36.4 3.5 2.5 49 0.0234 3500 8100
800 compacted 34.0 3.5 2.5 47.5 0.0231 3500 8150
1 800 segmental
compacted
34.0 3.5 2.5 47.5 0.0231 3500 8150
1000 127/3.2 41.6 3.5 2.6 54.0 0.0179 3500 10500
1000 compacted 38.0 3.5 2.6 51.5 0.0185 3500 10200
1000 segmental
compacted
38.0 3.5 2.6 51.5 0.0187 3500 10100
2 2 7/0.6 1.8 0.8 1.5 10.5 9.42 1500 115
3.5 7/0.8 2.4 0.8 1.5 11.5 5.3 1500 160
5.5 7/1.0 3.0 1.0 1.5 13.5 3.4 1500 225
8 7/1.2 3.6 1.0 1.5 15.0 2.36 1500 290
8 compacted 3.4 1.0 1.5 14.5 2.34 1500 280
14 7/1.6 4.8 1.0 1.5 17.5 1.33 2000 440
14 compactcd 4.4 1.0 1.5 16.5 1.34 2000 425
22 7/2.0 6.0 1.2 1.5 21.0 0.840 2000 650
22 compacted 5.5 1.2 1.5 19.5 0.849 2000 620
38 7/2.6 7.8 1.2 1.5 24.0 0.497 2500 1010
38 compacted 7.3 1.2 1.5 24.0 0.491 2500 990
60 19/2.0 10.0 1.5 1.5 31.0 0.309 2500 1590
60 compacted 9.3 1.5 1.5 29.0 0.311 2500 1540
100 19/2.6 13.0 2.0 1.5 39.0 0.184 2500 2650
100 compacted 12.0 2.0 1.5 37.0 0.187 2500 2540
150 37/2.3 16.1 2.0 1.5 46.0 0.124 3000 3860
150 compacted 14.7 2.0 1.5 43.0 0.120 3000 3660
200 37/2.6 18.2 2.5 1.7 53.0 0.0940 3000 4980
200 compacted 17.0 2.5 1.7 50.0 0.0933 3000 4910
250 61/2.3 20.7 2.5 1.8 58.0 0.0736 3000 6320
250 compacted 19.0 2.5 1.8 54.0 0.0754 3000 6040
325 61/2.6 23.4 2.5 1.9 64.0 0.0576 3000 7930
325 compacted 21.7 2.5 1.9 60.0 0.0579 3000 7730
3 2 7/0.6 1.8 0.8 1.5 11.0 9.42 1500 140
3.5 7/0.8 2.4 0.8 1.5 12.5 5.3 1500 200
5.5 7/1.0 3.0 1.0 1.5 14.5 3.4 1500 290
8 7/1.2 3.6 1.0 1.5 16.0 2.36 1500 380
8 compacted 3.4 1.0 1.5 15.5 2.34 1500 370
14 7/1.6 4.8 1.0 1.5 18.5 1.33 2000 585
3 14 compactcd 4.4 1.0 1.5 17.5 1.34 2000 570
22 7/2.0 6.0 1.2 1.5 22.0 0.840 2000 875
22 compacted 5.5 1.2 1.5 21.0 0.849 2000 845
38 7/2.6 7.8 1.2 1.5 26.0 0.497 2500 I 390
38 compacted 7.3 1.2 1.5 25.0 0.491 2500 I380
60 19/2.0 10.0 1.5 1.5 33.0 0.309 2500 2180
60 compacted 9.3 1.5 1.5 31.0 0.311 2500 2140
100 19/2.6 13.0 2.0 1.5 42.0 0.184 2500 3670
100 compacted 12.0 2.0 1.5 40.0 0.187 2500 3540
150 37/2.3 16.1 2.0 1.5 49.0 0.124 3000 5390
150 compacted 14.7 2.0 1.5 46.0 0.120 3000 5120
200 37/2.6 18.2 2.5 1.7 57.0 0.0940 3000 6920
200 compacted 17.0 2.5 1.7 54.0 0.0933 3000 6860
250 61/2.3 20.7 2.5 1.8 62.0 0.0736 3000 8810
250 compacted 19.0 2.5 1.8 58.0 0.0754 3000 8500
325 61/2.6 23.4 2.5 1.9 94.0 0.0576 3000 11200
325 compacted 21.7 2.5 1.9 65.0 0.0579 3000 10900
4 2.5 7/0.6 1.8 0.8 1.5 12.0 9.42 1500 170
3.5 7/0.8 2.4 0.8 1.5 13.5 5.3 1500 250
5.5 7/1.0 3.0 1.0 1.5 16.0 3.4 1500 360
8 7/1.2 3.6 1.0 1.5 17.0 2.36 1500 475
8 compacted 3.4 1.0 1.5 16.5 2.34 1500 465
14 7/1.6 4.8 1.0 1.5 20.0 1.33 2000 750
14 compactcd 4.4 1.0 1.5 19.0 1.34 2000 730
22 7/2.0 6.0 1.2 1.5 24 0.840 2000 1140
22 compacted 5.5 1.2 1.5 23 0.849 2000 1100
38 7/2.6 7.8 1.2 1.5 29 0.497 2500 1810
38 compacted 7.3 1.2 1.5 28 0.491 2500 1800
60 19/2.0 10.0 1.5 1.5 37 0.309 2500 2860
60 compacted 9.3 1.5 1.5 35 0.311 2500 2790
100 19/2.6 13.0 2.0 1.5 47 0.184 2500 4790
100 compacted 12.0 2.0 1.5 44 0.187 2500 4630
150 37/2.3 16.1 2.0 1.5 55 0.124 3000 7050
4 150 compacted 14.7 2.0 1.5 SI 0.120 3000 6710
200 37/2.6 18.2 2.5 1.7 63 0.0940 3000 9070
200 compacted 17.0 2.5 1.7 60 0.0933 3000 8990
250 61/2.3 20.7 2.5 1.8 70 0.0736 3000 11600
250 compacted 19.0 2.5 1.8 65 0.0754 3000 11200
325 61/2.6 23.4 2.5 1.9 77 0.0576 3000 14600
325 compacted 21.7 2.5 1.9 72 0.0579 3000 14300
