CVV
应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。标准及认证

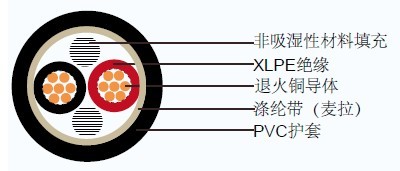

IEC 60502-1标准,JIS C 3401标准电缆结构
导体: 同心多股退火铜导体, 0.5 mm2到6 mm2绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70℃回路电压不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
| 芯数 | 导体 | 绝缘厚度 | 护套厚度 | 线缆外径 | 20°c时的导体电阻 | 70°c时的绝缘电阻 | 线缆重量 | ||
|---|---|---|---|---|---|---|---|---|---|
| 标称导体截面积 | 股数/直径 | 直径 | |||||||
| mm² | mm | mm | mm | mm | mm | Ohm / km | Ohm/km | kg / km | |
| 2 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 9.5 | 36 | 0.0162 | 100 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 10 | 24.5 | 0.0142 | 110 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 10.5 | 18.1 | 0.0128 | 120 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 11 | 12.1 | 0.0112 | 140 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 12 | 7.41 | 0.0093 | 180 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 14 | 4.61 | 0.0092 | 250 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 15.5 | 3.08 | 0.0078 | 310 | |
| 3 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 10 | 36 | 0.0162 | 110 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 10.5 | 24.5 | 0.0142 | 130 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 11 | 18.1 | 0.0128 | 140 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 12 | 12.1 | 0.0112 | 170 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 13 | 7.41 | 0.0093 | 210 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 15 | 4.61 | 0.0092 | 310 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 16 | 3.08 | 0.0078 | 390 | |
| 4 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 11 | 36 | 0.0162 | 130 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 11.5 | 24.5 | 0.0142 | 150 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 12 | 18.1 | 0.0128 | 170 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 12.5 | 12.1 | 0.0112 | 200 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 14 | 7.41 | 0.0093 | 260 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 16 | 4.61 | 0.0092 | 380 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 17.5 | 3.08 | 0.0078 | 490 | |
| 5 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 12 | 36 | 0.0162 | 150 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 12.5 | 24.5 | 0.0142 | 180 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 13 | 18.1 | 0.0128 | 200 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 13.5 | 12.1 | 0.0112 | 240 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 15 | 7.41 | 0.0093 | 320 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 17.5 | 4.61 | 0.0092 | 470 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 19 | 3.08 | 0.0078 | 600 | |
| 6 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 12.5 | 36 | 0.0162 | 160 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 13.5 | 24.5 | 0.0142 | 190 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 14 | 18.1 | 0.0128 | 220 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 14.5 | 12.1 | 0.0112 | 260 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 16 | 7.41 | 0.0093 | 340 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 19 | 4.61 | 0.0092 | 510 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 20.5 | 3.08 | 0.0078 | 660 | |
| 7 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 12.5 | 36 | 0.0162 | 170 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 13.5 | 24.5 | 0.0142 | 200 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 14 | 18.1 | 0.0128 | 230 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 14.5 | 12.1 | 0.0112 | 270 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 16 | 7.41 | 0.0093 | 370 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 19 | 4.61 | 0.0092 | 540 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 20.5 | 3.08 | 0.0078 | 720 | |
| 8 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 13.5 | 36 | 0.0162 | 190 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 14 | 24.5 | 0.0142 | 220 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 15 | 18.1 | 0.0128 | 250 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 15.5 | 12.1 | 0.0112 | 310 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 17 | 7.41 | 0.0093 | 410 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 20.5 | 4.61 | 0.0092 | 610 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 22.5 | 3.08 | 0.0078 | 810 | |
| 9 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 14.5 | 36 | 0.0162 | 210 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 15 | 24.5 | 0.0142 | 250 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 16 | 18.1 | 0.0128 | 280 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 17 | 12.1 | 0.0112 | 340 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 18.5 | 7.41 | 0.0093 | 460 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 22 | 4.61 | 0.0092 | 690 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 24 | 3.08 | 0.0078 | 920 | |
| 10 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 15.5 | 36 | 0.0162 | 230 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 16 | 24.5 | 0.0142 | 270 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 17 | 18.1 | 0.0128 | 310 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 18 | 12.1 | 0.0112 | 370 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 20 | 7.41 | 0.0093 | 510 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 24 | 4.61 | 0.0092 | 760 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 26 | 3.08 | 0.0078 | 1000 | |
| 11 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 16 | 36 | 0.0162 | 250 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 16.5 | 24.5 | 0.0142 | 290 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 17.5 | 18.1 | 0.0128 | 340 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 18.5 | 12.1 | 0.0112 | 410 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 0.0093 | 560 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 24.5 | 4.61 | 0.0092 | 840 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 27 | 3.08 | 0.0078 | 1120 | |
| 12 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 16 | 36 | 0.0162 | 250 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 16.5 | 24.5 | 0.0142 | 300 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 17.5 | 18.1 | 0.0128 | 350 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 18.5 | 12.1 | 0.0112 | 430 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 20.5 | 7.41 | 0.0093 | 580 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 24.5 | 4.61 | 0.0092 | 880 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 27 | 3.08 | 0.0078 | 1170 | |
| 13 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 16.5 | 36 | 0.0162 | 280 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 17.5 | 24.5 | 0.0142 | 330 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 18.5 | 18.1 | 0.0128 | 380 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 19.5 | 12.1 | 0.0112 | 470 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 21.5 | 7.41 | 0.0093 | 640 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 26 | 4.61 | 0.0092 | 970 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 28.5 | 3.08 | 0.0078 | 1290 | |
| 14 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 16.5 | 36 | 0.0162 | 280 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 17.5 | 24.5 | 0.0142 | 340 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 18.5 | 18.1 | 0.0128 | 390 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 19.5 | 12.1 | 0.0112 | 480 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 21.5 | 7.41 | 0.0093 | 660 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 26 | 4.61 | 0.0092 | 1000 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 28.5 | 3.08 | 0.0078 | 1340 | |
| 15 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 310 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 18.5 | 24.5 | 0.0142 | 370 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 19 | 18.1 | 0.0128 | 430 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 20.5 | 12.1 | 0.0112 | 530 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 22.5 | 7.41 | 0.0093 | 730 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 27 | 4.61 | 0.0092 | 1100 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 30 | 3.08 | 0.0078 | 1480 | |
| 16 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 17.5 | 36 | 0.0162 | 320 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 18.5 | 24.5 | 0.0142 | 380 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 19 | 18.1 | 0.0128 | 440 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 20.5 | 12.1 | 0.0112 | 540 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 22.5 | 7.41 | 0.0093 | 750 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 27 | 4.61 | 0.0092 | 1140 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 30 | 3.08 | 0.0078 | 1530 | |
| 17 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 18 | 36 | 0.0162 | 340 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 19 | 24.5 | 0.0142 | 410 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 20 | 18.1 | 0.0128 | 480 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 21.5 | 12.1 | 0.0112 | 590 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 23.5 | 7.41 | 0.0093 | 820 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 28.5 | 4.61 | 0.0092 | 1240 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.9 | 31.5 | 3.08 | 0.0078 | 1660 | |
| 18 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 18 | 36 | 0.0162 | 350 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 19 | 24.5 | 0.0142 | 420 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 20 | 18.1 | 0.0128 | 490 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 21.5 | 12.1 | 0.0112 | 610 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 23.5 | 7.41 | 0.0093 | 840 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 28.5 | 4.61 | 0.0092 | 1280 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 31.5 | 3.08 | 0.0078 | 1720 | |
| 19 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 18 | 36 | 0.0162 | 360 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 19 | 24.5 | 0.0142 | 430 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 20 | 18.1 | 0.0128 | 500 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 21.5 | 12.1 | 0.0112 | 620 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 23.5 | 7.41 | 0.0093 | 860 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 28.5 | 4.61 | 0.0092 | 1310 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.8 | 31.5 | 3.08 | 0.0078 | 1770 | |
| 20 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 19 | 36 | 0.0162 | 380 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 20 | 24.5 | 0.0142 | 460 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 21 | 18.1 | 0.0128 | 540 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 22.5 | 12.1 | 0.0112 | 670 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 25 | 7.41 | 0.0093 | 930 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 30 | 4.61 | 0.0092 | 1420 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.9 | 33.5 | 3.08 | 0.0078 | 1920 | |
| 21 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 19 | 36 | 0.0162 | 390 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 20 | 24.5 | 0.0142 | 470 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 21 | 18.1 | 0.0128 | 550 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 22.5 | 12.1 | 0.0112 | 680 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 25 | 7.41 | 0.0093 | 940 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.8 | 30 | 4.61 | 0.0092 | 1440 | |
| 6 | 7/1.04 | 3.12 | 1 | 1.9 | 33.5 | 3.08 | 0.0078 | 1960 | |
| 22 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 20 | 36 | 0.0162 | 420 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 21 | 24.5 | 0.0142 | 510 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 22 | 18.1 | 0.0128 | 590 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 23.5 | 12.1 | 0.0112 | 740 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 26 | 7.41 | 0.0093 | 1030 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 32 | 4.61 | 0.0092 | 1580 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 35.5 | 3.08 | 0.0078 | 2140 | |
| 23 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 20 | 36 | 0.0162 | 430 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 21 | 24.5 | 0.0142 | 520 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 22 | 18.1 | 0.0128 | 600 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 23.5 | 12.1 | 0.0112 | 750 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 26 | 7.41 | 0.0093 | 1050 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 32 | 4.61 | 0.0092 | 1620 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 35.5 | 3.08 | 0.0078 | 2190 | |
| 24 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 21 | 36 | 0.0162 | 440 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 22 | 24.5 | 0.0142 | 530 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 23 | 18.1 | 0.0128 | 620 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 25 | 12.1 | 0.0112 | 770 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 27.5 | 7.41 | 0.0093 | 1070 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 34 | 4.61 | 0.0092 | 1660 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 37.5 | 3.08 | 0.0078 | 2250 | |
| 25 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 21.5 | 36 | 0.0162 | 460 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 22.5 | 24.5 | 0.0142 | 560 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 23.5 | 18.1 | 0.0128 | 660 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 25.5 | 12.1 | 0.0112 | 820 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 28 | 7.41 | 0.0093 | 1140 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 34.5 | 4.61 | 0.0092 | 1760 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 38.5 | 3.08 | 0.0078 | 2390 | |
| 26 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 21.5 | 36 | 0.0162 | 470 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 22.5 | 24.5 | 0.0142 | 570 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 23.5 | 18.1 | 0.0128 | 670 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 25.5 | 12.1 | 0.0112 | 830 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 28 | 7.41 | 0.0093 | 1160 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 34.5 | 4.61 | 0.0092 | 1800 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 38.5 | 3.08 | 0.0078 | 2440 | |
| 27 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 21.5 | 36 | 0.0162 | 480 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 22.5 | 24.5 | 0.0142 | 580 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 23.5 | 18.1 | 0.0128 | 680 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 25.5 | 12.1 | 0.0112 | 840 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 28 | 7.41 | 0.0093 | 1190 | |
| 4 | 7/0.85 | 2.55 | 1 | 1.9 | 34.5 | 4.61 | 0.0092 | 1830 | |
| 6 | 7/1.04 | 3.12 | 1 | 2 | 38.5 | 3.08 | 0.0078 | 2500 | |
| 28 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 22 | 36 | 0.0162 | 500 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 23.5 | 24.5 | 0.0142 | 610 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 24.5 | 18.1 | 0.0128 | 720 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 26.5 | 12.1 | 0.0112 | 900 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 29 | 7.41 | 0.0093 | 1260 | |
| 4 | 7/0.85 | 2.55 | 1 | 2 | 36 | 4.61 | 0.0092 | 1960 | |
| 6 | 7/1.04 | 3.12 | 1 | 2.1 | 40 | 3.08 | 0.0078 | 2660 | |
| 29 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 22 | 36 | 0.0162 | 510 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 23.5 | 24.5 | 0.0142 | 620 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 24.5 | 18.1 | 0.0128 | 730 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 26.5 | 12.1 | 0.0112 | 910 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 29 | 7.41 | 0.0093 | 1280 | |
| 4 | 7/0.85 | 2.55 | 1 | 2 | 36 | 4.61 | 0.0092 | 2000 | |
| 6 | 7/1.04 | 3.12 | 1 | 2.1 | 40 | 3.08 | 0.0078 | 2720 | |
| 30 | 0.5 | 7/0.30 | 0.9 | 0.8 | 1.8 | 22 | 36 | 0.0162 | 520 |
| 0.75 | 7/0.37 | 1.11 | 0.8 | 1.8 | 23.5 | 24.5 | 0.0142 | 630 | |
| 1 | 7/0.43 | 1.29 | 0.8 | 1.8 | 24.5 | 18.1 | 0.0128 | 740 | |
| 1.5 | 7/0.52 | 1.56 | 0.8 | 1.8 | 26.5 | 12.1 | 0.0112 | 930 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 29 | 7.41 | 0.0093 | 1300 | |
| 4 | 7/0.85 | 2.55 | 1 | 2 | 36 | 4.61 | 0.0092 | 2030 | |
| 6 | 7/1.04 | 3.12 | 1 | 2.1 | 40 | 3.08 | 0.0078 | 2770 | |
JIS C 3401标准电缆
芯数 |
导体 |
绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
mm² |
mm | mm |
mm |
mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
86 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
11 |
13.3 |
0.05 |
103 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
12 |
7.98 |
0.05 |
132 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
13 |
4.95 |
0.05 |
174 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
15 |
3.3 |
0.05 |
241 |
|
| 3 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
103 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
12 |
13.3 |
0.05 |
126 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
13 |
7.98 |
0.05 |
166 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
14 |
4.95 |
0.05 |
225 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
16 |
3.3 |
0.05 |
315 |
|
| 4 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
12 |
19.5 |
0.05 |
124 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
13 |
13.3 |
0.05 |
153 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
14 |
7.98 |
0.05 |
205 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
15 |
4.95 |
0.05 |
281 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
17 |
3.3 |
0.05 |
398 |
|
| 5 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
13 |
19.5 |
0.05 |
145 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
182 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
15 |
7.98 |
0.05 |
246 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
16 |
4.95 |
0.05 |
338 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
19 |
3.3 |
0.05 |
484 |
|
| 6 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
168 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
211 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
288 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
399 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
573 |
|
| 7 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
181 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
230 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
316 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
442 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
637 |
|
| 8 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
205 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
15 |
13.3 |
0.05 |
260 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
17 |
7.98 |
0.05 |
359 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
19 |
4.95 |
0.05 |
503 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
22 |
3.3 |
0.05 |
727 |
|
| 9 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
15 |
19.5 |
0.05 |
228 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
16 |
13.3 |
0.05 |
290 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
18 |
7.98 |
0.05 |
403 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
20 |
4.95 |
0.05 |
566 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
23 |
3.3 |
0.05 |
819 |
|
| 10 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
256 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
17 |
13.3 |
0.05 |
326 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
452 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
635 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
931 |
|
| 11 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
268 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
17 |
13.3 |
0.05 |
345 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
480 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
677 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
996 |
|
| 12 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
288 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
18 |
13.3 |
0.05 |
369 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
20 |
7.98 |
0.05 |
517 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
22 |
4.95 |
0.05 |
732 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
26 |
3.3 |
0.05 |
1085 |
|
| 13 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
311 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
400 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
560 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
794 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
28 |
3.3 |
0.05 |
1178 |
|
| 14 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
324 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
418 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
588 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
836 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
28 |
3.3 |
0.05 |
1242 |
|
| 15 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
349 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
450 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
634 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
24 |
4.95 |
0.05 |
902 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
29 |
3.3 |
0.05 |
1339 |
|
| 16 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
361 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
469 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
662 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
24 |
4.95 |
0.05 |
953 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
30 |
3.3 |
0.05 |
1414 |
|
| 17 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
366 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
476 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
674 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
974 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1444 |
|
| 18 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
382 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
497 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
706 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1022 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1517 |
|
| 19 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
397 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
519 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
739 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1070 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1590 |
|
| 20 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
418 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
546 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
778 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
27 |
4.95 |
0.05 |
1127 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1686 |
|
| 21 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
434 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
568 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
810 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
27 |
4.95 |
0.05 |
1175 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1759 |
|
| 22 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
455 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
595 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
849 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1232 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1844 |
|
| 23 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
470 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
617 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
881 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1280 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1917 |
|
| 24 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
493 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
646 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
932 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1362 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2005 |
|
| 25 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
508 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
667 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
964 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1410 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2078 |
|
| 26 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
524 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
689 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
996 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1458 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2151 |
|
| 27 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
542 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
713 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
27 |
7.98 |
0.05 |
1042 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
31 |
4.95 |
0.05 |
1511 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
37 |
3.3 |
0.05 |
2230 |
|
| 28 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
562 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
740 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1081 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1580 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2312 |
|
29 |
1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
578 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
761 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1113 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1628 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2385 |
|
30 |
1 |
7/0.43 |
1.29 |
0.72 |
1.44 |
23 |
19.5 |
0.05 |
602 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.44 |
25 |
13.3 |
0.05 |
792 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1146 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1677 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2458 |
|
