CVV-I/C SB
应用及描述：
用于0.6/1kV控制或监控电路的电信号传输。
CVV-I/C SB参考标准:
IEC 60502-1

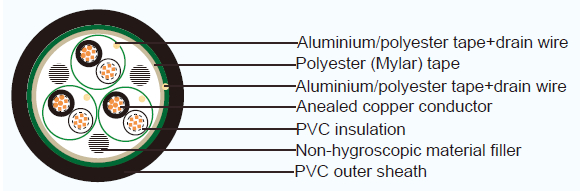

电缆结构：
导体： 同心多股退火铜导体, Sizes: 1.0 mm2 up to 2.5 mm2 绝缘： 聚氯乙烯 (PVC)
颜色：黑色和白色线芯加数字标注?
Pairing: Two insulated conductors uniformly twisted together
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire.
填充: 非吸湿性材料(可选) 粘合带: 涤纶带（麦拉） (可选)
Overall Screen 1: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire.
Overall Screen 2: Annealed copper braid.
护套: 聚氯乙烯 (PVC),黑色 (其他颜色可按要求提供)
技术特性：
最大导体温度 70℃
回路电缆不超过 600 V
测试电压: 3500 volts
电缆参数：
| No. of Pairs | 导体 |
绝缘厚度 |
护套厚度 | 线缆外径 |
最大导体电阻 (at 20°c) |
线缆重量 | ||
|---|---|---|---|---|---|---|---|---|
| 标称截面积 | 股数/直径 | 直径 | ||||||
| mm2 | mm | mm | mm | mm | mm | Ohm/km | kg/km | |
| 1 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 9.5 | 18.1 | 110 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 10.5 | 12.1 | 130 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 11.5 | 7.41 | 160 | |
| 2 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 16.5 | 18.1 | 230 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 18.0 | 12.3 | 290 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 20.0 | 7.56 | 360 | |
| 3 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 17.0 | 18.1 | 270 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 19.5 | 12.3 | 350 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 21.0 | 7.56 | 440 | |
| 4 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 18.5 | 18.1 | 320 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 21.0 | 12.3 | 420 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 23.0 | 7.56 | 530 | |
| 5 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 21.0 | 18.1 | 370 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 23.0 | 12.3 | 500 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 25.0 | 7.56 | 640 | |
| 6 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 22.0 | 18.1 | 430 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 25.0 | 12.3 | 590 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 27.5 | 7.56 | 750 | |
| 7 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 22.0 | 18.1 | 460 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 25.0 | 12.3 | 620 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.8 | 27.5 | 7.56 | 800 | |
| 8 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 24.0 | 18.1 | 520 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.8 | 27.0 | 12.3 | 710 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 1.9 | 30.0 | 7.56 | 930 | |
| 9 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 25.5 | 18.1 | 590 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 1.9 | 29.0 | 12.3 | 820 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.0 | 32.5 | 7.56 | 1070 | |
| 10 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 27.5 | 18.1 | 670 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.0 | 32.0 | 12.3 | 950 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.1 | 35.5 | 7.56 | 1240 | |
| 11 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 17.5 | 18.1 | 690 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.0 | 32.0 | 12.3 | 990 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.1 | 35.5 | 7.56 | 1300 | |
| 12 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 29.0 | 18.1 | 750 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.0 | 33.0 | 12.3 | 1,060 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.1 | 36.5 | 7.56 | 1,390 | |
| 13 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 29.5 | 18.1 | 790 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.0 | 33.5 | 12.3 | 1,110 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.2 | 37.5 | 7.56 | 1,480 | |
| 14 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 30.5 | 18.1 | 840 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.1 | 35.0 | 12.3 | 1,200 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.2 | 39.0 | 7.56 | 1,580 | |
| 15 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 31.0 | 18.1 | 880 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.1 | 36.0 | 12.3 | 1,270 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.2 | 40.0 | 7.56 | 1,680 | |
| 16 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 32.0 | 18.1 | 950 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.1 | 37.0 | 12.3 | 1,340 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.3 | 41.0 | 7.56 | 1,790 | |
| 17 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 33.0 | 18.1 | 1,000 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.2 | 38.0 | 12.3 | 1,440 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.3 | 42.5 | 7.56 | 1,890 | |
| 18 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 34.0 | 18.1 | 1,090 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.2 | 39.0 | 12.3 | 1,510 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.4 | 43.5 | 7.56 | 2,010 | |
| 19 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 9.5 | 18.1 | 1,070 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.2 | 34.0 | 12.3 | 1,550 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.4 | 43.5 | 7.56 | 2,060 | |
| 20 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 35.0 | 18.1 | 1,140 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.2 | 40.5 | 12.3 | 1,630 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.4 | 45.0 | 7.56 | 2,170 | |
| 21 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 36.0 | 18.1 | 1,190 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.3 | 41.5 | 12.3 | 1,720 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.4 | 46.0 | 7.56 | 2,270 | |
| 22 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 37.0 | 18.1 | 1,250 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.3 | 42.5 | 12.3 | 1,810 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.5 | 47.5 | 7.56 | 2,410 | |
| 23 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 38.5 | 18.1 | 1,400 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.4 | 46.0 | 12.3 | 2,010 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.6 | 51.5 | 7.56 | 2,670 | |
| 24 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 39.5 | 18.1 | 1,430 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.4 | 46.0 | 12.3 | 2,050 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.6 | 51.5 | 7.56 | 2,720 | |
| 25 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 40.0 | 18.1 | 1,450 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.4 | 46.0 | 12.3 | 2,080 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.6 | 51.5 | 7.56 | 2,770 | |
| 26 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 41.0 | 18.1 | 1,520 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.5 | 47.5 | 12.3 | 2,190 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.7 | 53.0 | 7.56 | 2,910 | |
| 27 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 41.0 | 18.1 | 1,540 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.5 | 47.5 | 12.3 | 2,220 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.7 | 53.0 | 7.56 | 2,960 | |
| 28 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 41.5 | 18.1 | 1,570 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.5 | 47.5 | 12.3 | 2,260 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.7 | 53.0 | 7.56 | 3,010 | |
| 29 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 42.5 | 18.1 | 1,650 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.5 | 49.0 | 12.3 | 2,380 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.7 | 55.0 | 7.56 | 3,170 | |
| 30 | 1 | 7/0.44 | 1.32 | 0.8 | 1.8 | 42.5 | 18.1 | 1,670 |
| 1.5 | 7/0.53 | 1.59 | 0.8 | 2.5 | 49.0 | 12.3 | 2,410 | |
| 2.5 | 7/0.67 | 2.01 | 0.8 | 2.7 | 55.0 | 7.56 | 3,220 | |
