NYY-J/NYY-O德标工业缆

应用及描述

NYY电力电缆是专用于电缆管道,发电站,工业和配电板,以及用户网络的能源供应。也可用于在砖墙,混凝土中(非紧实型混凝土),需要颤动,摇摆的被现状况除外,NYY电缆可安装在露天,敷设于地下,水中和室内防止机械损伤的区域。此电缆抗紫外线,可户外使用。

标准及认证

VDE-0276 Part-603 & Part-627, HD 603.1 & 627 S1, IEC 60502, VDE 0482-332-1-2, DIN EN60332-1-2/IEC 60332-1, CE 低压73/23/EEC和93/68/EEC指令, ROHS认证

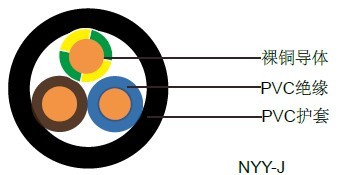

电缆结构

- 实心或多股裸铜导体
- 遵循DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2, IEC 60228 cl.1/cl.2
- PVC绝缘DIV4类,遵循HD 603.1
- 色彩编码遵循DIN VDE 0293-308, 0276- 603/HD 186
- 3+1/2的导体的线芯颜色
J类: 黄绿色 (1/2), 棕色, 黑色, 灰色
O类: 蓝色 (1/2), 棕色, 黑色, 灰色
- PVC外护套DMV5类,遵循HD 603.1

技术特性

- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 动态弯曲半径: 15 x Ø
- 静态弯曲半径: 12 x Ø
- 应用时的工作温度: -5º C ~ +50º C
- 固定安装温度: - 40º C ~ +70º C
- 阻燃: IEC 60332.1
- 绝缘电阻: >100 MΩ x km

NYY-J/NYY-O德国VDE标准工业电缆NYY-J/NYY-O德国VDE标准工业电缆

电缆参数

线规 芯数 x 导体
截面积
# x mm²
标称外径
mm
标称铜的重量
kg/km
标称电缆重量
kg/km
12 1x4re 9.0 38.0 130.0
10 1x6re 10.0 58.0 136.0
8 1x10re 11.0 96.0 182.0
6 1x16re 12.0 154.0 252.0
4 1x25rm 13.0 240.0 365.0
2 1x35rm 14.0 336.0 480.0
1 1x50rm 16.0 480.0 620.0
2/0 1x70rm 17.0 672.0 840.0
3/0 1x95rm 19.0 912.0 1100.0
4/0 1x120rm 21.0 1152.0 1320.0
300mcm 1x150rm 23.0 1440.0 1610.0
350mcm 1x185rm 25.0 1776.0 1.980.0
500mcm 1x240rm 28.0 2304.0 2550.0
750mcm 1x300rm 30.0 2880.0 3200.0
- 1x400rm 34.0 3840.0 4000.0
- 1x500rm 38.0 4800.0 5100.0
16 3x1.5re 12.0 43.0 225.0
14 3x2.5re 13.0 72.0 275.0
12 3x4re 14.0 115.0 375.0
10 3x6re 15.0 173.0 480.0
8 3x10re 18.0 288.0 675.0
6 3x16re 19.0 461.0 880.0
4 3x25rm 24.0 720.0 1390.0
2 3x35sm 25.0 1008.0 1600.0
1 3x50sm 28.0 1440.0 2000.0
2/0 3x70sm 31.0 2016.0 2700.0
3/0 3x95sm 35.0 2736.0 3600.0
4/0 3x120sm 39.0 3456.0 4400.0
300mcm 3x150sm 44.0 4320.0 4910.0
350mcm 3x185sm 49.0 5328.0 6520.0
500mcm 3x240sm 53.0 6912.0 8290.0
4 3x25rm/16re 25.0 874.0 1575.0
2 3x35sm/16re 26.0 1162.0 1700.0
1 3x50sm/25rm 30.0 1680.0 2325.0
2/0 3x70sm/35sm 35.0 2352.0 2900.0
3/0 3x95sm/50sm 37.0 3216.0 3900.0
4/0 3x120sm/70sm 42.0 4128.0 4900.0
300mcm 3x150sm/70sm 47.0 4992.0 5800.0
350mcm 3x185sm/95sm 51.0 6240.0 7400.0
500mcm 3x240sm/120sm 59.0 8064.0 9700.0
- 3x300sm/150sm 66.0 10080.0 12000.0
16 4x1.5re 13.0 58.0 220.0
14 4x2.5re 14.0 96.0 300.0
12 4x4re 16.0 154.0 410.0
10 4x6re 17.0 230.0 520.0
8 4x10re 19.0 384.0 720.0
6 4x16re 22.0 614.0 1050.0
4 4x25rm 26.0 960.0 1650.0
2 4x35sm 28.0 1344.0 1860.0
1 4x50sm 31.0 1920.0 2500.0
2/0 4x70sm 35.0 2688.0 3300.0
3/0 4x95sm 38.0 3648.0 4500.0
4/0 4x120sm 42.0 4608.0 5500.0
300mcm 4x150sm 47.0 5760.0 6880.0
350mcm 4x185sm 52.0 7104.0 8460.0
500mcm 4x240sm 59.0 9216.0 11000.0
16 5x1.5re 13.0 72.0 280.0
14 5x2.5re 15.0 120.0 360.0
12 5x4re 16.0 192.0 490.0
10 5x6re 18.0 288.0 650.0
8 5x10re 20.0 480.0 870.0
6 5x16re 23.0 768.0 1255.0
4 5x25rm 30.0 1200.0 1980.0
2 5x35rm 34.0 1680.0 2650.0
16 7x1.5re 14.0 101.0 370.0
16 10x1.5re 17.0 144.0 530.0
16 12x1.5re 18.0 173.0 580.0
16 14x1.5re 19.0 202.0 620.0
16 16x1.5re 20.0 230.0 690.0
16 19x1.5re 21.0 274.0 770.0
16 21x1.5re 22.0 302.0 850.0
16 24x1.5re 23.0 346.0 900.0
16 30x1.5re 24.0 432.0 1030.0
16 40x1.5re 28.0 576.0 1260.0
16 61x1.5re 32.0 878.0 1760.0
14 7x2.5re 16.0 168.0 460.0
14 10x2.5re 19.0 240.0 650.0
14 12x2.5re 20.0 288.0 730.0
14 14x2.5re 21.0 336.0 820.0
14 16x2.5re 22.0 384.0 930.0
14 19x2.5re 23.0 456.0 1000.0
14 21x2.5re 24.0 504.0 1050.0
14 24x2.5re 26.0 576.0 1120.0
14 30x2.5re 28.0 720.0 1300.0
14 40x2.5re 30.0 960.0 1700.0
14 52x2.5re 36.0 1248.0 2300.0
14 61x2.5re 38.0 1464.0 2600.0
14 7x4re 19.0 269.0 620.0
14 7x6re 21.0 403.0 860.0
