钢芯铝绞线 (ACSR)电缆

应用

钢芯铝绞线电缆ACSR导体广泛用于远距离电力传输，因为它们是理想的长架空线路跨越。它们也被用作支撑架空电缆的传送带。

标准

符合BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110标准

电缆结构

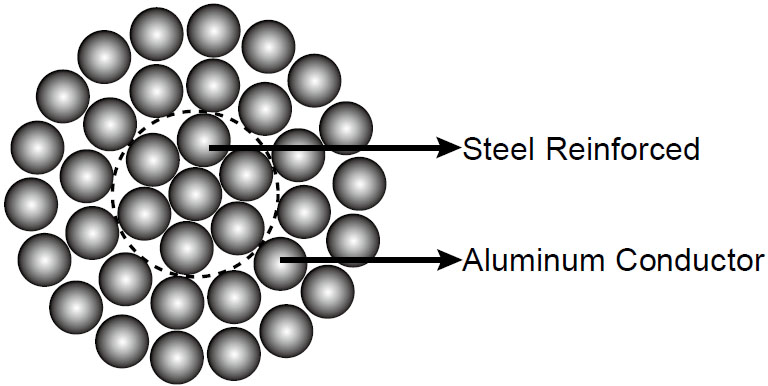

钢芯铝绞线电缆ACSR Cables

钢芯铝绞线电缆ACSR导线由几根铝和镀锌钢导线组成，以同心层绞合而成。构成铁芯的电线由镀锌钢制成，外层由铝制成。镀锌铁芯一般由1根、7根或19根导线组成。钢线和铝线的直径可以相同，也可以不同。

通过改变铝和钢的相对比例，可以达到任何特定应用所需的特性。通过增加钢的含量可以获得更高的抗静电性能，通过增加铝的含量可以获得更高的载流能力。

电气性能

密度@20℃ 铝: 2.703 kg/dm
  镀锌钢: 7.80 kg/dm
温度系数@20°C 铝: 0.00403 (°C)
电阻系数@20°C 铝: Should not exceed 0.028264
线性膨胀系数 铝: 23 x10 (°C)
  镀锌钢: 11.5 x10 (1/°C)

操作条件

环境温度 -5°C - 50°C
风压 80 - 130kg/m2
Seismic Acceleration 0.12 - 0.05g
Isokeraunic Level 10 - 18
Relative Humidity 5 - 100%

结构参数

BS 215-2

Code 标称截面积 Stranding 外径 重量(CU) 额定强度 电阻 @20℃
AL Steel Total AL Steel Core Total AL Steel Total
Nominal Teorical
  mm2 mm2 mm2 mm2 No.×mm No.×mm mm mm Kg/Km Kg/Km Kg/Km KN Ω/Km
Mole 10 10.62 1.77 12.39 6/1.50 1/1.50 1.50 4.5 29 14 43 4.14 2.706
Squirrel 20 20.94 3.49 24.43 6/2.11 1/2.11 2.11 6.33 57 28 85 7.88 1.368
Gopher 25 26.24 4.38 30.62 6/2.36 1/2.36 2.36 7.08 71 35 106 9.61 1.093
Weasel 30 31.61 5.27 36.88 6/2.59 1/2.59 2.59 7.77 87 41 128 11.45 0.9077
Fox 35 36.66 6.11 42.77 6/2.79 1/2.79 2.79 8.37 101 48 149 13.2 0.7822
Ferret 40 42.41 7.07 49.48 6/3.00 1/3.00 3.0 9.0 117 55 172 15.2 0.6766
Rabbit 50 52.88 8.82 61.7 6/3.35 1/3.35 3.35 10.05 145 69 214 18.35 0.5426
Mink 60 63.18 10.53 73.71 6/3.66 1/3.66 3.66 10.98 171 84 255 2.18 0.4545
Shunk 60 63.27 37.03 100.3 12/2.59 7/2.59 7.77 12.95 178 287 465 5.3 0.4567
Beaver 70 74.82 12.47 87.29 6/3.99 1/3.99 3.99 11.97 203 99 302 2.57 0.3825
Horse 70 73.37 42.63 116.2 12/2.79 7/2.79 8.37 13.95 203 335 538 61.2 0.3936
Racoon 75 79.2 13.2 92.4 6/4.1 1/4.1 4.1 12.3 216 104 320 27.2 0.3622
Otter 80 83.88 13.98 97.86 6/4.22 1/4.22 4.22 13.98 226 113 339 28.8 0.3419
Cat 90 95.44 15.86 111.3 6/4.5 1/4.5 4.5 15.9 258 128 386 32.7 0.3007
Hare 100 105 17.5 122.5 6/4.72 1/4.72 4.72 17.5 284 141 425 36.0 0.2733
Dog 100 105 13.5 118.5 6/4.72 7/1.57 4.71 14.15 288 106 394 32.7 0.2733
Hyena 100 105.8 20.4 126.2 7/4.39 7/1.93 5.79 14.57 250 200 450 40.9 0.2712
Leoperd 125 131.3 16.8 148.1 8/5.28 7/1.75 5.25 15.81 310 182 492 40.7 0.2184
Coyotte 125 132.1 20.1 152.2 26/2.54 7/1.91 5.73 15.89 410 112 522 46.4 0.2187
Congar 125 130.3 7.2 137.5 18/3.05 1/3.05 3.05 15.25 361 58 419 29.8 0.2189
Tiger 125 131.1 30.6 161.7 30/2.36 7/2.36 7.08 16.52 365 237 602 58 0.2202
Wolf 150 158.1 36.8 194.9 30/2.59 7/2.59 7.77 18.13 441 285 726 69.2 0.1828
Dingo 150 158.7 8.8 167.5 18/3.35 1/3.35 3.35 16.75 437 69 506 35.7 0.1815
Lynx 175 183.4 42.8 226.2 30/2.79 7/2.79 8.37 19.53 507 335 842 79.8 0.1576
Caracal 175 184.3 10.2 194.5 18/3.61 1/3.61 3.61 18.05 507 80 587 41.1 0.1563
Panther 200 212.1 49.4 261.5 30/3.00 7/3.00 9.0 21.0 586 388 974 92.25 0.1363
Jaguar 200 210.6 11.7 222.3 18/3.86 1/3.86 3.86 19.3 580 91 671 46.55 0.1367
Lion 225 238.5 55.7 294.2 30/3.18 7/3.18 9.54 22.26 657 438 1095 100.6 0.1212
Bear 250 264 61.6 325.6 30/3.35 7/3.35 10.05 23.45 728 485 1213 111.1 0.1090
Goat 300 324.3 75.7 400 30/3.71 7/3.71 11.13 25.79 894 595 1489 135.7 0.0891
Sheep 350 374.1 87.3 461.4 30/3.99 7/3.99 11.97 27.93 1031 687 1718 155.9 0.0770
Antilope 350 373.1 48.4 421.5 54/2.97 7/2.97 8.91 26.73 1040 371 1411 118.2 0.0772
Bizon 350 381.8 49.5 431.3 54/3.00 7/3.00 9.0 27.0 1064 380 1444 120.9 0.0757
Zebra 400 428.9 55.6 484.5 54/3.18 7/3.18 9.54 28.62 1185 436 1621 131.9 0.0674

BS EN 50182

Code Stranding Sectional Area 外径 重量 Breakign Load 电阻 @20℃ 额定电流*
AL Steel AL Steel Total
  No.×mm No.×mm mm2 mm2 mm2 mm Kg/Km KN Ω/Km A
Mole 6/1.50 1/1.50 10.6 1.77 12.4 4.5 42.8 4.14 2.7027 66
Squirrel 6/2.11 1/2.11 21 3.5 24.5 6.33 84.7 7.87 1.3659 101
Fox 6/2.79 1/2.79 36.7 6.11 42.8 8.37 148.1 13.21 0.7812 142
Mink 6/3.66 1/3.66 63.1 10.5 73.6 10.98 254.9 21.67 0.454 199
Skunk 12/2.59 7/2.59 63.2 36.9 100.1 12.95 463 52.79 0.4568 206
Beaver 6/3.99 1/3.99 75 12.5 87.5 11.97 302.9 25.76 0.382 221
Racoon 6/4.09 1/4.09 78.8 13.1 91.9 12.27 318.3 27.06 0.3635 228
Otter 6/4.22 1/4.22 83.9 14 97.9 12.66 338.8 28.81 0.3415 237
Cat 6/4.50 1/4.50 95.4 15.9 111.3 13.5 385.3 32.76 0.3003 256
Hare 6/4.72 1/4.72 105 17.5 122.5 14.16 423.8 36.04 0.273 271
Coyote 26/2.54 7/1.91 131.7 20.1 151.8 15.89 520.7 45.86 0.2192 311
Cougar 18/3.05 1/3.05 131.5 7.31 138.8 15.25 418.8 29.74 0.2188 308
Tiger 30/2.36 7/2.36 131.2 30.6 161.8 16.52 602.2 57.87 0.2202 313
Lion 30/3.18 7/3.18 238.3 55.6 293.9 22.26 1093.4 100.47 0.1213 450
Bear 30/3.35 7/3.35 264.4 61.7 326.1 23.45 1213.4 111.5 0.1093 480
Goat 30/3.71 7/3.71 324.3 75.7 400 25.97 1488.2 135.13 0.0891 543
Sheep 30/3.99 7/3.99 375.1 87.5 462.6 27.93 1721.3 156.3 0.0771 592
Antelope 54/2.97 7/2.97 374.1 48.5 422.6 26.73 1413.8 118.88 0.0773 586
Bison 54/3.00 7/3.00 381.7 49.5 431.2 27 1442.5 121.3 0.0758 593
Deer 30/4.27 7/4.27 429.6 100.2 529.8 29.89 1971.4 179 0.0673 643
Elk 30/4.50 7/4.50 477.1 111.3 588.4 31.5 2189.5 198.8 0.0606 684
Camel 54/3.35 7/3.35 476 61.7 537.7 30.15 1798.8 146.4 0.0608 677
Moose 54/3.53 7/3.53 528.5 68.5 597 31.77 1997.3 159.92 0.0547 720

注:*上表中电流额定值为风速0.6米/秒，太阳热辐射1200瓦/米，环境温度50℃，导体温度80℃。

IEC 61089

Code 标称截面积 Stranding 外径 重量 Breakign Load 电阻 @20℃ 额定电流*
AL Steel Total AL Steel
  mm2 mm2 mm2 No.×mm No.×mm mm Kg/Km KN Ω/Km A
16 16 2.67 18.7 6/1.84 1/1.84 5.52 64.6 6.08 1.7934 85
25 25 4.17 29.2 6/2.30 1/2.30 6.9 100.9 9.13 1.1478 112
40 40 6.67 46.7 6/2.91 1/2.91 8.73 161.5 14.4 0.7174 150
63 63 10.5 73.5 6/3.66 1/3.66 10.98 254.4 21.63 0.4555 198
100 100 16.7 117 6/4.61 1/4.61 13.83 403.8 34.33 0.2869 263
125 125 6.94 132 18/2.97 1/2.97 14.85 397.9 29.17 0.2304 299
125 125 20.4 145 26/2.47 7/1.92 15.64 503.9 45.69 0.231 302
160 160 8.89 169 18/3.36 1/3.36 16.8 509.3 36.18 0.18 347
160 160 26.1 186 26/2.80 7/2.18 17.74 644.9 57.69 0.1805 351
200 200 11.1 211 18/3.76 1/3.76 18.8 636.7 44.22 0.144 398
200 200 32.6 233 26/3.13 7/2.43 19.81 806.2 70.13 0.1444 402
250 250 24.6 275 22/3.80 7/2.11 21.53 880.6 68.72 0.1154 458
250 250 40.7 291 26/3.50 7/2.72 22.16 1007.7 87.67 0.1155 461
315 315 21.8 337 45/2.99 7/1.99 23.91 1039.6 79.03 0.0917 526
315 315 51.3 366 26/3.93 7/3.05 24.87 1269.7 106.83 0.0917 530
400 400 27.7 428 45/3.36 7/2.24 26.88 1320.1 98.36 0.0722 607
400 400 51.9 452 54/3.07 7/3.07 27.63 1510.3 123.04 0.0723 610
450 450 31.1 481 45/3.57 7/2.38 28.56 1485.2 107.47 0.0642 651
450 450 58.3 508 54/3.26 7/3.26 29.34 1699.1 138.42 0.0643 655
500 500 34.6 535 45/3.76 7/2.51 30.09 1650.2 119.41 0.0578 693
500 500 64.8 565 54/3.43 7/3.43 30.87 1887.9 153.8 0.0578 697
560 560 38.7 599 45/3.98 7/2.65 31.83 1848.2 133.74 0.0516 741
560* 560 70.9 631 54/3.63 19/2.18 32.68 2103.4 172.59 0.0516 745
630 630 43.6 674 45/4.22 7/2.81 33.75 2079.2 150.45 0.0459 794
630* 630 79.8 710 54/3.85 19/2.31 34.65 2366.3 191.77 0.0459 798
710 710 49.1 759 45/4.48 7/2.99 35.85 2343.2 169.56 0.0407 851
710* 710 89.9 800 54/4.09 19/2.45 36.79 2666.8 216.12 0.0407 856
800* 800 34.6 835 72/3.76 7/2.51 37.61 2480.2 167.41 0.0361 910
800* 800 66.7 867 84/3.48 7/3.48 38.28 2732.7 205.33 0.0362 912
800* 800 101 901 54/4.34 19/2.61 39.09 3004.9 243.52 0.0362 916
900* 900 38.9 939 72/3.99 7/2.66 39.9 2790.2 188.33 0.0321 972
900* 900 75 975 84/3.69 7/3.69 40.59 3074.2 226.5 0.0322 974
1000* 1000 43.2 1043 72/4.21 7/2.80 42.08 3100.3 209.26 0.0289 1031
1120* 1120 47.3 1167 72/4.45 19/1.78 44.5 3464.9 234.53 0.0258 1096
1120* 1120 91.2 1211 84/4.12 19/2.47 45.31 3811.5 283.17 0.0258 1100
1250* 1250 102 1352 84/4.35 19/2.61 47.85 4253.9 316.04 0.0232 1165
1250* 1250 52.8 1303 72/4.70 19/1.88 47 3867.1 261.75 0.0231 1163

*标有“*”的项目不在我们目前的产品范围内，详情仅供参考。

(*)注:表中电流额定值为风速0.6米/秒，太阳热辐射1200瓦/米，环境温度50℃，导体温度80℃.

ASTM B 232/B 232M

Code Stranding Stranding 外径 重量 Breakign Load 电阻 @20℃ 额定电流*
AL Steel AL Steel Total
  No.×mm No.×mm mm2 mm2 mm2 mm Kg/Km KN Ω/Km A
Turkey 13.3 2.22 6/1.68 1/1.68 5.04 15.52 53.6 4.98 2.1499 76
Swan 21.18 3.53 6/2.12 1/2.12 6.36 24.71 85.3 7.83 1.3501 101
Swanate 21.12 5.35 7/1.96 1/2.61 6.53 26.47 99.6 9.79 1.3539 102
Sparrow 33.59 5.6 6/2.67 1/2.67 8.01 39.19 135.7 11.92 0.8512 135
Sparate 33.54 8.55 7/2.47 1/3.30 8.24 42.09 158.7 15.08 0.8525 135
Robin 42.41 7.07 6/3.00 1/3.00 9 49.48 171.1 14.86 0.6742 156
Raven 53.52 8.92 6/3.37 1/3.37 10.11 62.44 216.1 18.33 0.5343 180
Quail 67.33 11.22 6/3.78 1/3.78 11.34 78.55 272 22.46 0.4247 207
Pigeon 85.12 14.19 6/4.25 1/4.25 12.75 99.31 343 28.02 0.3359 239
Penguin 107.22 17.87 6/4.77 1/4.77 14.31 125.09 432.7 35.36 0.2667 275
Waxwing 134.98 7.5 18/3.09 1/3.09 15.45 142.48 430.2 29.8 0.2129 313
Partridge 134.87 21.99 26/2.57 7/2.00 16.28 156.86 545.9 47.15 0.2141 316
Ostrich 152.19 24.71 26/2.73 7/2.12 17.28 176.9 613.4 53.38 0.1897 341
Merlin 170.22 9.46 18/3.47 1/3.47 17.35 179.68 542.8 37.36 0.1688 361
Linnet 170.55 27.83 26/2.89 7/2.25 18.31 198.38 687.5 59.16 0.1693 365
Oriole 170.5 39.78 30/2.69 7/2.69 18.83 210.28 783.3 72.06 0.1698 367
Chickadee 200.93 11.16 18/3.77 1/3.77 18.85 212.09 641.3 43.15 0.143 400
Brant 201.56 26.13 24/3.27 7/2.18 19.62 227.69 761 61.83 0.1433 403
Ibis 201.34 32.73 26/3.14 7/2.44 19.88 234.07 812.4 68.05 0.1434 404
Lark 200.9 46.88 30/2.92 7/2.92 20.44 247.78 925.2 84.07 0.1441 406
Pelican 242.31 13.46 18/4.14 1/4.14 20.7 255.77 769.7 51.15 0.1186 448
Flicker 241.58 31.4 24/3.58 7/2.39 21.49 272.98 913.5 72.06 0.1195 450
Hawk 241.65 39.19 26/3.44 7/2.67 21.77 280.84 975.1 81.84 0.1195 451
Hen 241.27 56.3 30/3.20 7/3.20 22.4 297.57 1110.6 98.3 0.12 453
Osprey 282.47 15.69 18/4.47 1/4.47 22.35 298.16 897.7 59.6 0.1017 492
Parakeet 282.31 36.6 24/3.87 7/2.58 23.22 318.91 1065.6 83.18 0.1023 495
Dove 282.59 45.92 26/3.72 7/2.89 23.55 328.51 1138.6 94.3 0.1022 497
Eagle 282.07 65.82 30/3.46 7/3.46 24.22 347.89 1295.6 114.76 0.1026 499
Peacock 306.13 39.78 24/4.03 7/2.69 24.19 345.91 1158.9 90.74 0.0943 520
Squab 305.83 49.81 26/3.87 7/3.01 24.51 355.64 1237 101.41 0.0944 521
Wood Duck 307.06 71.65 30/3.61 7/3.61 25.27 378.71 1408.4 121.43 0.0943 525
Teal* 307.06 69.62 30/3.61 19/2.16 25.24 376.68 1396.6 124.54 0.0943 525
Kingbird 323.01 17.95 18/4.78 1/4.78 23.9 340.96 1026.6 68.05 0.089 533
Swift 323.02 8.97 36/3.38 1 /3.38 23.66 331.99 956.5 60.05 0.089 532
Rook 323.07 41.88 24/4.14 7/2.76 24.84 364.95 1217.5 95.19 0.0894 537
Grosbeak 321.84 52.49 26/3.97 7/3.09 25.15 374.33 1300.8 104.97 0.0897 537
Scoter 322.56 75.26 30/3.70 7/3.70 25.9 397.82 1480.7 127.66 0.0897 541
Egret* 322.56 73.54 30/3.70 19/2.22 25.9 396.1 1469 130.77 0.0897 541
Flamingo 337.27 43.72 24/4.23 7/2.82 25.38 380.99 1276.6 99.64 0.0856 551
Gannet 338.26 54.9 26/4.07 7/3.16 25.76 393.16 1363.3 110.31 0.0854 553
Stilt 363.27 46.88 24/4.39 7/2.92 26.32 410.15 1370.4 107.2 0.0795 576
Starling 361.93 59.15 26/4.21 7/3.28 26.68 421.08 1463.7 118.32 0.0798 577
Redwing* 362.06 82.41 30/3.92 19/2.35 27.43 444.47 1650.6 143.23 0.0799 580
Coot 401.86 11.16 36/3.77 1/3.77 26.39 413.02 1195.8 73.39 0.0715 607
Tern 403.77 27.83 45/3.38 7/2.25 27.03 431.6 1331.8 94.3 0.0715 610
Condor 402.33 52.15 54/3.08 7/3.08 27.72 454.48 1520.7 118.32 0.0718 612
Cuckoo 402.33 52.15 24/4.62 7/3.08 27.72 454.48 1522.2 117.43 0.0718 612
Drake 402.56 65.44 26/4.44 7/3.45 28.11 468 1626.4 131.66 0.0717 615
Mallard* 403.84 91.78 26/4.44 7/3.45 28.96 495.62 1836 159.24 0.0717 619
Ruddy 455.5 31.67 45/3.59 7/2.40 28.74 487.17 1507.3 104.53 0.0634 656
Canary 456.28 59.15 54/3.28 7/3.28 29.52 515.43 1723.1 134.33 0.0633 660
Catbird 484.61 13.46 36/4.14 1/4.14 28.98 498.07 1434.4 86.74 0.0593 679
Rail 483.84 33.54 45/3.70 7/2.47 29.61 517.38 1598.1 110.76 0.0597 680
Cardinal 484.53 62.81 54/3.38 7/3.38 30.42 547.34 1825.9 142.34 0.0596 685
Cardinal 484.53 62.81 54/3.38 7/3.38 30.42 547.34 1825.9 142.34 0.0596 685
Tanager 522.79 14.52 36/4.30 1/4.30 30.1 537.31 1553.5 93.85 0.055 710
Orotlan 523.87 36.31 45/3.85 7/2.57 30.81 560.18 1730.5 118.32 0.0551 713
Curlew 522.51 67.73 54/3.51 7/3.51 31.59 590.24 1977.6 153.9 0.0553 716
Bluejay 565.49 38.9 45/4.00 7/2.66 31.98 604.39 1866 127.66 0.0511 745
Finch* 565.03 71.57 54/3.65 19/2.19 32.85 636.6 2127.8 164.58 0.0514 748
Bunting 605.76 41.88 45/4.14 7/2.76 33.12 647.64 1996.9 136.55 0.0477 776
Grackle* 602.79 76.89 54/3.77 19/2.27 33.97 679.68 2278.1 176.59 0.0481 777
Skylark 646.02 17.95 36/4.78 1/4.78 33.46 663.97 1913.6 115.65 0.0445 804
Bittern 644.4 44.66 45/4.27 7/2.85 34.17 689.06 2130.8 145.89 0.0448 805
Pheasant* 645.08 81.71 54/3.90 19/2.34 35.1 726.79 2431.4 183.26 0.045 808
Dipper 684.24 47.2 45/4.40 7/2.93 35.19 731.44 2263.2 154.79 0.0422 834
Martin* 685.39 86.67 54/4.02 19/2.41 36.17 772.06 2581.7 194.82 0.0423 838
Bobolink 725.27 50.14 45/4.53 7/3.02 36.24 775.41 2397.2 164.13 0.0398 862
Plover* 726.92 91.78 54/4.14 19/2.48 37.24 818.7 2734.9 206.39 0.0399 866
Nuthatch 764.2 52.83 45/4.65 7/3.10 37.2 817.03 2529.6 171.25 0.0378 888
Parrot* 766.06 97.03 54/4.25 19/2.55 38.25 863.09 2883.7 217.51 0.0379 892
Lapwing 807.53 55.6 45/4.78 7/3.18 38.22 863.13 2663.5 180.14 0.0358 916
Falcon* 806.23 102.43 54/4.36 19/2.62 39.26 908.66 3038.5 229.52 0.036 919
Chukar* 903.18 73.54 84/3.70 19/2.22 40.7 976.72 3083.1 217.51 0.0321 976
Bluebird* 1092.84 88.84 84/4.07 19/2.44 44.76 1181.68 3731.9 256.65 0.0266 1083
Kiwi* 1099.76 47.52 72/4.41 7/2.94 44.1 1147.28 3423.9 215.28 0.0264 1083
Thrasher* 1171.42 63.94 76/4.43 19/2.07 45.79 1235.36 3754.2 243.75 0.0248 1122
Grouse** 40.54 14.12 8/2.54 1/4.24 9.32 54.66 221.4 21.75 0.7089 153
Petrel** 51.61 30.1 12/2.34 7/2.34 11.7 81.71 377.7 42.08 0.5595 181
Minorca** 56.11 32.73 12/2.44 7/2.44 12.2 88.84 411.1 45.81 0.5146 191
Leghorn** 68.2 39.78 12/2.69 7/2.69 13.45 107.98 499.2 55.16 0.4234 215
Guinea** 80.36 46.88 12/2.92 7/2.92 14.6 127.24 589.7 64.94 0.3593 238
Dotterel** 89.41 52.15 12/3.08 7/3.08 15.4 141.56 656.1 70.28 0.323 254
Dorking** 96.51 56.3 12/3.20 7/3.20 16 152.81 707.8 75.62 0.2992 267
Cochin** 107.04 62.44 12/3.37 7/3.37 16.85 169.48 783.9 84.07 0.2698 284
Brahma*&** 102.79 91.78 12/3.37 7/3.37 18.12 194.57 1003.8 114.76 0.2809 283

*标有“*”的项目不在我们目前的产品范围内，详情仅供参考。
**标有“**”的项目为高强度绞合ACSR电缆。
(*)注:表中电流额定值为风速0.6米/秒，太阳热辐射1200瓦/米，环境温度50℃，导体温度80℃.

DIN 48204

Nominal Sectional Area Sectional Area Stranding 外径 重量 Breakign Load 电阻 @20℃ 额定电流*
AL Steel AL Steel Total AL Steel
mm2 mm2 mm2 mm2 mm2 No.×mm No.×mm mm Kg/Km KN Ω/Km A
16 2.5 15.27 2.54 17.8 6/1.80 1/1.80 5.4 62 5.81 1.8793 83
25 4 23.86 3.98 27.8 6/2.25 1/2.25 6.8 97 9.02 1.2028 109
35 6 34.35 5.73 40.1 6/2.70 1/2.70 8.1 140 12.7 0.8353 136
44 32 43.98 31.67 75.7 14/2.00 7/2.40 11.2 373 45.46 0.6573 166
50 8 48.25 8.04 56.3 6/3.20 1/3.20 9.6 196 17.18 0.5946 168
50 30 51.17 29.85 81 12/2.33 7/2.33 11.7 378 44.28 0.5644 181
70 12 69.89 11.4 81.3 26/1.85 7/1.44 11.7 284 26.31 0.413 211
95 15 94.39 15.33 109.7 26/2.15 7/1.67 13.6 383 35.17 0.3058 254
95 55 96.51 56.3 152.8 12/3.20 7/3.20 16 714 80.2 0.2992 267
105* 75 105.67 75.55 181.2 14/3.10 19/2.25 17.5 899 106.69 0.2736 284
120 20 121.57 19.85 141.4 26/2.44 7/1.90 15.5 494 44.94 0.2374 297
120 70 122.15 71.25 193.4 12/3.60 7/3.60 18 904 98.16 0.2364 308
125 30 127.92 29.85 157.8 30/2.33 7/2.33 16.3 590 57.86 0.2259 308
150 25 148.86 24.25 173.1 26/2.70 7/2.10 17.1 604 54.37 0.1939 336
170 40 171.77 40.08 211.9 30/2.70 7/2.70 18.9 794 77.01 0.1682 369
185 30 183.78 29.85 213.6 26/3.00 7/2.33 19 744 66.28 0.1571 382
210 35 209.1 34.09 243.2 26/3.20 7/2.49 20.3 848 74.94 0.138 414
210 50 212.06 49.48 261.5 30/3.00 7/3.00 21 979 92.25 0.1363 420
230 30 230.91 29.85 260.8 24/3.50 7/2.33 21 874 73.09 0.1249 438
240 40 243.05 39.49 282.5 26/3.45 7/2.68 21.8 985 86.46 0.1188 453
265 35 263.66 34.09 297.8 24/3.74 7/2.49 22.4 998 82.94 0.1094 475
300 50 304.26 49.48 353.7 26/3.86 7/3.00 24.5 1233 105.09 0.0949 520
305 40 304.62 39.49 344.1 54/2.68 7/2.68 24.1 1155 99.3 0.0949 518
340 30 339.29 29.85 369.1 48/3.00 7/2.33 25 1174 92.56 0.0851 551
380 50 381.7 49.48 431.2 54/3.00 7/3.00 27 1448 120.91 0.0757 593
385 35 386.04 34.09 420.1 48/3.20 7/2.49 26.7 1336 104.31 0.0748 595
435 55 434.29 56.3 490.6 54/3.20 7/3.20 28.8 1647 136.27 0.0666 641
450 40 448.71 39.49 488.2 48/3.45 7/2.68 28.7 1553 120.19 0.0644 651
490 65 490.28 63.55 553.8 54/3.40 7/3.40 30.6 1860 152.85 0.059 689
550 70 549.65 71.25 620.9 54/3.60 7/3.60 32.4 2085 167.42 0.0526 737
560 50 561.7 49.48 611.2 48/3.86 7/3.00 32.2 1943 146.28 0.0514 744
680* 85 678.58 85.95 764.5 54/4.00 19/2.40 36 2564 209.99 0.0426 834

*标有“*”的项目不在我们目前的产品范围内，详情仅供参考。
(*)注:表中电流额定值为风速0.6米/秒，太阳热辐射1200瓦/米，环境温度50℃，导体温度80℃.

JiS C 3110

Nominal Sectional Area Sectional Area Stranding 外径 重量 Breakign Load 电阻 @20℃
AL Steel Total AL Steel
mm2 mm2 mm2 mm2 No.×mm No.×mm mm Kg/Km KN Ω/Km
25 24.9 4.2 29.1 6/2.30 1/2.30 6.9 101 8.89 1.15
32 31.9 5.3 37.2 6/2.60 1/2.60 7.8 129 11.17 0.899
58 57.7 9.6 67.3 6/3.50 1/3.50 10.5 233 19.40 0.497
95 95.4 15.9 111.3 6/4.50 1/4.50 13.5 385 31.16 0.301
120 124.7 29.1 153.8 30/2.3 7/2.3 16.1 574 54.29 0.233
160 159.3 37.2 196.5 30/2.6 7/2.6 18.2 733 68.40 0.182
200 198.2 46.2 244.4 30/2.9 7/2.9 20.3 912 84.67 0.147
240 241.2 59.3 300.5 30/3.2 7/3.2 22.4 1110 100.06 0.120
330 326.8 52.8 379.6 26/4.0 7/3.1 25.3 1320 107.31 0.0888
410 413.4 67.3 480.7 26/4.5 7/3.5 28.5 1673 136.32 0.0702
520 519.5 67.3 586.8 54/3.5 7/3.5 31.2 1969 152.88 0.0559
610 612.4 79.4 691.8 54/3.8 7/3.8 34.2 2320 179.83 0.0474
810 814.5 56.3 870.8 45/3.8 7/3.2 38.4 2700 181.10 0.0356

技术参数

Numbers of Wires Final Modules of Elasticity Coeficient of linear Expansion
AL Steel Kg/mm2 lb/in2 1/Co 1/Fo
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6
