IEC 60092标准MariSig阻燃仪表&控制电缆
TI (i)/ TU(i) (MRE-2XH PiMF/TiMF) 150/250V XLPE绝缘,LSOH(SHF1)护套,单独屏蔽阻燃仪表&控制缆(多对/多三线组)

IEC 60092标准MRE-2XH PiMF/TiMF 150/250V XLPE绝缘,LSOH(SHF1)护套,单独屏蔽阻燃仪表&控制缆(多对/多三线组)

应用

该电缆适用于船上不受机械损害的任意位置的固定安装,符合IEC 60092-352标准。该电缆阻燃、低压、无卤,适合客船及其他商业船只的安装。

标准

IEC 60092-350/360/376
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

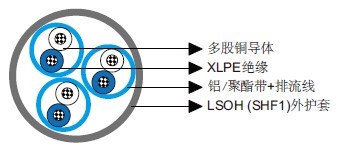

结构

导体:Class 2多股铜导体。
绝缘:XLPE。
成缆单元:对/三线组。
单独屏蔽:铝/聚酯带。
排流线:镀锡铜丝。
外护套:LSOH(SHF1)。SHF2可选。

线芯识别

对:白/蓝色印有对数及芯数。
三线组:白/蓝/红色印有三线组数。

机械和热性能

固定安装弯曲半径:4×OD
温度范围:-30℃ ~ +80℃

尺寸和重量

订货代码 结构 芯数×截面积
(mm²)
标称绝缘厚度
mm
标称护套厚度
mm
标称外径
mm
标称重量
kg/km
MRE-2XH PiMF-1P0.75 1×2×0.75 0.5 1.0 7.1 70
MRE-2XH PiMF-2P0.75 2×2×0.75 0.5 1.1 10.8 140
MRE-2XH PiMF-3P0.75 3×2×0.75 0.5 1.2 11.8 180
MRE-2XH PiMF-4P0.75 4×2×0.75 0.5 1.2 12.5 210
MRE-2XH PiMF-5P0.75 5×2×0.75 0.5 1.3 14.2 260
MRE-2XH PiMF-6P0.75 6×2×0.75 0.5 1.3 15.2 300
MRE-2XH PiMF-7P0.75 7×2×0.75 0.5 1.3 15.2 330
MRE-2XH PiMF-8P0.75 8×2×0.75 0.5 1.3 16.1 370
MRE-2XH PiMF-10P0.75 10×2×0.75 0.5 1.4 18.3 460
MRE-2XH PiMF-12P0.75 12×2×0.75 0.5 1.4 19.0 520
MRE-2XH PiMF-14P0.75 14×2×0.75 0.5 1.5 20.0 600
MRE-2XH PiMF-16P0.75 16×2×0.75 0.5 1.5 21.4 670
MRE-2XH PiMF-19P0.75 19×2×0.75 0.5 1.6 23.1 790
MRE-2XH PiMF-20P0.75 20×2×0.75 0.5 1.6 23.1 810
MRE-2XH PiMF-24P0.75 24×2×0.75 0.5 1.7 26.5 1000
MRE-2XH PiMF-30P0.75 30×2×0.75 0.5 1.8 28.9 1220
MRE-2XH PiMF-37P0.75 37×2×0.75 0.5 1.9 31.1 1470
MRE-2XH PiMF-1P1.0 1×2×1.0 0.5 1.0 7.5 80
MRE-2XH PiMF-2P1.0 2×2×1.0 0.5 1.2 11.7 170
MRE-2XH PiMF-3P1.0 3×2×1.0 0.5 1.2 12.5 210
MRE-2XH PiMF-4P1.0 4×2×1.0 0.5 1.2 13.3 250
MRE-2XH PiMF-5P1.0 5×2×1.0 0.5 1.3 15.1 310
MRE-2XH PiMF-6P1.0 6×2×1.0 0.5 1.3 16.2 360
MRE-2XH PiMF-7P1.0 7×2×1.0 0.5 1.3 16.2 400
MRE-2XH PiMF-8P1.0 8×2×1.0 0.5 1.4 17.4 450
MRE-2XH PiMF-10P1.0 10×2×1.0 0.5 1.5 19.7 570
MRE-2XH PiMF-12P1.0 12×2×1.0 0.5 1.5 20.5 650
MRE-2XH PiMF-14P1.0 14×2×1.0 0.5 1.5 21.3 730
MRE-2XH PiMF-16P1.0 16×2×1.0 0.5 1.6 23.1 840
MRE-2XH PiMF-19P1.0 19×2×1.0 0.5 1.7 24.9 980
MRE-2XH PiMF-20P1.0 20×2×1.0 0.5 1.7 24.9 1020
MRE-2XH PiMF-24P1.0 24×2×1.0 0.5 1.8 28.5 1250
MRE-2XH PiMF-30P1.0 30×2×1.0 0.5 1.9 31.1 1520
MRE-2XH PiMF-37P1.0 37×2×1.0 0.5 2.0 33.5 1830
MRE-2XH TiMF-1T0.75 1×3×0.75 0.5 1.0 7.5 80
MRE-2XH TiMF-2T0.75 2×3×0.75 0.5 1.2 12.0 170
MRE-2XH TiMF-3T0.75 3×3×0.75 0.5 1.2 12.7 210
MRE-2XH TiMF-4T0.75 4×3×0.75 0.5 1.3 14.1 270
MRE-2XH TiMF-5T0.75 5×3×0.75 0.5 1.3 15.6 330
MRE-2XH TiMF-6T0.75 6×3×0.75 0.5 1.4 17.7 400
MRE-2XH TiMF-7T0.75 7×3×0.75 0.5 1.4 17.7 430
MRE-2XH TiMF-8T0.75 8×3×0.75 0.5 1.4 19.0 490
MRE-2XH TiMF-10T0.75 10×3×0.75 0.5 1.5 21.6 620
MRE-2XH TiMF-12T0.75 12×3×0.75 0.5 1.6 23.0 720
MRE-2XH TiMF-14T0.75 14×3×0.75 0.5 1.6 24.0 810
MRE-2XH TiMF-16T0.75 16×3×0.75 0.5 1.7 25.7 920
MRE-2XH TiMF-19T0.75 19×3×0.75 0.5 1.8 27.8 1090
MRE-2XH TiMF-20T0.75 20×3×0.75 0.5 1.8 28.3 1130
MRE-2XH TiMF-24T0.75 24×3×0.75 0.5 1.9 30.9 1350
MRE-2XH TiMF-30T0.75 30×3×0.75 0.5 2.0 34.3 1660
MRE-2XH TiMF-32T0.75 32×3×0.75 0.5 2.1 35.7 1790
MRE-2XH TiMF-1T1.0 1×3×1.0 0.5 1.0 7.9 100
MRE-2XH TiMF-2T1.0 2×3×1.0 0.5 1.2 12.7 200
MRE-2XH TiMF-3T1.0 3×3×1.0 0.5 1.2 13.5 260
MRE-2XH TiMF-4T1.0 4×3×1.0 0.5 1.3 15.0 330
MRE-2XH TiMF-5T1.0 5×3×1.0 0.5 1.4 16.8 400
MRE-2XH TiMF-6T1.0 6×3×1.0 0.5 1.4 18.9 490
MRE-2XH TiMF-7T1.0 7×3×1.0 0.5 1.4 18.9 530
MRE-2XH TiMF-8T1.0 8×3×1.0 0.5 1.5 20.5 610
MRE-2XH TiMF-10T1.0 10×3×1.0 0.5 1.6 23.3 760
MRE-2XH TiMF-12T1.0 12×3×1.0 0.5 1.6 24.6 880
MRE-2XH TiMF-14T1.0 14×3×1.0 0.5 1.7 25.9 1010
MRE-2XH TiMF-16T1.0 16×3×1.0 0.5 1.8 27.7 1150
MRE-2XH TiMF-19T1.0 19×3×1.0 0.5 1.8 29.8 1340
MRE-2XH TiMF-20T1.0 20×3×1.0 0.5 1.9 30.5 1410
MRE-2XH TiMF-24T1.0 24×3×1.0 0.5 2.0 33.3 1680
MRE-2XH TiMF-30T1.0 30×3×1.0 0.5 2.1 37.0 2070
MRE-2XH TiMF-32T1.0 32×3×1.0 0.5 2.2 38.5 2220
