TFOI (i) /TFOU (i) (MRE-2XCH PiMF/TiMF) 150/250V XLPE绝缘,LSOH(SHF1)护套,单独屏蔽&铠装阻燃仪表&控制缆(多对/多三线组)

IEC 60092标准MRE-2XCH PiMF/TiMF 150/250V XLPE绝缘,LSOH(SHF1)护套,单独屏蔽&铠装阻燃仪表&控制缆(多对/多三线组)

应用

该电缆适用于船上任意位置的固定安装,符合IEC 60092-352标准。该电缆阻燃、低压、无卤,适合客船及其他商业船只的安装。

标准

IEC 60092-350/360/376
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

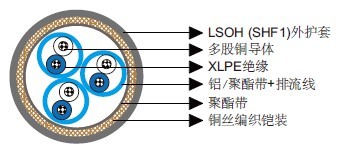

结构

导体:Class 2多股铜导体。
绝缘:XLPE。
成缆单元:对/三线组。
单独屏蔽:铝/聚酯带。
排流线:镀锡铜丝。
内衬层:绕包聚酯带。
铠装:铜丝编织。
外护套:LSOH(SHF1)。SHF2可选。

线芯识别

对:白/蓝色印有对数及芯数。
三线组:白/蓝/红色印有三线组数。

机械和热性能

固定安装弯曲半径:6×OD
温度范围:-30℃ ~ +80℃

尺寸和重量

订货代码 结构单元数×每单元芯数×截
面积(mm²)
标称绝缘厚度
mm
标称护套厚度
mm
标称外径
mm
标称重量
kg/km
MRE-2XCH PiMF-1P0.75 1×2×0.75 0.5 1.2 8.3 110
MRE-2XCH PiMF-2P0.75 2×2×0.75 0.5 1.4 12.2 200
MRE-2XCH PiMF-3P0.75 3×2×0.75 0.5 1.4 13.0 240
MRE-2XCH PiMF-4P0.75 4×2×0.75 0.5 1.7 14.4 310
MRE-2XCH PiMF-5P0.75 5×2×0.75 0.5 1.7 15.9 370
MRE-2XCH PiMF-6P0.75 6×2×0.75 0.5 1.9 17.1 430
MRE-2XCH PiMF-7P0.75 7×2×0.75 0.5 1.9 17.1 450
MRE-2XCH PiMF-8P0.75 8×2×0.75 0.5 1.9 18.0 500
MRE-2XCH PiMF-10P0.75 10×2×0.75 0.5 2.0 20.2 610
MRE-2XCH PiMF-12P0.75 12×2×0.75 0.5 2.0 20.9 680
MRE-2XCH PiMF-14P0.75 14×2×0.75 0.5 2.0 21.7 750
MRE-2XCH PiMF-16P0.75 16×2×0.75 0.5 2.1 23.3 850
MRE-2XCH PiMF-19P0.75 19×2×0.75 0.5 2.2 25.0 980
MRE-2XCH PiMF-20P0.75 20×2×0.75 0.5 2.2 25.0 1010
MRE-2XCH PiMF-24P0.75 24×2×0.75 0.5 2.3 28.4 1220
MRE-2XCH PiMF-30P0.75 30×2×0.75 0.5 2.4 30.8 1460
MRE-2XCH PiMF-37P0.75 37×2×0.75 0.5 2.5 33.0 1720
MRE-2XCH PiMF-1P1.0 1×2×1.0 0.5 1.3 8.9 120
MRE-2XCH PiMF-2P1.0 2×2×1.0 0.5 1.4 12.9 230
MRE-2XCH PiMF-3P1.0 3×2×1.0 0.5 1.8 14.4 310
MRE-2XCH PiMF-4P1.0 4×2×1.0 0.5 1.8 15.2 360
MRE-2XCH PiMF-5P1.0 5×2×1.0 0.5 1.8 17.0 440
MRE-2XCH PiMF-6P1.0 6×2×1.0 0.5 1.8 18.1 500
MRE-2XCH PiMF-7P1.0 7×2×1.0 0.5 1.8 18.1 530
MRE-2XCH PiMF-8P1.0 8×2×1.0 0.5 1.8 19.1 590
MRE-2XCH PiMF-10P1.0 10×2×1.0 0.5 2.0 21.4 720
MRE-2XCH PiMF-12P1.0 12×2×1.0 0.5 2.1 22.4 820
MRE-2XCH PiMF-14P1.0 14×2×1.0 0.5 2.1 23.2 900
MRE-2XCH PiMF-16P1.0 16×2×1.0 0.5 2.2 25.0 1030
MRE-2XCH PiMF-19P1.0 19×2×1.0 0.5 2.2 26.6 1180
MRE-2XCH PiMF-20P1.0 20×2×1.0 0.5 2.2 26.6 1210
MRE-2XCH PiMF-24P1.0 24×2×1.0 0.5 2.4 30.4 1480
MRE-2XCH PiMF-30P1.0 30×2×1.0 0.5 2.5 33.0 1780
MRE-2XCH PiMF-37P1.0 37×2×1.0 0.5 2.5 35.2 2090
MRE-2XCH PiMF-1P1.5 1×2×1.5 0.6 1.3 9.9 150
MRE-2XCH PiMF-2P1.5 2×2×1.5 0.6 1.8 15.3 320
MRE-2XCH PiMF-3P1.5 3×2×1.5 0.6 1.8 16.3 390
MRE-2XCH PiMF-4P1.5 4×2×1.5 0.6 1.8 17.4 460
MRE-2XCH PiMF-5P1.5 5×2×1.5 0.6 1.8 19.5 560
MRE-2XCH PiMF-6P1.5 6×2×1.5 0.6 2.0 20.8 640
MRE-2XCH PiMF-7P1.5 7×2×1.5 0.6 2.0 20.8 690
MRE-2XCH PiMF-8P1.5 8×2×1.5 0.6 2.1 22.2 770
MRE-2XCH PiMF-10P1.5 10×2×1.5 0.6 2.2 24.9 950
MRE-2XCH PiMF-12P1.5 12×2×1.5 0.6 2.2 25.9 1070
MRE-2XCH PiMF-14P1.5 14×2×1.5 0.6 2.2 26.8 1180
MRE-2XCH PiMF-16P1.5 16×2×1.5 0.6 2.3 28.9 1350
MRE-2XCH PiMF-19P1.5 19×2×1.5 0.6 2.4 31.0 1560
MRE-2XCH PiMF-20P1.5 20×2×1.5 0.6 2.4 31.0 1600
MRE-2XCH PiMF-24P1.5 24×2×1.5 0.6 2.5 35.3 1950
MRE-2XCH PiMF-30P1.5 30×2×1.5 0.6 2.9 39.0 2450
MRE-2XCH PiMF-37P1.5 37×2×1.5 0.6 3.0 41.8 2900
MRE-2XCH TiMF-1T0.75 1×3×0.75 0.5 1.3 8.9 120
MRE-2XCH TiMF-2T0.75 2×3×0.75 0.5 1.4 13.2 230
MRE-2XCH TiMF-3T0.75 3×3×0.75 0.5 1.8 14.6 320
MRE-2XCH TiMF-4T0.75 4×3×0.75 0.5 1.8 15.8 380
MRE-2XCH TiMF-5T0.75 5×3×0.75 0.5 1.8 17.5 460
MRE-2XCH TiMF-6T0.75 6×3×0.75 0.5 2.0 19.6 550
MRE-2XCH TiMF-7T0.75 7×3×0.75 0.5 2.0 19.6 580
MRE-2XCH TiMF-8T0.75 8×3×0.75 0.5 2.0 20.9 650
MRE-2XCH TiMF-10T0.75 10×3×0.75 0.5 2.1 23.5 800
MRE-2XCH TiMF-12T0.75 12×3×0.75 0.5 2.2 24.9 910
MRE-2XCH TiMF-14T0.75 14×3×0.75 0.5 2.2 25.9 1010
MRE-2XCH TiMF-16T0.75 16×3×0.75 0.5 2.3 27.6 1140
MRE-2XCH TiMF-19T0.75 19×3×0.75 0.5 2.3 29.5 1300
MRE-2XCH TiMF-20T0.75 20×3×0.75 0.5 2.3 30.0 1350
MRE-2XCH TiMF-24T0.75 24×3×0.75 0.5 2.4 32.6 1590
MRE-2XCH TiMF-30T0.75 30×3×0.75 0.5 2.8 36.7 2030
MRE-2XCH TiMF-32T0.75 32×3×0.75 0.5 2.8 37.9 2150
MRE-2XCH TiMF-1T1.0 1×3×1.0 0.5 1.3 9.3 140
MRE-2XCH TiMF-2T1.0 2×3×1.0 0.5 1.8 14.6 310
MRE-2XCH TiMF-3T1.0 3×3×1.0 0.5 1.8 15.4 370
MRE-2XCH TiMF-4T1.0 4×3×1.0 0.5 1.8 16.9 450
MRE-2XCH TiMF-5T1.0 5×3×1.0 0.5 1.8 18.5 530
MRE-2XCH TiMF-6T1.0 6×3×1.0 0.5 2.0 20.8 640
MRE-2XCH TiMF-7T1.0 7×3×1.0 0.5 2.0 20.8 680
MRE-2XCH TiMF-8T1.0 8×3×1.0 0.5 2.1 22.4 780
MRE-2XCH TiMF-10T1.0 10×3×1.0 0.5 2.2 25.2 960
MRE-2XCH TiMF-12T1.0 12×3×1.0 0.5 2.2 26.5 1080
MRE-2XCH TiMF-14T1.0 14×3×1.0 0.5 2.3 27.8 1220
MRE-2XCH TiMF-16T1.0 16×3×1.0 0.5 2.3 29.4 1360
MRE-2XCH TiMF-19T1.0 19×3×1.0 0.5 2.4 31.7 1580
MRE-2XCH TiMF-20T1.0 20×3×1.0 0.5 2.4 32.2 1640
MRE-2XCH TiMF-24T1.0 24×3×1.0 0.5 2.5 35.0 1930
MRE-2XCH TiMF-30T1.0 30×3×1.0 0.5 2.9 39.4 2470
MRE-2XCH TiMF-32T1.0 32×3×1.0 0.5 2.9 40.7 2620
MRE-2XCH TiMF-1T1.5 1×3×1.5 0.6 1.3 10.4 170
MRE-2XCH TiMF-2T1.5 2×3×1.5 0.6 1.8 16.5 380
MRE-2XCH TiMF-3T1.5 3×3×1.5 0.6 1.9 17.7 480
MRE-2XCH TiMF-4T1.5 4×3×1.5 0.6 1.9 19.2 570
MRE-2XCH TiMF-5T1.5 5×3×1.5 0.6 1.9 21.3 690
MRE-2XCH TiMF-6T1.5 6×3×1.5 0.6 2.1 24.0 840
MRE-2XCH TiMF-7T1.5 7×3×1.5 0.6 2.1 24.0 900
MRE-2XCH TiMF-8T1.5 8×3×1.5 0.6 2.2 25.8 1020
MRE-2XCH TiMF-10T1.5 10×3×1.5 0.6 2.3 29.1 1260
MRE-2XCH TiMF-12T1.5 12×3×1.5 0.6 2.4 30.9 1450
MRE-2XCH TiMF-14T1.5 14×3×1.5 0.6 2.4 32.2 1620
MRE-2XCH TiMF-16T1.5 16×3×1.5 0.6 2.5 34.3 1830
MRE-2XCH TiMF-19T1.5 19×3×1.5 0.6 2.8 37.5 2210
MRE-2XCH TiMF-20T1.5 20×3×1.5 0.6 2.8 38.1 2300
MRE-2XCH TiMF-24T1.5 24×3×1.5 0.6 3.0 41.6 2720
MRE-2XCH TiMF-30T1.5 30×3×1.5 0.6 3.1 45.9 3310
MRE-2XCH TiMF-32T1.5 32×3×1.5 0.6 3.2 47.7 3530
