3GKW-MW/S 0.6/1KV中等壁多芯电缆
应用
多芯电力及控制电缆，适合铁路车辆内外保护性，固定安装，用于直流或交流电技术特别是变流技术中固定或移动部件的连接。标准
BS 6853 -1aDIN 5510-2 1-4
NFF 16-101 F0

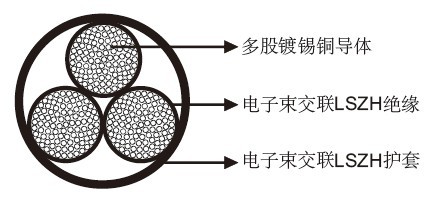

结构
导体：Class 5 多股镀锡铜导体，遵照IEC 60228/VDE 0295 标准。绝缘：电子束交联LSZH 材料。
护套：电子束交联LSZH 材料。。
20℃时的电气特性
| 标称导体截面积 | mm² | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4.0 | 6.0 | 10 | 16 | 25 | 35 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 最大导体电阻 | Ω/km | 40.1 | 26.7 | 20.0 | 13.7 | 8.21 | 5.09 | 3.39 | 1.95 | 1.24 | 0.795 | 0.565 |
| 电压 | KV | 0.6/1 | ||||||||||
机械和热性能
最小弯曲半径：4xOD ( 固定安装) ；6xOD ( 移动安装)温度范围：-60℃ ~+120℃ ( 固定安装) ；-40℃ ~+90℃ ( 移动安装)
短路温度：+280℃。
尺寸和重量
| 芯数&标称导体截面积 No.×mm² |
导体股数/每股直径 No/mm |
标称绝缘厚度 mm |
标称外径 mm |
标称重量 kg/km |
|
|---|---|---|---|---|---|
| 2×0.5 | 19/0.18 | 16/0.20 | 0.5 | 5.9 | 39 |
| 3×0.5 | 19/0.18 | 16/0.20 | 0.5 | 6.1 | 50 |
| 4×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.0 | 55 |
| 5×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.3 | 74 |
| 6×0.5 | 19/0.18 | 16/0.20 | 0.5 | 7.5 | 85 |
| 7×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.1 | 99 |
| 8×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.3 | 111 |
| 9×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.5 | 114 |
| 10×0.5 | 19/0.18 | 16/0.20 | 0.5 | 9.5 | 122 |
| 12×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.0 | 145 |
| 14×0.5 | 19/0.18 | 16/0.20 | 0.5 | 10.5 | 163 |
| 16×0.5 | 19/0.18 | 16/0.20 | 0.5 | 11.2 | 185 |
| 18×0.5 | 19/0.18 | 16/0.20 | 0.5 | 12.7 | 205 |
| 20×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.0 | 233 |
| 24×0.5 | 19/0.18 | 16/0.20 | 0.5 | 13.9 | 264 |
| 27×0.5 | 19/0.18 | 16/0.20 | 0.5 | 14.5 | 295 |
| 36×0.5 | 19/0.18 | 16/0.20 | 0.5 | 16.3 | 386 |
| 48×0.5 | 19/0.18 | 16/0.20 | 0.5 | 19.0 | 516 |
| 2×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.0 | 49 |
| 3×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.8 | 63 |
| 4×0.75 | 19/0.21 | 24/0.20 | 0.5 | 6.9 | 77 |
| 5×0.75 | 19/0.21 | 24/0.20 | 0.5 | 8.4 | 96 |
| 6×0.75 | 19/0.21 | 24/0.20 | 0.5 | 8.7 | 107 |
| 7×0.75 | 19/0.21 | 24/0.20 | 0.5 | 9.1 | 131 |
| 8×0.75 | 19/0.21 | 24/0.20 | 0.5 | 10.9 | 147 |
| 9×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.3 | 152 |
| 10×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.6 | 162 |
| 12×0.75 | 19/0.21 | 24/0.20 | 0.5 | 11.9 | 175 |
| 14×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.1 | 213 |
| 16×0.75 | 19/0.21 | 24/0.20 | 0.5 | 12.4 | 241 |
| 20×0.75 | 19/0.21 | 24/0.20 | 0.5 | 15.2 | 325 |
| 24×0.75 | 19/0.21 | 24/0.20 | 0.5 | 15.6 | 349 |
| 27×0.75 | 19/0.21 | 24/0.20 | 0.5 | 16.1 | 385 |
| 36×0.75 | 19/0.21 | 24/0.20 | 0.5 | 18.1 | 505 |
| 48×0.75 | 19/0.21 | 24/0.20 | 0.5 | 21.2 | 678 |
| 2×1.0 | 32/0.20 | 0.55 | 6.4 | 59 | |
| 3×1.0 | 32/0.20 | 0.55 | 6.8 | 78 | |
| 4×1.0 | 32/0.20 | 0.55 | 7.4 | 93 | |
| 5×1.0 | 32/0.20 | 0.55 | 8.3 | 115 | |
| 6×1.0 | 32/0.20 | 0.55 | 10.0 | 130 | |
| 7×1.0 | 32/0.20 | 0.55 | 10.3 | 158 | |
| 8×1.0 | 32/0.20 | 0.55 | 10.7 | 181 | |
| 9×1.0 | 32/0.20 | 0.55 | 12.5 | 200 | |
| 10×1.0 | 32/0.20 | 0.55 | 12.7 | 210 | |
| 12×1.0 | 32/0.20 | 0.55 | 12.9 | 234 | |
| 14×1.0 | 32/0.20 | 0.55 | 13.2 | 265 | |
| 16×1.0 | 32/0.20 | 0.55 | 13.5 | 300 | |
| 20×1.0 | 32/0.20 | 0.55 | 14.7 | 377 | |
| 24×1.0 | 32/0.20 | 0.55 | 16.9 | 433 | |
| 25×1.0 | 32/0.20 | 0.55 | 18.7 | 519 | |
| 27×1.0 | 32/0.20 | 0.55 | 19.0 | 600 | |
| 36×1.0 | 32/0.20 | 0.55 | 19.9 | 644 | |
| 48×1.0 | 32/0.20 | 0.55 | 22.9 | 837 | |
| 2×1.5 | 30/0.25 | 0.55 | 7.5 | 75 | |
| 3×1.5 | 30/0.25 | 0.55 | 8.0 | 96 | |
| 4×1.5 | 30/0.25 | 0.55 | 8.3 | 120 | |
| 5×1.5 | 30/0.25 | 0.55 | 10.2 | 146 | |
| 6×1.5 | 30/0.25 | 0.55 | 11.6 | 173 | |
| 7×1.5 | 30/0.25 | 0.55 | 12.1 | 185 | |
| 8×1.5 | 30/0.25 | 0.55 | 12.5 | 207 | |
| 9×1.5 | 30/0.25 | 0.55 | 12.9 | 210 | |
| 10×1.5 | 30/0.25 | 0.55 | 13.3 | 236 | |
| 12×1.5 | 30/0.25 | 0.55 | 14.2 | 305 | |
| 14×1.5 | 30/0.25 | 0.55 | 14.6 | 346 | |
| 16×1.5 | 30/0.25 | 0.55 | 15.0 | 393 | |
| 20×1.5 | 30/0.25 | 0.55 | 16.5 | 500 | |
| 24×1.5 | 30/0.25 | 0.55 | 19.1 | 582 | |
| 27×1.5 | 30/0.25 | 0.55 | 19.7 | 644 | |
| 36×1.5 | 30/0.25 | 0.55 | 23.0 | 905 | |
| 48×1.5 | 30/0.25 | 0.55 | 25.7 | 1120 | |
| 2×2.5 | 50/0.25 | 0.6 | 8.5 | 115 | |
| 3×2.5 | 50/0.25 | 0.6 | 8.9 | 149 | |
| 4×2.5 | 50/0.25 | 0.6 | 9.9 | 183 | |
| 5×2.5 | 50/0.25 | 0.6 | 11.1 | 228 | |
| 6×2.5 | 50/0.25 | 0.6 | 12.1 | 265 | |
| 7×2.5 | 50/0.25 | 0.6 | 13.0 | 309 | |
| 8×2.5 | 50/0.25 | 0.6 | 14.3 | 360 | |
| 9×2.5 | 50/0.25 | 0.6 | 15.4 | 366 | |
| 10×2.5 | 50/0.25 | 0.6 | 15.1 | 400 | |
| 12×2.5 | 50/0.25 | 0.6 | 15.9 | 467 | |
| 14×2.5 | 50/0.25 | 0.6 | 16.5 | 532 | |
| 16×2.5 | 50/0.25 | 0.6 | 17.5 | 600 | |
| 20×2.5 | 50/0.25 | 0.6 | 20.1 | 777 | |
| 24×2.5 | 50/0.25 | 0.6 | 21.4 | 873 | |
| 27×2.5 | 50/0.25 | 0.6 | 22.5 | 972 | |
| 2×4 | 56/0.30 | 0.65 | 9.5 | 151 | |
| 3×4 | 56/0.30 | 0.65 | 10.2 | 207 | |
| 4×4 | 56/0.30 | 0.65 | 11.3 | 261 | |
| 5×4 | 56/0.30 | 0.65 | 12.6 | 324 | |
| 6×4 | 56/0.30 | 0.65 | 13.9 | 379 | |
| 7×4 | 56/0.30 | 0.65 | 15.2 | 433 | |
| 8×4 | 56/0.30 | 0.65 | 16.3 | 518 | |
| 9×4 | 56/0.30 | 0.65 | 17.5 | 550 | |
| 10×4 | 56/0.30 | 0.65 | 17.7 | 581 | |
| 12×4 | 56/0.30 | 0.65 | 18.3 | 675 | |
| 14×4 | 56/0.30 | 0.65 | 19.2 | 785 | |
| 16×4 | 56/0.30 | 0.65 | 20.4 | 886 | |
| 20×4 | 56/0.30 | 0.65 | 23.0 | 1129 | |
| 24×4 | 56/0.30 | 0.65 | 24.7 | 1276 | |
| 27×4 | 56/0.30 | 0.65 | 26.1 | 1435 | |
| 2×6 | 84/0.30 | 0.7 | 10.7 | 205 | |
| 3×6 | 84/0.30 | 0.7 | 11.4 | 279 | |
| 4×6 | 84/0.30 | 0.7 | 12.6 | 353 | |
| 5×6 | 84/0.30 | 0.7 | 14.0 | 436 | |
| 6×6 | 84/0.30 | 0.7 | 15.7 | 501 | |
| 7×6 | 84/0.30 | 0.7 | 17.2 | 597 | |
| 2×10 | 80/0.40 | 0.8 | 12.8 | 313 | |
| 3×10 | 80/0.40 | 0.8 | 13.7 | 433 | |
| 4×10 | 80/0.40 | 0.8 | 15.4 | 514 | |
| 5×10 | 80/0.40 | 0.8 | 17.0 | 641 | |
| 6×10 | 80/0.40 | 0.8 | 19.1 | 794 | |
| 7×10 | 80/0.40 | 0.8 | 20.7 | 919 | |
| 2×16 | 119/0.40 | 126/0.40 | 0.9 | 16.5 | 482 |
| 3×16 | 119/0.40 | 126/0.40 | 0.9 | 17.6 | 590 |
| 4×16 | 119/0.40 | 126/0.40 | 0.9 | 19.8 | 787 |
| 5×16 | 119/0.40 | 126/0.40 | 0.9 | 22.1 | 992 |
| 6×16 | 119/0.40 | 126/0.40 | 0.9 | 24.3 | 1192 |
| 7×16 | 119/0.40 | 126/0.40 | 0.9 | 26.5 | 1409 |
| 2×25 | 182/0.40 | 196/0.40 | 1.0 | 19.9 | 716 |
| 3×25 | 182/0.40 | 196/0.40 | 1.0 | 21.4 | 899 |
| 4×25 | 182/0.40 | 196/0.40 | 1.0 | 23.8 | 1182 |
| 5×25 | 182/0.40 | 196/0.40 | 1.0 | 26.4 | 1482 |
| 6×25 | 182/0.40 | 196/0.40 | 1.0 | 29.9 | 1818 |
| 7×25 | 182/0.40 | 196/0.40 | 1.0 | 32.1 | 2128 |
| 2×35 | 266/0.40 | 276/0.40 | 1.1 | 22.3 | 775 |
| 3×35 | 266/0.40 | 276/0.40 | 1.1 | 24.0 | 938 |
| 4×35 | 266/0.40 | 276/0.40 | 1.1 | 26.7 | 1230 |
| 5×35 | 266/0.40 | 276/0.40 | 1.1 | 29.6 | 1543 |
| 6×35 | 266/0.40 | 276/0.40 | 1.1 | 33.3 | 1890 |
| 7×35 | 266/0.40 | 276/0.40 | 1.1 | 36.7 | 2263 |
