BS EN 50288-7仪表电缆PVC绝缘,PVC护套,总屏蔽&铠装仪表电缆(多芯)
RE-Y(St)YSWAY 90°C/500V

BS EN 50288-7多芯总屏蔽铠装仪表电缆

应用

EN 50288-7标准仪表电缆用于仪表控制系统中模拟信号和数字信号的传输,根据IEC79-14分类,可用于II组1区和2区环境中,不能直接连接在低阻抗电源,例如公共电力供应站。 推荐应用在室内和室外安装,支架,托盘,管道,干湿环境中,不推荐直埋使用。 推荐应用在生命和重要财产物资的消防防火措施中。

标准

基本设计遵循EN 50288-7标准

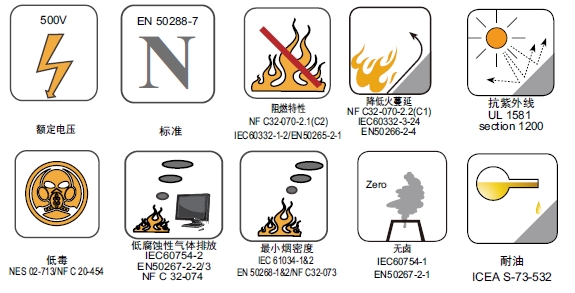

防火特性

阻燃特性(单根电缆垂直燃烧测试) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
降低火蔓延(多根电缆成束垂直火焰燃烧测试)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1);CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
无卤 IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
电缆燃烧腐蚀性气体零排放 IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
电缆燃烧最小烟密度 IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
电缆无毒测试 NES 02-713; NF C 20-454
抗紫外线 UL 1581 section 1200
耐油 ICEA S-73-532**

备注:*为已替换的标准,***为可选标准。

额定电压

500V

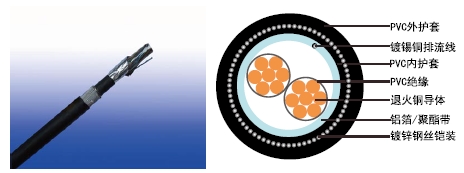

电缆结构

导体 IEC 60228标准1类实心退火铜导体或2类多股平纹铜导体。
绝缘 EN 50290-2-21标准PVC复合物绝缘。
总屏蔽 带有0.5mm2镀锡铜排流线的铝带/聚酯带层屏蔽。
内护套 热塑性PVC复合物。
铠装 镀锌钢丝铠装
外护套 EN 50290-2-22标准热塑性PVC复合物。防紫外线,耐烃,耐油,防啮齿和防白蚁特性都是可选的。符合防火阻燃性能标准(IEC 60332-1,IEC60332-3,UL 1581,UL1666等)取决于PVC复合物氧指数和电缆设计。LSPVC根据要求可选。
颜色 绝缘:黑色。外护套:黑色或蓝色(本安系统)

物理性能和热性能

工作温度范围(固定状态下):-30°C – +90°C

安装温度范围(运动状态):-5°C – +50°C

最小弯曲半径:10 X 外径

抗紫外线:UL 1581 section 1200

耐油:ICEA S-73-532(测试温度 +60°C, 持续4小时。4小时过程中,保持拉伸强度和伸长率最小值为60%。)

电气性能

导体截面积 mm2 0.5 0.75 1 1.3 1.5 2.5
标称绝缘厚度 mm 0.6 0.6 0.6 0.6 0.6 0.7
导体电阻 (20°C) Ω/km 36.7 25 18.5 14.2 12.3 7.4
绝缘电阻 (20°C) MΩ.km(Min.) 5000
交互电容 (1 kHz) pF/m(Max.) 115
电容不平衡值(1 kHz) pF/500 m (Max.) 500
感应系数 mH/km(Max.) 1
感应系数/阻抗比例 μH/Ω(Max.) 25 25 25 40 40 60
工作电压 V 500
测试电压 Urms 线芯之间 V 2000
线芯与屏蔽之间 V 2000

结构参数

电缆型号 RE-Y(St)YSWAY
芯数×1×截面积 标称绝缘厚度 标称内护套厚度 标称内护套层总外径 标称铠装层厚度 标称外护套厚度 标称总外径 标称总重量
No.x1xmm2 mm mm mm mm mm mm kg/km
0.5mm2,多芯
RE-Y(St)YSWAY 2C0.5 2x1x0.5 0.6 0.9 6.2 0.9 1.3 10.6 210
RE-Y(St)YSWAY 3C0.5 3x1x0.5 0.6 0.9 6.5 0.9 1.3 10.9 230
RE-Y(St)YSWAY 4C0.5 4x1x0.5 0.6 0.9 7 0.9 1.3 11.4 253
RE-Y(St)YSWAY 5C0.5 5x1x0.5 0.6 0.9 7.6 0.9 1.3 12 283
RE-Y(St)YSWAY 8C0.5 8x1x0.5 0.6 1 9.1 0.9 1.4 13.7 344
RE-Y(St)YSWAY 10C0.5 10x1x0.5 0.6 1 10.4 0.9 1.4 15 399
RE-Y(St)YSWAY 12C0.5 12x1x0.5 0.6 1 10.7 0.9 1.4 15.3 442
RE-Y(St)YSWAY 14C0.5 14x1x0.5 0.6 1 11.3 0.9 1.4 15.9 474
RE-Y(St)YSWAY 16C0.5 16x1x0.5 0.6 1.1 11.8 0.9 1.4 16.4 505
RE-Y(St)YSWAY 20C0.5 20x1x0.5 0.6 1.1 13.3 0.9 1.5 18.1 569
RE-Y(St)YSWAY 24C0.5 24x1x0.5 0.6 1.1 14.7 0.9 1.5 19.5 642
RE-Y(St)YSWAY 27C0.5 27x1x0.5 0.6 1.2 15 0.9 1.5 19.8 808
RE-Y(St)YSWAY 30C0.5 30x1x0.5 0.6 1.2 15.7 0.9 1.5 20.5 848
RE-Y(St)YSWAY 37C0.5 37x1x0.5 0.6 1.2 16.9 0.9 1.6 21.9 963
RE-Y(St)YSWAY 40C0.5 40x1x0.5 0.6 1.2 17.6 1.25 1.6 23.3 1014
0.75mm2,多芯
RE-Y(St)YSWAY 2C0.75 2x1x0.75 0.6 0.9 6.5 0.9 1.3 10.9 230
RE-Y(St)YSWAY 3C0.75 3x1x0.75 0.6 0.9 6.9 0.9 1.3 11.3 247
RE-Y(St)YSWAY 4C0.75 4x1x0.75 0.6 0.9 7.4 0.9 1.3 11.8 278
RE-Y(St)YSWAY 5C0.75 5x1x0.75 0.6 0.9 8.1 0.9 1.4 12.7 322
RE-Y(St)YSWAY 8C0.75 8x1x0.75 0.6 1 9.7 0.9 1.4 14.3 383
RE-Y(St)YSWAY 10C0.75 10x1x0.75 0.6 1 11.1 0.9 1.4 15.7 461
RE-Y(St)YSWAY 12C0.75 12x1x0.75 0.6 1 11.5 0.9 1.4 16.1 477
RE-Y(St)YSWAY 14C0.75 14x1x0.75 0.6 1.1 12.2 0.9 1.5 17 527
RE-Y(St)YSWAY 16C0.75 16x1x0.75 0.6 1.1 12.9 0.9 1.5 17.7 572
RE-Y(St)YSWAY 20C0.75 20x1x0.75 0.6 1.1 14.3 0.9 1.5 19.1 669
RE-Y(St)YSWAY 24C0.75 24x1x0.75 0.6 1.2 16 0.9 1.5 20.8 877
RE-Y(St)YSWAY 27C0.75 27x1x0.75 0.6 1.2 16.3 0.9 1.6 21.3 929
RE-Y(St)YSWAY 30C0.75 30x1x0.75 0.6 1.2 16.9 0.9 1.6 21.9 986
RE-Y(St)YSWAY 37C0.75 37x1x0.75 0.6 1.2 18.2 1.25 1.6 23.9 1102
RE-Y(St)YSWAY 40C0.75 40x1x0.75 0.6 1.3 19.1 1.25 1.6 24.8 1181
1.0mm2,多芯
RE-Y(St)YSWAY 2C1.0 2x1x1.0 0.6 0.9 6.9 0.9 1.3 11.3 247
RE-Y(St)YSWAY 3C1.0 3x1x1.0 0.6 0.9 7.3 0.9 1.3 11.7 270
RE-Y(St)YSWAY 4C1.0 4x1x1.0 0.6 0.9 7.9 0.9 1.4 12.5 299
RE-Y(St)YSWAY 5C1.0 5x1x1.0 0.6 0.9 8.6 0.9 1.4 13.2 342
RE-Y(St)YSWAY 8C1.0 8x1x1.0 0.6 1 10.3 0.9 1.4 14.9 424
RE-Y(St)YSWAY 10C1.0 10x1x1.0 0.6 1 11.9 0.9 1.4 16.5 514
RE-Y(St)YSWAY 12C1.0 12x1x1.0 0.6 1 12.2 0.9 1.5 17 548
RE-Y(St)YSWAY 14C1.0 14x1x1.0 0.6 1.1 13 0.9 1.5 17.8 590
RE-Y(St)YSWAY 16C1.0 16x1x1.0 0.6 1.1 13.7 0.9 1.5 18.5 649
RE-Y(St)YSWAY 20C1.0 20x1x1.0 0.6 1.1 15.2 0.9 1.5 20 864
RE-Y(St)YSWAY 24C1.0 24x1x1.0 0.6 1.2 17 0.9 1.6 22 1005
RE-Y(St)YSWAY 27C1.0 27x1x1.0 0.6 1.2 17.4 1.25 1.6 23.1 1058
RE-Y(St)YSWAY 30C1.0 30x1x1.0 0.6 1.2 18 1.25 1.6 23.7 1113
RE-Y(St)YSWAY 37C1.0 37x1x1.0 0.6 1.2 19.6 1.25 1.6 25.3 1271
RE-Y(St)YSWAY 40C1.0 40x1x1.0 0.6 1.3 20.4 1.25 1.7 26.3 1351
1.3mm2,多芯
RE-Y(St)YSWAY 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
RE-Y(St)YSWAY 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 295
RE-Y(St)YSWAY 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
RE-Y(St)YSWAY 5C1.3 5x1x1.3 0.6 1 9.5 0.9 1.4 14.1 383
RE-Y(St)YSWAY 8C1.3 8x1x1.3 0.6 1 11.2 0.9 1.4 15.8 483
RE-Y(St)YSWAY 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18 578
RE-Y(St)YSWAY 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
RE-Y(St)YSWAY 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
RE-Y(St)YSWAY 16C1.3 16x1x1.3 0.6 1.1 15 0.9 1.5 19.8 870
RE-Y(St)YSWAY 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
RE-Y(St)YSWAY 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
RE-Y(St)YSWAY 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25 1227
RE-Y(St)YSWAY 30C1.3 30x1x1.3 0.6 1.3 20 1.25 1.6 25.7 1305
RE-Y(St)YSWAY 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
RE-Y(St)YSWAY 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
1.5mm2,多芯
RE-Y(St)YSWAY 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
RE-Y(St)YSWAY 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 322
RE-Y(St)YSWAY 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 347
RE-Y(St)YSWAY 5C1.5 5x1x1.5 0.6 1 9.8 0.9 1.4 14.4 392
RE-Y(St)YSWAY 8C1.5 8x1x1.5 0.6 1 11.6 0.9 1.4 16.2 518
RE-Y(St)YSWAY 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 614
RE-Y(St)YSWAY 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 670
RE-Y(St)YSWAY 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
RE-Y(St)YSWAY 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
RE-Y(St)YSWAY 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1062
RE-Y(St)YSWAY 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
RE-Y(St)YSWAY 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1289
RE-Y(St)YSWAY 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1418
RE-Y(St)YSWAY 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
RE-Y(St)YSWAY 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1687
2.5mm2,多芯
RE-Y(St)YSWAY 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 364
RE-Y(St)YSWAY 3C2.5 3x1x2.5 0.7 1 9.7 0.9 1.4 14.3 389
RE-Y(St)YSWAY 4C2.5 4x1x2.5 0.7 1 10.5 0.9 1.4 15.1 430
RE-Y(St)YSWAY 5C2.5 5x1x2.5 0.7 1 11.9 0.9 1.4 16.5 547
RE-Y(St)YSWAY 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 684
RE-Y(St)YSWAY 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 952
RE-Y(St)YSWAY 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1012
RE-Y(St)YSWAY 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1126
RE-Y(St)YSWAY 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1252
RE-Y(St)YSWAY 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27 1456
RE-Y(St)YSWAY 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1644
RE-Y(St)YSWAY 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1811
RE-Y(St)YSWAY 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2154
RE-Y(St)YSWAY 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2477
RE-Y(St)YSWAY 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2614

备注:其他规格截面积&线芯要求可根据要求定制。
