BS EN 50288-7标准
XLPE绝缘，LSZH护套 & 总屏蔽铠装仪表电缆(多芯)
RE-2X(St)HSWAH 90°C / 500V
应用及描述
BS EN 50288-7标准仪表电缆用于仪表控制系统中模拟信号和数字信号的传输，根据IEC79-14分类，可用于II组1区和2区环境中，不能直接连接在低阻抗电源，例如公共电力供应站。
推荐应用在室内和室外安装，支架，托盘，管道，干湿环境中，不推荐直埋使用。
推荐应用在生命和重要财产物资的消防防火措施中。
标准
电缆结构
防火特性
| 阻燃特性（单根电缆垂直燃烧测试） |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
备注：*为已替换的标准，***为可选标准。
额定电压

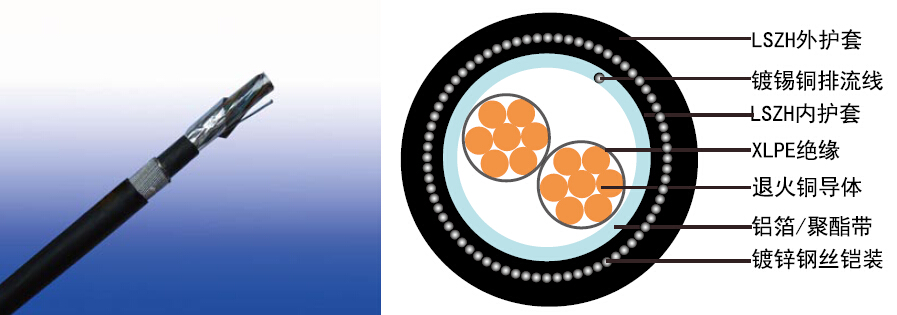

电缆结构
| 导体 |
IEC 60228标准2类多股退火铜导体。 |
| 绝缘 |
EN 50290-2-29标准挤压式XLPE复合物绝缘 |
| 屏蔽 |
带有0.5mm²镀锡铜排流线的铝带/聚酯带层屏蔽。 |
| 内护套 |
EN 50290-2-27标准LSZH复合物。 |
| 铠装线缆 |
分离式护套外层应用的是螺纹状圆铝线铠装。 |
| 外护套 |
EN 50290-2-27标准LSZH复合物。防紫外线，耐烃，耐油，防啮齿和防白蚁特性都是可选的。 |
颜色
物理特性
| 工作温度范围（固定状态下） |
-30°C – +90°C |
| 安装温度范围（运动状态） |
-5°C – +50°C |
| 最小弯曲半径 |
10 X 外径 |
| 抗紫外线 |
UL 1581 section 1200 |
| 耐油 |
| ICEA S-73-532(测试温度 +60°C, 持续4小时。4小时过程中，保持拉伸强度和伸长率最小值为60%。) |
|
|
电气性能
| 导体截面积 |
mm2 |
0.5 |
0.75 |
1 |
1.3 |
1.5 |
2.5 |
| 标称绝缘厚度 |
mm |
0.55 |
0.55 |
0.55 |
0.6 |
0.6 |
0.7 |
| 最小绝缘厚度 |
mm |
0.44 |
0.44 |
0.44 |
0.44 |
0.44 |
0.53 |
| 导体电阻 (20°C) |
Ω/km |
36.7 |
25 |
18.5 |
14.2 |
12.3 |
7.4 |
| 绝缘电阻 (20°C) |
MΩ.km(Min.) |
5000 |
| 交互电容 (1 kHz) |
pF/m(Max.) |
115 |
| 电容不平衡值(1 kHz) |
pF/500 m (Max.) |
500 |
| 感应系数/阻抗比例 |
μH/Ω(Max.) |
25 |
25 |
25 |
40 |
40 |
60 |
| 工作电压 |
V |
500 |
| 测试电压 Urms |
线芯之间V |
2000 |
| 线芯与屏蔽之间 V |
2000 |
电缆结构参数
| 电缆型号 |
芯数×1×截面积 |
标称绝缘厚度 |
标称内护套厚度 |
标称内护套层总外径 |
标称铠装层厚度 |
标称外护套厚度 |
标称总外径 |
标称总重量 |
| No.x1xmm2 |
mm |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 0.5mm2，多芯 |
| RE-2X(St)HSWAH 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
0.9 |
1.3 |
10.6 |
210 |
| RE-2X(St)HSWAH 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
10.9 |
230 |
| RE-2X(St)HSWAH 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7 |
0.9 |
1.3 |
11.4 |
253 |
| RE-2X(St)HSWAH 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
0.9 |
1.3 |
12 |
283 |
| RE-2X(St)HSWAH 8C0.5 |
8x1x0.5 |
0.55 |
1 |
9.1 |
0.9 |
1.4 |
13.7 |
344 |
| RE-2X(St)HSWAH 10C0.5 |
10x1x0.5 |
0.55 |
1 |
10.4 |
0.9 |
1.4 |
15 |
399 |
| RE-2X(St)HSWAH 12C0.5 |
12x1x0.5 |
0.55 |
1 |
10.7 |
0.9 |
1.4 |
15.3 |
442 |
| RE-2X(St)HSWAH 14C0.5 |
14x1x0.5 |
0.55 |
1 |
11.3 |
0.9 |
1.4 |
15.9 |
474 |
| RE-2X(St)HSWAH 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
0.9 |
1.4 |
16.4 |
505 |
| RE-2X(St)HSWAH 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
0.9 |
1.5 |
18.1 |
569 |
| RE-2X(St)HSWAH 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
0.9 |
1.5 |
19.5 |
642 |
| RE-2X(St)HSWAH 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15 |
0.9 |
1.5 |
19.8 |
808 |
| RE-2X(St)HSWAH 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
0.9 |
1.5 |
20.5 |
848 |
| RE-2X(St)HSWAH 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
963 |
| RE-2X(St)HSWAH 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
1014 |
| 0.75mm2，多芯 |
| RE-2X(St)HSWAH 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
0.9 |
1.3 |
10.9 |
230 |
| RE-2X(St)HSWAH 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
11.3 |
247 |
| RE-2X(St)HSWAH 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
0.9 |
1.3 |
11.8 |
278 |
| RE-2X(St)HSWAH 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
0.9 |
1.4 |
12.7 |
322 |
| RE-2X(St)HSWAH 8C0.75 |
8x1x0.75 |
0.55 |
1 |
9.7 |
0.9 |
1.4 |
14.3 |
383 |
| RE-2X(St)HSWAH 10C0.75 |
10x1x0.75 |
0.55 |
1 |
11.1 |
0.9 |
1.4 |
15.7 |
461 |
| RE-2X(St)HSWAH 12C0.75 |
12x1x0.75 |
0.55 |
1 |
11.5 |
0.9 |
1.4 |
16.1 |
477 |
| RE-2X(St)HSWAH 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
0.9 |
1.5 |
17 |
527 |
| RE-2X(St)HSWAH 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
0.9 |
1.5 |
17.7 |
572 |
| RE-2X(St)HSWAH 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
0.9 |
1.5 |
19.1 |
669 |
| RE-2X(St)HSWAH 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16 |
0.9 |
1.5 |
20.8 |
877 |
| RE-2X(St)HSWAH 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
0.9 |
1.6 |
21.3 |
929 |
| RE-2X(St)HSWAH 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
986 |
| RE-2X(St)HSWAH 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
1.25 |
1.6 |
23.9 |
1102 |
| RE-2X(St)HSWAH 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
1.25 |
1.6 |
24.8 |
1181 |
| 1.0mm2，多芯 |
| RE-2X(St)HSWAH 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
0.9 |
1.3 |
11.3 |
247 |
| RE-2X(St)HSWAH 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
0.9 |
1.3 |
11.7 |
270 |
| RE-2X(St)HSWAH 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
0.9 |
1.4 |
12.5 |
299 |
| RE-2X(St)HSWAH 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
0.9 |
1.4 |
13.2 |
342 |
| RE-2X(St)HSWAH 8C1.0 |
8x1x1.0 |
0.55 |
1 |
10.3 |
0.9 |
1.4 |
14.9 |
424 |
| RE-2X(St)HSWAH 10C1.0 |
10x1x1.0 |
0.55 |
1 |
11.9 |
0.9 |
1.4 |
16.5 |
514 |
| RE-2X(St)HSWAH 12C1.0 |
12x1x1.0 |
0.55 |
1 |
12.2 |
0.9 |
1.5 |
17 |
548 |
| RE-2X(St)HSWAH 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13 |
0.9 |
1.5 |
17.8 |
590 |
| RE-2X(St)HSWAH 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
649 |
| RE-2X(St)HSWAH 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
0.9 |
1.5 |
20 |
864 |
| RE-2X(St)HSWAH 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17 |
0.9 |
1.6 |
22 |
1005 |
| RE-2X(St)HSWAH 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
1.25 |
1.6 |
23.1 |
1058 |
| RE-2X(St)HSWAH 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18 |
1.25 |
1.6 |
23.7 |
1113 |
| RE-2X(St)HSWAH 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
1.25 |
1.6 |
25.3 |
1271 |
| RE-2X(St)HSWAH 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
1.25 |
1.7 |
26.3 |
1351 |
| 1.3mm2，多芯 |
| RE-2X(St)HSWAH 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
0.9 |
1.3 |
11.8 |
275 |
| RE-2X(St)HSWAH 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
0.9 |
1.3 |
12.3 |
|
| RE-2X(St)HSWAH 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
0.9 |
1.4 |
13.1 |
340 |
| RE-2X(St)HSWAH 5C1.3 |
5x1x1.3 |
0.6 |
1 |
9.5 |
0.9 |
1.4 |
14.1 |
383 |
| RE-2X(St)HSWAH 8C1.3 |
8x1x1.3 |
0.6 |
1 |
11.2 |
0.9 |
1.4 |
15.8 |
483 |
| RE-2X(St)HSWAH 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
0.9 |
1.5 |
18 |
578 |
| RE-2X(St)HSWAH 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
0.9 |
1.5 |
18.4 |
633 |
| RE-2X(St)HSWAH 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
0.9 |
1.5 |
19.1 |
698 |
| RE-2X(St)HSWAH 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15 |
0.9 |
1.5 |
19.8 |
870 |
| RE-2X(St)HSWAH 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
1014 |
| RE-2X(St)HSWAH 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
1.25 |
1.6 |
24.4 |
1163 |
| RE-2X(St)HSWAH 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
1.25 |
1.6 |
25 |
1227 |
| RE-2X(St)HSWAH 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20 |
1.25 |
1.6 |
25.7 |
1305 |
| RE-2X(St)HSWAH 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
1.25 |
1.7 |
27.5 |
1504 |
| RE-2X(St)HSWAH 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
1.25 |
1.7 |
28.6 |
1584 |
| 1.5mm2，多芯 |
| RE-2X(St)HSWAH 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
0.9 |
1.3 |
12.1 |
279 |
| RE-2X(St)HSWAH 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
0.9 |
1.4 |
12.7 |
322 |
| RE-2X(St)HSWAH 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
0.9 |
1.4 |
13.4 |
347 |
| RE-2X(St)HSWAH 5C1.5 |
5x1x1.5 |
0.6 |
1 |
9.8 |
0.9 |
1.4 |
14.4 |
392 |
| RE-2X(St)HSWAH 8C1.5 |
8x1x1.5 |
0.6 |
1 |
11.6 |
0.9 |
1.4 |
16.2 |
518 |
| RE-2X(St)HSWAH 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
0.9 |
1.5 |
18.5 |
614 |
| RE-2X(St)HSWAH 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
0.9 |
1.5 |
18.9 |
670 |
| RE-2X(St)HSWAH 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
0.9 |
1.5 |
19.6 |
742 |
| RE-2X(St)HSWAH 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
0.9 |
1.5 |
20.4 |
925 |
| RE-2X(St)HSWAH 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
1.25 |
1.6 |
23.3 |
1062 |
| RE-2X(St)HSWAH 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
1.25 |
1.6 |
25.3 |
1218 |
| RE-2X(St)HSWAH 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
1.25 |
1.6 |
25.8 |
1289 |
| RE-2X(St)HSWAH 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
1.25 |
1.7 |
26.7 |
1418 |
| RE-2X(St)HSWAH 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
1.25 |
1.7 |
28.5 |
1586 |
| RE-2X(St)HSWAH 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
1.25 |
1.7 |
29.5 |
1687 |
| 2.5mm2，多芯 |
| RE-2X(St)HSWAH 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
0.9 |
1.4 |
13.5 |
364 |
| RE-2X(St)HSWAH 3C2.5 |
3x1x2.5 |
0.7 |
1 |
9.7 |
0.9 |
1.4 |
14.3 |
389 |
| RE-2X(St)HSWAH 4C2.5 |
4x1x2.5 |
0.7 |
1 |
10.5 |
0.9 |
1.4 |
15.1 |
430 |
| RE-2X(St)HSWAH 5C2.5 |
5x1x2.5 |
0.7 |
1 |
11.9 |
0.9 |
1.4 |
16.5 |
547 |
| RE-2X(St)HSWAH 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
0.9 |
1.5 |
18.7 |
684 |
| RE-2X(St)HSWAH 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
0.9 |
1.6 |
21.3 |
952 |
| RE-2X(St)HSWAH 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
0.9 |
1.6 |
21.9 |
1012 |
| RE-2X(St)HSWAH 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
1.25 |
1.6 |
23.4 |
1126 |
| RE-2X(St)HSWAH 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
1.25 |
1.6 |
24.6 |
1252 |
| RE-2X(St)HSWAH 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
1.25 |
1.7 |
27 |
1456 |
| RE-2X(St)HSWAH 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
1.25 |
1.7 |
29.5 |
1644 |
| RE-2X(St)HSWAH 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
1.25 |
1.8 |
30.2 |
1811 |
| RE-2X(St)HSWAH 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1.25 |
1.8 |
31.3 |
2154 |
| RE-2X(St)HSWAH 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1.25 |
1.8 |
33.3 |
2477 |
| RE-2X(St)HSWAH 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1.25 |
1.9 |
34.8 |
2614 |
|
|
|
|
|
|
|
|
|
