BS EN 50288-7标准PE绝缘，LSZH护套 & 总屏蔽仪表电缆(多芯)
RE-2Y(St)H 90°C / 500V
应用及描述
BS EN 50288-7标准仪表电缆用于仪表控制系统中模拟信号和数字信号的传输，根据IEC79-14分类，可用于II组1区和2区环境中，不能直接连接在低阻抗电源，例如公共电力供应站。
推荐应用在室内和室外安装，支架，托盘，管道，干湿环境中，不推荐直埋使用。
推荐应用在生命和重要财产物资的消防防火措施中。
标准
电缆结构
防火特性
| 阻燃特性（单根电缆垂直燃烧测试） |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
备注：*为已替换的标准，***为可选标准。
额定电压

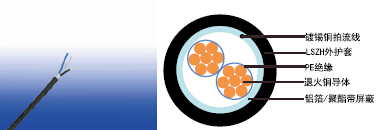

电缆结构
| 导体 |
IEC 60228标准2类多股退火铜导体。 |
| 总屏蔽 |
带0.5mm²镀锡铜配流线的铝箔/塑料薄膜包裹在成缆外层。 |
| 外护套 |
EN 50290-2-27标准LSZH复合物。防紫外线，耐烃，耐油，防啮齿和防白蚁特性都是可选的。 |
颜色
- 绝缘：黑/蓝， 成对的电缆在蓝色线芯上以数字（1，2、、、）连续标识。
外护套：黑色或蓝色（本安系统）
物理特性
| 工作温度范围（固定状态下） |
-30°C – +90°C |
| 安装温度范围（运动状态） |
-5°C– +50°C |
| 最小弯曲半径 |
7.5 X 外径 |
| 抗紫外线 |
UL 1581 section 1200 |
| 耐油 |
| ICEA S-73-532(测试温度 +60°C, 持续4小时。4小时过程中，保持拉伸强度和伸长率最小值为60%。) |
|
|
电气性能
| 导体截面积 |
mm2 |
0.5 |
0.75 |
1 |
1.3 |
1.5 |
2.5 |
| 标称绝缘厚度 |
mm |
0.55 |
0.55 |
0.55 |
0.6 |
0.6 |
0.7 |
| 导体电阻 (20°C) |
Ω/km |
36.0 |
24.5 |
18.1 |
13.9 |
12.1 |
7.4 |
| 绝缘电阻 (20°C) |
MΩ.km(Min.) |
5000 |
| 交互电容 (1 kHz) |
pF/m(Max.) |
115 |
| 电容不平衡值(1 kHz) |
pF/500 m (Max.) |
500 |
| 感应系数/阻抗比例 |
μH/Ω(Max.) |
25 |
25 |
25 |
40 |
40 |
60 |
| 工作电压 |
V |
500 |
| 测试电压 Urms |
线芯之间V |
2000 |
| 线芯与屏蔽之间 V |
2000 |
电缆结构参数
| 电缆型号 |
RE-2X(St)H |
| 芯数×1×截面积 |
标准绝缘厚度 |
标准护套厚度 |
标称总外径 |
标称总重量 |
| No.x1xmm2 |
mm |
mm |
mm |
kg/km |
| 0.5mm2，多芯 |
| RE-2Y(St)H 2C0.5 |
2x1x0.5 |
0.55 |
0.9 |
6.2 |
45 |
| RE-2Y(St)H 3C0.5 |
3x1x0.5 |
0.55 |
0.9 |
6.5 |
53 |
| RE-2Y(St)H 4C0.5 |
4x1x0.5 |
0.55 |
0.9 |
7 |
60 |
| RE-2Y(St)H 5C0.5 |
5x1x0.5 |
0.55 |
0.9 |
7.6 |
71 |
| RE-2Y(St)H 8C0.5 |
8x1x0.5 |
0.55 |
1 |
9.1 |
95 |
| RE-2Y(St)H 10C0.5 |
10x1x0.5 |
0.55 |
1 |
10.4 |
122 |
| RE-2Y(St)H 12C0.5 |
12x1x0.5 |
0.55 |
1 |
10.7 |
145 |
| RE-2Y(St)H 14C0.5 |
14x1x0.5 |
0.55 |
1 |
11.3 |
162 |
| RE-2Y(St)H 16C0.5 |
16x1x0.5 |
0.55 |
1.1 |
11.8 |
180 |
| RE-2Y(St)H 20C0.5 |
20x1x0.5 |
0.55 |
1.1 |
13.3 |
214 |
| RE-2Y(St)H 24C0.5 |
24x1x0.5 |
0.55 |
1.1 |
14.7 |
258 |
| RE-2Y(St)H 27C0.5 |
27x1x0.5 |
0.55 |
1.2 |
15 |
282 |
| RE-2Y(St)H 30C0.5 |
30x1x0.5 |
0.55 |
1.2 |
15.7 |
308 |
| RE-2Y(St)H 37C0.5 |
37x1x0.5 |
0.55 |
1.2 |
16.9 |
372 |
| RE-2Y(St)H 40C0.5 |
40x1x0.5 |
0.55 |
1.2 |
17.6 |
398 |
| 0.75mm2，多芯 |
| RE-2Y(St)H 2C0.75 |
2x1x0.75 |
0.55 |
0.9 |
6.5 |
|
| RE-2Y(St)H 3C0.75 |
3x1x0.75 |
0.55 |
0.9 |
6.9 |
|
| RE-2Y(St)H 4C0.75 |
4x1x0.75 |
0.55 |
0.9 |
7.4 |
|
| RE-2Y(St)H 5C0.75 |
5x1x0.75 |
0.55 |
0.9 |
8.1 |
|
| RE-2Y(St)H 8C0.75 |
8x1x0.75 |
0.55 |
1 |
9.7 |
|
| RE-2Y(St)H 10C0.75 |
10x1x0.75 |
0.55 |
1 |
11.1 |
|
| RE-2Y(St)H 12C0.75 |
12x1x0.75 |
0.55 |
1 |
11.5 |
|
| RE-2Y(St)H 14C0.75 |
14x1x0.75 |
0.55 |
1.1 |
12.2 |
|
| RE-2Y(St)H 16C0.75 |
16x1x0.75 |
0.55 |
1.1 |
12.9 |
|
| RE-2Y(St)H 20C0.75 |
20x1x0.75 |
0.55 |
1.1 |
14.3 |
|
| RE-2Y(St)H 24C0.75 |
24x1x0.75 |
0.55 |
1.2 |
16.0 |
|
| RE-2Y(St)H 27C0.75 |
27x1x0.75 |
0.55 |
1.2 |
16.3 |
|
| RE-2Y(St)H 30C0.75 |
30x1x0.75 |
0.55 |
1.2 |
16.9 |
|
| RE-2Y(St)H 37C0.75 |
37x1x0.75 |
0.55 |
1.2 |
18.2 |
|
| RE-2Y(St)H 40C0.75 |
40x1x0.75 |
0.55 |
1.3 |
19.1 |
|
| 1.0mm2，多芯 |
| RE-2Y(St)H 2C1.0 |
2x1x1.0 |
0.55 |
0.9 |
6.9 |
58 |
| RE-2Y(St)H 3C1.0 |
3x1x1.0 |
0.55 |
0.9 |
7.3 |
70 |
| RE-2Y(St)H 4C1.0 |
4x1x1.0 |
0.55 |
0.9 |
7.9 |
85 |
| RE-2Y(St)H 5C1.0 |
5x1x1.0 |
0.55 |
0.9 |
8.6 |
98 |
| RE-2Y(St)H 8C1.0 |
8x1x1.0 |
0.55 |
1 |
10.3 |
136 |
| RE-2Y(St)H 10C1.0 |
10x1x1.0 |
0.55 |
1 |
11.9 |
194 |
| RE-2Y(St)H 12C1.0 |
12x1x1.0 |
0.55 |
1 |
12.2 |
214 |
| RE-2Y(St)H 14C1.0 |
14x1x1.0 |
0.55 |
1.1 |
13 |
243 |
| RE-2Y(St)H 16C1.0 |
16x1x1.0 |
0.55 |
1.1 |
13.7 |
280 |
| RE-2Y(St)H 20C1.0 |
20x1x1.0 |
0.55 |
1.1 |
15.2 |
336 |
| RE-2Y(St)H 24C1.0 |
24x1x1.0 |
0.55 |
1.2 |
17 |
404 |
| RE-2Y(St)H 27C1.0 |
27x1x1.0 |
0.55 |
1.2 |
17.4 |
443 |
| RE-2Y(St)H 30C1.0 |
30x1x1.0 |
0.55 |
1.2 |
18 |
484 |
| RE-2Y(St)H 37C1.0 |
37x1x1.0 |
0.55 |
1.2 |
19.6 |
590 |
| RE-2Y(St)H 40C1.0 |
40x1x1.0 |
0.55 |
1.3 |
20.4 |
632 |
| 1.3mm2，多芯 |
| RE-2Y(St)H 2C1.3 |
2x1x1.3 |
0.6 |
0.9 |
7.4 |
72 |
| RE-2Y(St)H 3C1.3 |
3x1x1.3 |
0.6 |
0.9 |
7.9 |
86 |
| RE-2Y(St)H 4C1.3 |
4x1x1.3 |
0.6 |
0.9 |
8.5 |
105 |
| RE-2Y(St)H 5C1.3 |
5x1x1.3 |
0.6 |
1 |
9.5 |
135 |
| RE-2Y(St)H 8C1.3 |
8x1x1.3 |
0.6 |
1 |
11.2 |
176 |
| RE-2Y(St)H 10C1.3 |
10x1x1.3 |
0.6 |
1.1 |
13.2 |
228 |
| RE-2Y(St)H 12C1.3 |
12x1x1.3 |
0.6 |
1.1 |
13.6 |
269 |
| RE-2Y(St)H 14C1.3 |
14x1x1.3 |
0.6 |
1.1 |
14.3 |
305 |
| RE-2Y(St)H 16C1.3 |
16x1x1.3 |
0.6 |
1.1 |
15 |
351 |
| RE-2Y(St)H 20C1.3 |
20x1x1.3 |
0.6 |
1.2 |
16.9 |
423 |
| RE-2Y(St)H 24C1.3 |
24x1x1.3 |
0.6 |
1.2 |
18.7 |
507 |
| RE-2Y(St)H 27C1.3 |
27x1x1.3 |
0.6 |
1.3 |
19.3 |
558 |
| RE-2Y(St)H 30C1.3 |
30x1x1.3 |
0.6 |
1.3 |
20 |
611 |
| RE-2Y(St)H 37C1.3 |
37x1x1.3 |
0.6 |
1.3 |
21.6 |
743 |
| RE-2Y(St)H 40C1.3 |
40x1x1.3 |
0.6 |
1.4 |
22.7 |
796 |
| 1.5mm2，多芯 |
| RE-2Y(St)H 2C1.5 |
2x1x1.5 |
0.6 |
0.9 |
7.7 |
78 |
| RE-2Y(St)H 3C1.5 |
3x1x1.5 |
0.6 |
0.9 |
8.1 |
94 |
| RE-2Y(St)H 4C1.5 |
4x1x1.5 |
0.6 |
0.9 |
8.8 |
116 |
| RE-2Y(St)H 5C1.5 |
5x1x1.5 |
0.6 |
1 |
9.8 |
149 |
| RE-2Y(St)H 8C1.5 |
8x1x1.5 |
0.6 |
1 |
11.6 |
196 |
| RE-2Y(St)H 10C1.5 |
10x1x1.5 |
0.6 |
1.1 |
13.7 |
261 |
| RE-2Y(St)H 12C1.5 |
12x1x1.5 |
0.6 |
1.1 |
14.1 |
300 |
| RE-2Y(St)H 14C1.5 |
14x1x1.5 |
0.6 |
1.1 |
14.8 |
340 |
| RE-2Y(St)H 16C1.5 |
16x1x1.5 |
0.6 |
1.1 |
15.6 |
392 |
| RE-2Y(St)H 20C1.5 |
20x1x1.5 |
0.6 |
1.2 |
17.6 |
474 |
| RE-2Y(St)H 24C1.5 |
24x1x1.5 |
0.6 |
1.3 |
19.6 |
567 |
| RE-2Y(St)H 27C1.5 |
27x1x1.5 |
0.6 |
1.3 |
20.1 |
625 |
| RE-2Y(St)H 30C1.5 |
30x1x1.5 |
0.6 |
1.3 |
20.8 |
685 |
| RE-2Y(St)H 37C1.5 |
37x1x1.5 |
0.6 |
1.4 |
22.6 |
834 |
| RE-2Y(St)H 40C1.5 |
40x1x1.5 |
0.6 |
1.4 |
23.6 |
898 |
| 2.5mm2，多芯 |
| RE-2Y(St)H 2C2.5 |
2x1x2.5 |
0.7 |
0.9 |
8.9 |
113 |
| RE-2Y(St)H 3C2.5 |
3x1x2.5 |
0.7 |
1 |
9.7 |
145 |
| RE-2Y(St)H 4C2.5 |
4x1x2.5 |
0.7 |
1 |
10.5 |
178 |
| RE-2Y(St)H 5C2.5 |
5x1x2.5 |
0.7 |
1 |
11.9 |
285 |
| RE-2Y(St)H 8C2.5 |
8x1x2.5 |
0.7 |
1.1 |
13.9 |
376 |
| RE-2Y(St)H 10C2.5 |
10x1x2.5 |
0.7 |
1.2 |
16.3 |
426 |
| RE-2Y(St)H 12C2.5 |
12x1x2.5 |
0.7 |
1.2 |
16.9 |
537 |
| RE-2Y(St)H 14C2.5 |
14x1x2.5 |
0.7 |
1.2 |
17.7 |
609 |
| RE-2Y(St)H 16C2.5 |
16x1x2.5 |
0.7 |
1.3 |
18.9 |
711 |
| RE-2Y(St)H 20C2.5 |
20x1x2.5 |
0.7 |
1.3 |
21.1 |
826 |
| RE-2Y(St)H 24C2.5 |
24x1x2.5 |
0.7 |
1.4 |
23.6 |
930 |
| RE-2Y(St)H 27C2.5 |
27x1x2.5 |
0.7 |
1.4 |
24.1 |
1040 |
| RE-2Y(St)H 30C2.5 |
30x1x2.5 |
0.7 |
1.5 |
25.2 |
1142 |
| RE-2Y(St)H 37C2.5 |
37x1x2.5 |
0.7 |
1.5 |
27.2 |
1392 |
| RE-2Y(St)H 40C2.5 |
40x1x2.5 |
0.7 |
1.6 |
28.5 |
1494 |
备注：其他规格截面积&线芯要求可根据要求定制。
