Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

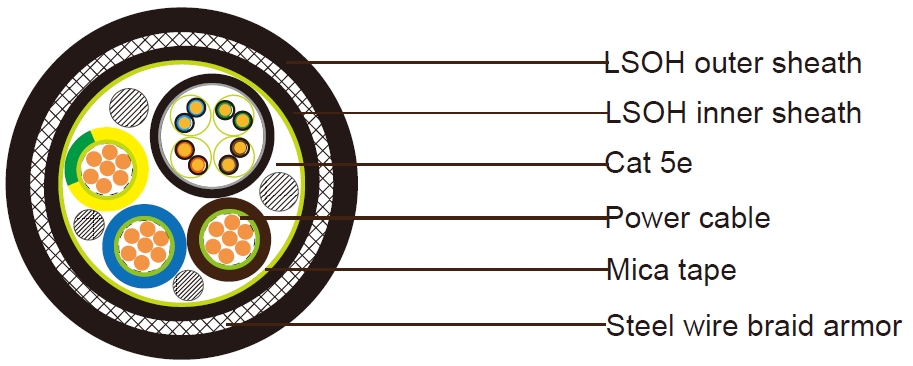

Construction:

Composite Cable

CAT5E 4x2x24AWG

Conductor Solid copper conductor
Insulation Polyethylene/Silicone Rubber
Fire Barrier Mica tape
Sheath FRLSZH sheath. Nominal outer diameter 9.5mm
Sheath Color Black
3x2.5mm² Power Cable
Conductor 2.5mm² Stranded tinned copper wire
Fire Barrier Mica tape
Insulation XLPE. Nominal outer diameter 5.0mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Inner Sheath PE or PP material
Fire Barrier Mica tape
Inner Sheath Thermoplastic SHF1, black, thickness 1.0mm
Armor Galvanized steel wire braid, coverage 95%
Outer Sheath SHF1/SHF Mud, thickness 1.5mm,nominal outer diameter 23.0±1.5mm
Sheath Color Black

Electrical and Physical Properties @20°C:

Cat5e

Power Cable

Electrical Resistance: 12.1Ohm/km
Insulation Resistance: ≥5500 MOhmxkm

Element Assembly:

Min Bending Radius: 420mm
Operating Temperature:-30°C/+80°C
Fire Performance:
Low Smoke Capacity: IEC61034-1/2
Halogen Free: IEC60754-1/2
Flame Propagation:IEC60332
Fire Resistant:IEC60331
Mud Resistant:NEK606
