50kV DC Unscreened Silicone Wire

Application

The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.

Rated Voltage

50kV

Construction

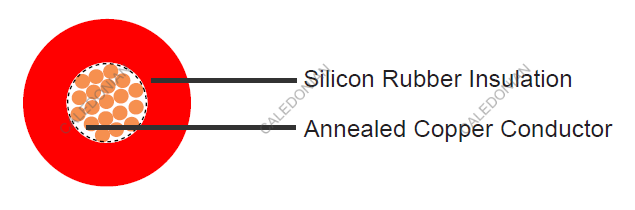

50kV DC Unscreened Silicone Wire
Conductor Annealed copper conductor, class 5.
Insulation Silicone rubber.

COLOR CODE

Red, (other colours upon request).

PHYSICAL PROPERTIES

Operating Temperature: -45°C-180°C

Dimension Data

Part NO. Conductor Approx.
Overall Diameter
No. of Core X Cross Section No./Nominal Diameter of Strands Nominal Diameter
　 mm² No./mm mm mm
50DC-S-1C0.20 1x0.20 7/0.20 0.6 14.6
50DC-S-1C0.35 1x0.35 19/0.16 0.8 14.8
50DC-S-1C0.50 1x0.50 16/0.2 0.94 15.0
50DC-S-1C0.75 1x0.75 24/0.2 1.2 15.6
50DC-S-1C1.0 1x1.0 32/0.2 1.34 15.8
50DC-S-1C1.5 1x1.5 30/0.25 1.6 16.6
50DC-S-1C2.5 1x2.5 49/0.25 2.1 17.2
50DC-S-1C4.0 1x4.0 56/0.3 2.61 19.0
50DC-S-1C6.0 1x6.0 84/0.3 3.21 20.0
