2YSLGCGOEU Signal & Control Cable

Applications

These control, signalling and bus cables are used for electric and electronic equipment, such as for measured value and process data processing and automation units in open-cast mining applications, suitable for laying alongside conveyor belts and on material handling equipment.

Standards

VDE 0250 Part 812

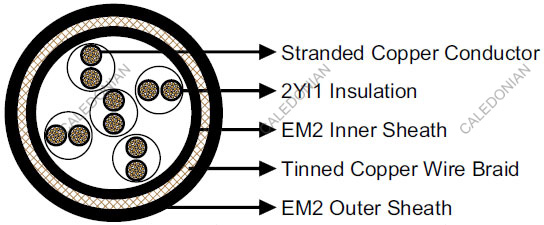

Construction


2YSLGCGOEU Signal & Control mining Cable
Conductors Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.
Insulation PE type 2YI1.
Cable Element Cores are laid-up in pairs in layers with a continuous serving of non-hygroscopic material over the conductor assembly.
Inner Sheath CM type EM2.
Screen Tinned copper wire braid.
Outer Sheath CM type EM2.

Dimensions and Weight

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
2×2×1 11.0 13.0 245
5×2×1 16.0 19.0 440
10×2×1 20.0 23.0 700
20×2×1 25.0 29.0 1040
