Mining Cable
Paper Insulated 11/11KV

Applications

These cables are used as HV feeder cables in fixed conditions.

Standards

Paper Insulated Mining Cable 11/11KV

AS/NZS 1972:2006
AS/NZS 1125
AS/NZS 3808

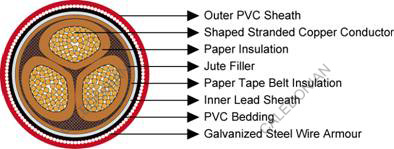

Construction

Conductors: Sector shaped stranded copper conductor.
Insulation: Paper tape.
Filling: Jute fillers.
Insulation: Paper tape belt insulation.
Inner Sheath: Lead sheath.
Bedding: PVC sheath.
Armour: Galvanized steel wire armour.
Outer Sheath: PVC sheathto AS/NZS 1026.

Dimensions and Weight

Nominal Conductor Area Minimum Insulation Thickness Nominal Lead Sheath Thickness Armour Wire Diameter Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
Between Conductors Between Conductors and Lead Sheath
mm² mm mm mm mm mm mm kg/100m
25 5.6 5.4 1.8 2.5 2.4 47.9 630
35 5.6 5.4 1.8 2.5 2.5 50.3 695
50 5.6 5.4 1.8 2.5 2.5 50.1 725
70 5.6 5.4 1.9 2.5 2.6 53.5 855
95 5.6 5.4 2.0 2.5 2.6 57.2 1000
120 5.6 5.4 2.0 2.5 2.7 60.1 1120
150 5.6 5.4 2.1 2.5 2.8 63.0 1260
185 5.6 5.4 2.3 3.15 2.9 68.0 1540
240 5.6 5.4 2.4 3.15 3.0 73.1 1820
300 5.6 5.4 2.6 3.15 3.2 77.9 2120
400 5.6 5.4 2.7 3.15 3.4 83.5 2500
