UL/CSA 1000V PVC/PVC Torsion Resistant Cable 90°C
Application
These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.
Standards

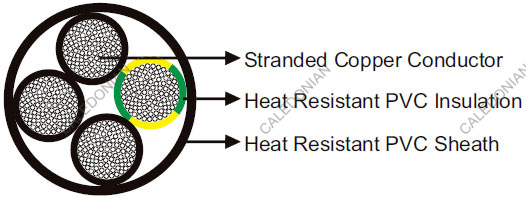

Construction
| Conductor |
Stranded bare copper according to DIN VDE 0295. |
| Insulation |
Special heat resistant PVC. |
| Sheath |
Special heat resistant PVC. |
Technical Data
| Rated Voltage U0/U (Um) |
1000V |
| Operating Temperatures |
flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
10×OD |
| Torsion Application |
+/-140°/m |
| Flame Retardant |
FT1 |
| Oil Resistant |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
AWG /MCM |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
- |
mm |
kg/km |
| 4×0.34 |
22 |
7.1 |
86 |
| 4×0.5 |
20 |
7.4 |
99 |
| 6×0.5 |
20 |
8.6 |
121 |
| 10×0.5 |
20 |
10.8 |
165 |
| 12×0.5 |
20 |
11.1 |
208 |
| 3×0.75 |
19 |
7.3 |
77 |
| 4×0.75 |
19 |
7.9 |
100 |
| 5×0.75 |
19 |
8.6 |
120 |
| 7×0.75 |
19 |
10.0 |
170 |
| 10×0.75 |
19 |
11.0 |
200 |
| 12×0.75 |
19 |
11.8 |
220 |
| 14×0.75 |
19 |
12.5 |
238 |
| 16×0.75 |
19 |
13.2 |
271 |
| 18×0.75 |
19 |
13.9 |
310 |
| 21×0.75 |
19 |
15.2 |
380 |
| 25×0.75 |
19 |
16.9 |
490 |
| 32×0.75 |
19 |
18.2 |
560 |
| 36×0.75 |
19 |
19.1 |
620 |
| 40×0.75 |
19 |
20.5 |
729 |
| 41×0.75 |
19 |
20.8 |
750 |
| 50×0.75 |
19 |
23.5 |
990 |
| 4×1 |
18 |
8.3 |
100 |
| 5×1 |
18 |
9.0 |
110 |
| 7×1 |
18 |
10.5 |
140 |
| 10×1 |
18 |
13.0 |
220 |
| 12×1 |
18 |
13.2 |
240 |
| 14×1 |
18 |
13.4 |
280 |
| 16×1 |
18 |
14.1 |
310 |
| 18×1 |
18 |
15.1 |
360 |
| 21×1 |
18 |
16.7 |
410 |
| 25×1 |
18 |
18.4 |
500 |
| 32×1 |
18 |
19.8 |
590 |
| 36×1 |
18 |
20.6 |
700 |
| 40×1 |
18 |
22.4 |
800 |
| 41×1 |
18 |
22.4 |
810 |
| 50×1 |
18 |
24.6 |
980 |
| 2×1.5 |
16 |
7.9 |
75 |
| 3×1.5 |
16 |
8.0 |
110 |
| 4×1.5 |
16 |
8.9 |
131 |
| 5×1.5 |
16 |
9.7 |
165 |
| 7×1.5 |
16 |
12.0 |
210 |
| 10×1.5 |
16 |
13.1 |
270 |
| 12×1.5 |
16 |
14.3 |
360 |
| 14×1.5 |
16 |
14.9 |
420 |
| 16×1.5 |
16 |
15.7 |
450 |
| 18×1.5 |
16 |
16.8 |
510 |
| 21×1.5 |
16 |
17.8 |
590 |
| 25×1.5 |
16 |
20.6 |
700 |
| 32×1.5 |
16 |
22.2 |
900 |
| 36×1.5 |
16 |
23.1 |
980 |
| 40×1.5 |
16 |
25.0 |
1030 |
| 41×1.5 |
16 |
25.0 |
1050 |
| 50×1.5 |
16 |
27.7 |
1200 |
| 3×2.5 |
14 |
8.9 |
151 |
| 4×2.5 |
14 |
9.7 |
230 |
| 5×2.5 |
14 |
10.9 |
250 |
| 7×2.5 |
14 |
14.4 |
360 |
| 10×2.5 |
14 |
15.8 |
480 |
| 12×2.5 |
14 |
16.3 |
580 |
| 19×2.5 |
14 |
20.4 |
690 |
| 3×4 |
12 |
10.8 |
250 |
| 4×4 |
12 |
12.0 |
270 |
| 5×4 |
12 |
13.6 |
370 |
| 7×4 |
12 |
15.9 |
530 |
| 12×4 |
12 |
19.6 |
740 |
| 3×6 |
10 |
13.1 |
340 |
| 4×6 |
10 |
14.6 |
460 |
| 5×6 |
10 |
16.3 |
550 |
| 7×6 |
10 |
19.6 |
780 |
| 4×10 |
8 |
17.4 |
670 |
| 5×10 |
8 |
20.1 |
870 |
| 7×10 |
8 |
23.5 |
1150 |
| 4×16 |
6 |
22.6 |
1000 |
| 5×16 |
6 |
25.4 |
1250 |
| 4×25 |
4 |
26.5 |
1580 |
| 5×25 |
4 |
28.2 |
1900 |
| 4×35 |
2 |
31.4 |
2100 |
| 5×35 |
2 |
35.4 |
2600 |
| 4×50 |
1 |
36.7 |
2800 |
| 1×35 |
2 |
12.9 |
460 |
| 1×50 |
1 |
15.6 |
630 |
| 1×70 |
2/0 |
17.9 |
880 |
| 1×95 |
3/0 |
21.9 |
1230 |
| 1×120 |
4/0 |
23.1 |
1540 |
| 1×150 |
300 |
27.2 |
1870 |
| 1×185 |
350 |
27.5 |
2300 |
| 1×240 |
500 |
31.2 |
2970 |
| 1×300 |
600 |
34.2 |
3730 |
| 1×400 |
750 |
39.3 |
4500 |
