UL/CSA 1000V PVC/PVC Screened Torsion Resistant Cable 90°C
Application
These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.
Standards

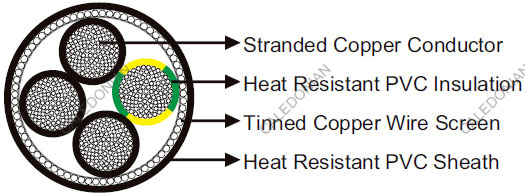

Construction
| Conductor |
Stranded bare copper according to DIN VDE 0295. |
| Insulation |
Special heat resistant PVC. |
| Screen |
Tinned copper wire wrapped. |
| Sheath |
Special heat resistant PVC. |
Technical Data
| Rated Voltage U0/U (Um) |
1000V |
| Operating Temperatures |
flexing: -35℃~+90℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius |
10×OD |
| Torsion Application |
+/-90°/m |
| Flame Retardant |
FT1 |
| Oil Resistant |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
AWG /MCM |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
- |
mm |
kg/km |
| 2×2×0.25 |
24 |
8.9 |
90 |
| 4×2×0.25 |
24 |
9.9 |
115 |
| 5×2×0.25 |
24 |
11.1 |
130 |
| 4×0.34 |
22 |
7.7 |
91 |
| 2×2×0.34 |
22 |
9.6 |
110 |
| 4×2×0.34 |
22 |
11.0 |
130 |
| 4×0.5 |
20 |
8.0 |
105 |
| 6×0.5 |
20 |
9.2 |
130 |
| 10×0.5 |
20 |
11.4 |
170 |
| 12×0.5 |
20 |
11.7 |
220 |
| 2×2×0.5 |
20 |
9.8 |
115 |
| 4×2×0.5 |
20 |
11.3 |
150 |
| 3×0.75 |
19 |
7.7 |
97 |
| 4×0.75 |
19 |
8.3 |
122 |
| 5×0.75 |
19 |
9.0 |
145 |
| 7×0.75 |
19 |
9.7 |
200 |
| 8×0.75 |
19 |
10.7 |
220 |
| 12×0.75 |
19 |
12.2 |
258 |
| 18×0.75 |
19 |
14.4 |
400 |
| 25×0.75 |
19 |
17.8 |
552 |
| 32×0.75 |
19 |
18.8 |
610 |
| 40×0.75 |
19 |
21.2 |
805 |
| 41×0.75 |
19 |
21.2 |
795 |
| 50×0.75 |
19 |
23.5 |
900 |
| 2×2×0.75 |
19 |
10.4 |
130 |
| 3×2×0.75 |
19 |
11.5 |
172 |
| 4×2×0.75 |
19 |
12.7 |
211 |
| 8×2×0.75 |
19 |
17.1 |
410 |
| 12×2×0.75 |
19 |
17.6 |
520 |
| 4×1.0 |
18 |
8.7 |
110 |
| 6×1.0 |
18 |
10.2 |
150 |
| 8×1.0 |
18 |
11.7 |
210 |
| 12×1.0 |
18 |
13.3 |
280 |
| 2×1.5 |
16 |
6.8 |
86 |
| 3×1.5 |
16 |
8.8 |
133 |
| 4×1.5 |
16 |
9.4 |
159 |
| 5×1.5 |
16 |
10.3 |
195 |
| 7×1.5 |
16 |
11.9 |
247 |
| 12×1.5 |
16 |
14.7 |
410 |
| 2×2×1.5 |
16 |
12.1 |
180 |
| 3×2×1.5 |
16 |
14.0 |
210 |
| 4×2×1.5 |
16 |
14.6 |
235 |
| 3×2.5 |
14 |
10.4 |
210 |
| 4×2.5 |
14 |
10.6 |
264 |
| 5×2.5 |
14 |
12.3 |
288 |
| 7×2.5 |
14 |
14.8 |
411 |
| 12×2.5 |
14 |
18.2 |
638 |
| 5×4 |
12 |
13.6 |
382 |
| 7×4 |
12 |
16.3 |
582 |
| 12×4 |
12 |
20.0 |
806 |
| 5×6 |
10 |
17.4 |
640 |
| 4×10 |
8 |
17.8 |
727 |
| 5×10 |
8 |
19.8 |
935 |
| 4×16 |
6 |
21.1 |
1072 |
| 5×16 |
6 |
26.2 |
1330 |
| 4×25 |
4 |
26.0 |
1664 |
| 5×25 |
4 |
28.6 |
2014 |
| 4×50 |
1 |
37.0 |
3200 |
| 1×70 |
2/0 |
19.8 |
950 |
| 1×95 |
3/0 |
22.5 |
1280 |
| 1×120 |
4/0 |
25.0 |
1570 |
| 1×150 |
300 |
24.9 |
2000 |
| 1×185 |
350 |
27.8 |
2340 |
| 1×240 |
500 |
33.0 |
3150 |
| 1×300 |
600 |
39.0 |
3920 |
| 1×400 |
750 |
43.0 |
5100 |
| 1×500 |
1000 |
46.5 |
6200 |
