S-3GSHXOEU HFFR 0.6/1 kV & UL 1000V 90°C
Application
These cables are designed for use at medium mechanical stresses in wind turbines.
Standards
- UL 758
- DIN VDE 0250
- DIN VED 0282

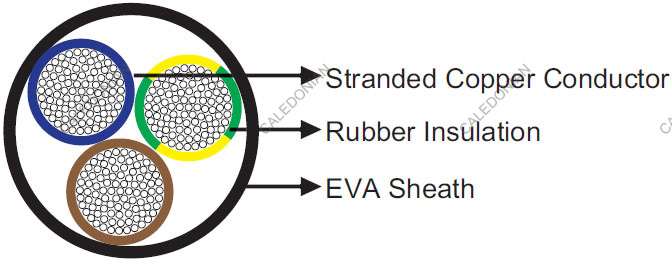

Construction
| Conductor |
Stranded bare copper, fine wire class 5 according to IEC 60228 / DIN EN 60228 |
| Insulation |
Rubber compound |
| Sheath |
EVA |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V (DIN VDE 0250)/1000V (AWM 758) |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
flexing: 6×OD; fixed: 4×OD |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
IEC 60332-1 |
| Halogen Free |
EN 50267-2-1/IEC 60754 |
| Corrosive Gases |
DIN EN 50267-2 |
| Smoke Density |
IEC 61034 |
| Oil Resistant |
Yes |
| Cooling Fluid Resistance |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 3×1.5 |
10.3 |
142 |
| 4×1.5 |
11.3 |
182 |
| 5×1.5 |
12.5 |
224 |
| 3×2.5 |
12.5 |
217 |
| 4×2.5 |
13.0 |
265 |
| 5×2.5 |
14.5 |
326 |
| 3×4 |
14.5 |
313 |
| 4×4 |
15.5 |
383 |
| 3×6 |
15.5 |
407 |
| 4×6 |
17.5 |
514 |
| 2×10 |
18.5 |
560 |
| 3×10 |
20.0 |
688 |
| 4×10 |
22.0 |
642 |
| 5×10 |
25.5 |
1095 |
| 3×16 |
23.0 |
946 |
| 4×16 |
26.0 |
1242 |
| 5×16 |
28.5 |
1501 |
| 1×25 |
13.0 |
364 |
| 3×25 |
28.0 |
1416 |
| 4×25 |
30.5 |
1746 |
| 5×25 |
34.0 |
2173 |
| 1×35 |
15.0 |
491 |
| 3×35 |
31.5 |
1894 |
| 4×35 |
34.5 |
2338 |
| 5×35 |
38.0 |
2849 |
| 1×50 |
17.0 |
682 |
| 3×50 |
36.0 |
2564 |
| 4×50 |
40.0 |
3236 |
| 5×50 |
44.0 |
3941 |
| 1×70 |
19.5 |
936 |
| 3×70 |
41.5 |
3466 |
| 4×70 |
46.5 |
4504 |
| 5×70 |
51.0 |
5515 |
| 1×95 |
21.5 |
1209 |
| 3×95 |
47.5 |
4580 |
| 1×120 |
24.0 |
1487 |
| 3×120 |
51.0 |
5517 |
