NA2XS(F)2Y RE/RM Medium Voltage Power Cable

Application

These cables are commonly used in wind turbines, suitable for indoor installation and in cable ducts, outdoors, underground and in water.

Standards

  • IEC 60502-2
  • DIN VDE 0276 part 620

Construction

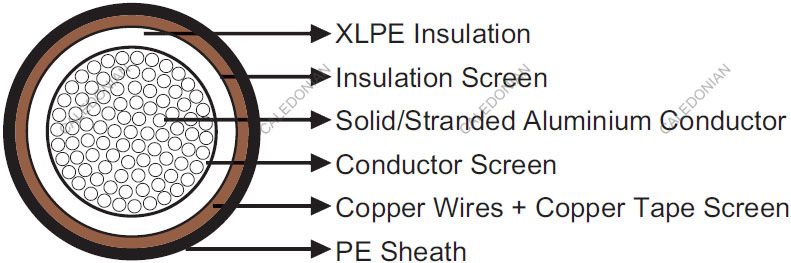

NA2XS(F)2Y RE/RM Medium Voltage Power Cable
Conductor Circular solid (RE) or stranded (RM) aluminium conductor
Conductor Screen Semiconducting compound
Insulation XLPE
Insulation Screen Semiconducting compound
Tape Semiconducting swellable tape
Screen Braiding of copper wires with copper tape
Tape Separation tape
Sheath PE

Technical Data

Rated Voltage Uo/U (Um) 6/10 kV, 12/20 kV, 18/30 kV
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 15×OD
Short-circuit Temperature 250℃
Longitudinally Water-Tight Yes
Halogen Free Yes
Lead Free Yes

Dimensions and Weight

6/10kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×70 re 26.5 760
1×95 re 26.5 860
1×120 re 28.5 930
1×150 re 29.5 1130
1×185 re 31.5 1230
1×240 re 33.5 1470
1×300 re 36.5 1670
1×400 re 40.5 2060
1×500 re 43.5 2400
1×630 re 45.5 2790
1×800 re 49.5 3340
1×1000 re 53.5 4000
1×35 rm 25.5 600
1×50 rm 26.5 670
1×70 rm 28.5 770
1×95 rm 29.0 880
1×120 rm 31.0 950
1×150 rm 32.0 1150
1×185 rm 34.0 1250
1×240 rm 36.0 1500
1×300 rm 38.5 1700
1×400 rm 42.5 2100
1×500 rm 45.5 2450
1×630 rm 47.5 2850
1×800 rm 52.5 3490
1×1000 rm 56.5 4080

12/20 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×70 re 30.5 910
1×95 re 31.5 1030
1×120 re 32.5 1130
1×150 re 33.5 1320
1×185 re 35.5 1470
1×240 re 38.5 1720
1×300 re 40.5 1960
1×400 re 43.5 2300
1×500 re 46.5 2740
1×630 re 49.5 3070
1×800 re 53.5 3680
1×1000 re 57.5 4360
1×50 rm 30.5 820
1×70 rm 32.5 930
1×95 rm 33.5 1050
1×120 rm 35.0 1150
1×150 rm 36.0 1350
1×185 rm 38.0 1500
1×240 rm 41.0 1750
1×300 rm 43.0 2000
1×400 rm 46.0 2350
1×500 rm 49.0 2800
1×630 rm 51.5 3140
1×800 rm 57.5 3840
1×1000 rm 60.5 4460

18/30 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×70 re 34.5 1180
1×95 re 35.5 1320
1×120 re 37.5 1420
1×150 re 38.5 1670
1×185 re 40.5 1810
1×240 re 42.5 2010
1×300 re 45.5 2300
1×400 re 48.5 2740
1×500 re 51.5 3140
1×630 re 55.5 3480
1×800 re 59.5 4100
1×1000 re 63.5 4800
1×50 rm 35.0 1100
1×70 rm 37.0 1200
1×95 rm 38.0 1350
1×120 rm 40.0 1450
1×150 rm 41.0 1700
1×185 rm 43.0 1850
1×240 rm 45.0 2050
1×300 rm 48.0 2350
1×400 rm 51.0 2800
1×500 rm 54.0 3200
1×630 rm 57.5 3570
1×800 rm 62.5 4280
1×1000 rm 66.5 4970
