N2XY 0.6/1kV Power Cable

Application

These cables are designed for energy supply, suitable for installed in underground, water, cable ducts, power tations, outdoors, indoors, for industry and distribution boards as well as in subscriber networks, where mechanical damages are not expected.

Standards

  • IEC 60502
  • DIN VDE 0276 part 603

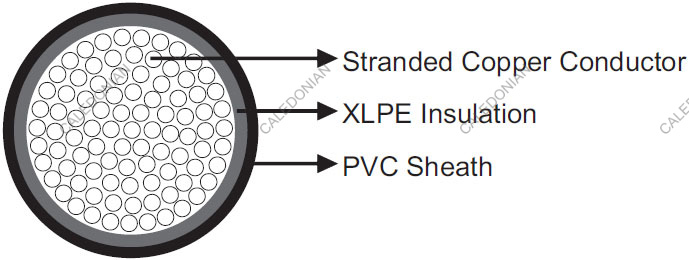

Construction

N2XY 0.6/1kV Power Cable
Conductor Stranded bare copper conductor according to VDE 0295/IEC 60228
Insulation Cross-linked polyethylene (XLPE)
Inner Covering Extruded inner covering
Sheath PVC

Technical Data

Rated Voltage Uo/U (Um) 0.6/1kV
Operating Temperatures -40℃ ~ +70℃
Minimum Bending Radius 15×OD
Maximum Permissible Tensile Load 50N/mm^2
Short-circuit Temperature 250℃
Flame Retardant VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Silicone Free Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×95 21.0 1200
1×150 25.0 1800
1×185 27.0 2200
1×240 30.0 2800
1×300 32.0 3300
1×400 36.0 4200
1×500 40.0 5400
4G35 31.0 2200
4G50 33.0 2400
4G75 38.0 3100
4G95 42.0 4200
4G120 46.0 5100
4G150 50.0 6300
4G185 55.0 8000
4G240 70.0 10000

G: with green-yellow earth core        ×: without green-yellow earth core
