N2XS2Y Medium Voltage Power Cable

Application

These cables are commonly used in wind parks, suitable for indoor installation and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Standards

  • IEC 60502
  • DIN VDE 0276 part 620
  • HD 620 S1

Construction

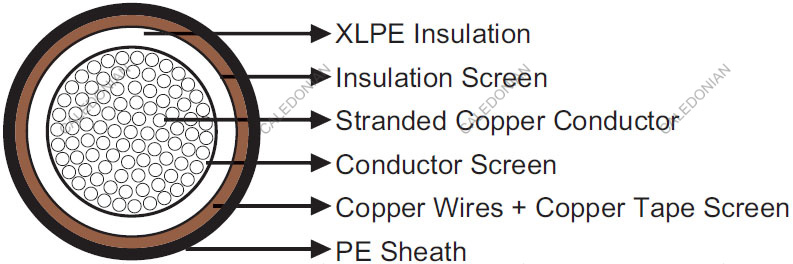

N2XS2Y Medium Voltage Power Cable
Conductor Stranded bare copper conductor according to HD 383
Conductor Screen Semiconducting compound
Insulation XLPE, PE-compound DIX8 to HD 620.1
Insulation Screen Semiconducting compound
Tape Conductive material
Screen Braiding of copper wires with one or two tapes applied helically
Tape Separation tape
Sheath PE, compound DMP2 to HD 620.1

Technical Data

Rated Voltage U0/U (Um) 6/10 kV, 12/20 kV, 18/30 kV
Operating Temperatures -20℃~+90℃
Minimum Bending Radius 15×OD
Short-circuit Temperature 250℃

Dimensions and Weight

6/10 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×35 rm/16 25.5 910
1×50 rm/16 26.5 990
1×70 rm/16 28.5 1205
1×95 rm/16 29.5 1520
1×120 rm/16 31.5 1760
1×150 rm/16 32.5 2020
1×150 rm/25 32.5 2130
1×185 rm/16 34.5 2360
1×185 rm/25 34.5 2470
1×240 rm/16 36.5 2960
1×240 rm/25 36.5 3020
1×300 rm/25 38.5 3630
1×400 rm/35 42.5 4560
1×500 rm/35 45.5 5580

12/20 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×35 rm/16 27.5 960
1×50 rm/16 28.5 1160
1×70 rm/16 30.5 1410
1×95 rm/16 31.5 1670
1×120 rm/16 33.5 1960
1×150 rm/16 34.5 2220
1×150 rm/25 34.5 2310
1×185 rm/16 36.5 2620
1×185 rm/25 36.5 2670
1×240 rm/16 39.0 3160
1×240 rm/25 39.0 3270
1×300 rm/25 41.0 3880
1×400 rm/35 44.5 4820
1×500 rm/35 47.5 5860

18/30 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×50 rm/16 35.5 1410
1×70 rm/16 37.5 1660
1×95 rm/16 38.5 1970
1×120 rm/16 40.5 2220
1×150 rm/25 41.5 2650
1×185 rm/25 43.5 2980
1×240 rm/25 45.5 3570
1×300 rm/25 48.5 4220
1×400 rm/25 51.5 5170
1×500 rm/25 54.5 6260
