N2XH 0.6/1kV LSOH Power Cable

Application

These cables are designed for energy supply, suitable for fixed installation in dry, damp or wet environments; in, above, on and beneath plaster as well as in masonary walls and in concrete, also suitable for outdoor applications and in underground by using in conduits or tubes.

Standards

  • DIN VDE 0276 part 604

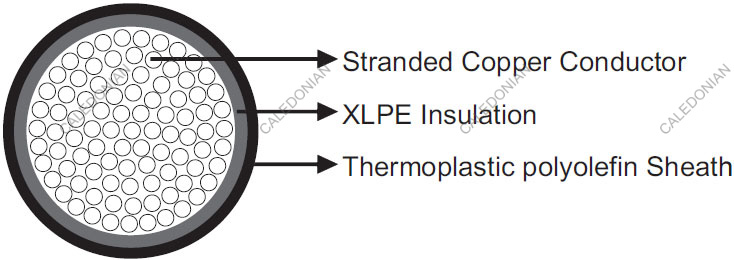

Construction

N2XH 0.6/1kV LSOH Power Cable
Conductor Bare copper conductor wire according to VDE 0295/IEC 60228
Insulation Halogen free cross-linked polyethylene (XLPE), Type 2XI1
Inner Covering Overall filled inner sheath covered by filling compound or wrapped tape
Sheath Thermoplastic polyolefin, Type HM4

Technical Data

Rated Voltage Uo/U (Um) 0.6/1kV
Operating Temperatures -30℃~+ 90℃
Minimum Bending Radius 15×OD
Flame Retardant DIN VDE 0482 part 266-2/BS 4066 part 3/EN 50266-2/IEC 60332-3
Halogen Free DIN VDE 0482 part 267/EN 50267-2-1/IEC 60754
Corrosive Gases DIN VDE 0482 part 267/EN 50267-2-2/IEC 60754
Smoke Density DIN VDE 0482 part 268/HD 606/EN 50268-1+2/ IEC 61034/BS 7622 part 1+2

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×185 rm 25.0 1910
1×240 rm 28.0 2370
1×300 rm 30.0 2970

rm: round conducter, multi wire
