EPR/HFXLEVA Medium Voltage Torsion Resistant Cable
Application
These cables having torsion resistant, good bending and halogen free are specifically designed for the torsion applications in wind turbines, suitable for transmit energy from the generator to the transformer, which is usually located at the base of the tower.
Standards
- IEC 60502

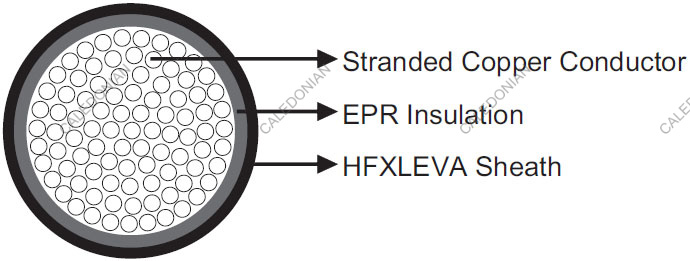

Construction
Conductor | Stranded tinned copper, class 5/class 6 according to IEC 60228 |
Insulation | EPR |
Sheath | HFXLEVA |
Technical Data
Rated Voltage U0/U(Um) | 1.8/3kV |
Operating Temperatures | -40℃~+125℃ |
Minimum Bending Radius | 6×OD |
Torsion Application | +/-180°/m |
Flame Retardant | IEC 60332-3 |
Halogen Free | IEC 60754 |
Corrosive Gases | IEC 60754 |
Smoke Density | IEC 61034 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
UV Resistant | Yes |
Cold Resistant | CSA C 22.2 |
Dimensions and Weight
1.8/3kV
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm^2 | mm | kg/km |
1×25 | 12.9 | 516 |
1×35 | 14.3 | 670 |
1×50 | 16.5 | 840 |
1×70 | 18.6 | 1112 |
1×95 | 21.6 | 1520 |
1×120 | 23.7 | 1880 |
1×150 | 26.2 | 2513 |
1×185 | 29.9 | 3272 |
1×240 | 32.1 | 3534 |
1×300 | 34.5 | 4020 |
1×400 | 39.3 | 5640 |
