H07ZZ-F 450/750V Torsion Resistant Cable
Application
These cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines and to be used for the loop.
Standards

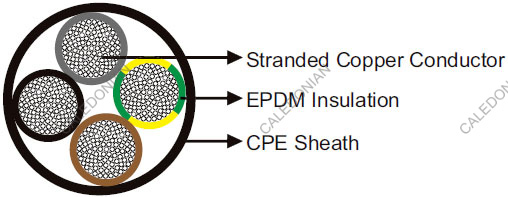

Construction
| Conductor |
Stranded bare copper, fine wire class 5 according to DIN VDE 0295/HD 383/ IEC 60228. |
| Insulation |
Special cross-linked EPDM rubber (type EI7) for high temperatures. |
| Sheath |
Special cross-linked CPE (type EM7). |
Technical Data
| Rated Voltage U0/U (Um) |
450/750V |
| Operating Temperatures |
-40℃~+90℃ |
| Maximum Permissible Tensile Load |
15 N/mm^2 |
| Minimum Bending Radius |
flexing: 6×OD; fixed: 4×OD |
| Torsion Application |
+/-150°/m |
| Short-circuit Temperature |
250℃ |
| Flame Retardant |
EN 50265-1/EN 50265-2-1/IEC 60332-1/IEC 60332-3 |
| Smoke Density |
LSF EN 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
| Water Resistant |
Yes |
| Impact Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×(G)10 |
10.3 |
175 |
| 1×(G)16 |
11.7 |
245 |
| 1×(G)25 |
13.9 |
365 |
| 1×(G)35 |
15.7 |
470 |
| 1×(G)70 |
20.3 |
880 |
| 1×(G)120 |
24.7 |
1430 |
| 1×(G)150 |
27.1 |
1740 |
| 1×(G)185 |
29.5 |
2160 |
| 1×(G)240 |
32.8 |
2730 |
| 1×50 |
17.9 |
662 |
| 1×95 |
22.7 |
1160 |
| 1×300 |
36.0 |
3480 |
| 1×400 |
40.2 |
4510 |
| 2×1.5 |
9.4 |
110 |
| 2×10 |
19.4 |
530 |
| 2×16 |
21.9 |
730 |
| 2×2.5 |
11.2 |
160 |
| 2×4 |
12.9 |
235 |
| 2×6 |
14.1 |
275 |
| 2×25 |
26.2 |
1060 |
| 3×25 |
28.6 |
1345 |
| 3×35 |
32.2 |
1760 |
| 3×50 |
37.3 |
2390 |
| 3×70 |
43.0 |
3110 |
| 3×95 |
47.2 |
4170 |
| 3×(G)1.5 |
10.1 |
130 |
| 3×(G)2.5 |
12.0 |
195 |
| 3×(G)4 |
13.9 |
285 |
| 3×(G)6 |
15.6 |
340 |
| 3×(G)10 |
21.1 |
650 |
| 3×(G)16 |
23.9 |
910 |
| 3×120 |
51.7 |
5060 |
| 3×150 |
57.0 |
6190 |
| 4G1.5 |
11.2 |
160 |
| 4G2.5 |
13.6 |
240 |
| 4G4 |
15.5 |
350 |
| 4G6 |
17.1 |
440 |
| 4G10 |
23.5 |
810 |
| 4G16 |
25.9 |
1150 |
| 4G25 |
31.0 |
1700 |
| 4G35 |
35.3 |
2170 |
| 4G50 |
40.5 |
3030 |
| 4G70 |
46.4 |
3990 |
| 4G95 |
52.2 |
5360 |
| 4G120 |
56.5 |
6480 |
| 5G1.5 |
12.2 |
230 |
| 5G2.5 |
14.7 |
295 |
| 5G4 |
17.1 |
430 |
| 5G6 |
19.0 |
540 |
| 5G10 |
25.0 |
1020 |
| 5G16 |
28.7 |
1350 |
| 5G25 |
35.0 |
2080 |
| 5G35 |
38.4 |
2650 |
| 5G50 |
43.9 |
3750 |
| 5G70 |
50.5 |
4950 |
| 5G95 |
57.8 |
6700 |
| 6G1.5 |
14.7 |
295 |
| 6G2.5 |
16.9 |
390 |
| 7G1.5 |
16.5 |
350 |
| 7G2.5 |
18.5 |
460 |
| 8×1.5 |
17.0 |
400 |
| 10G1.5 |
19.0 |
470 |
| 12G1.5 |
19.3 |
500 |
| 12G2.5 |
22.6 |
670 |
| 18G1.5 |
22.6 |
725 |
| 18G2.5 |
26.5 |
980 |
| 24G1.5 |
26.4 |
980 |
| 24G2.5 |
31.4 |
1390 |
G: with green-yellow earth core ×: without green-yellow earth core
