H05V-K/H07V-K Internal Wiring Cable
Application
These cables are designed for the intenal wiring of devices, distributor and switchboards and also for protective laying to the lightings, suitable for laying in tubes, under and surface mounting of plasters and also in closed installation conduits.
Standards
- DIN VDE 0281 part 3
- HD 21.3 S3
- IEC 60227-3

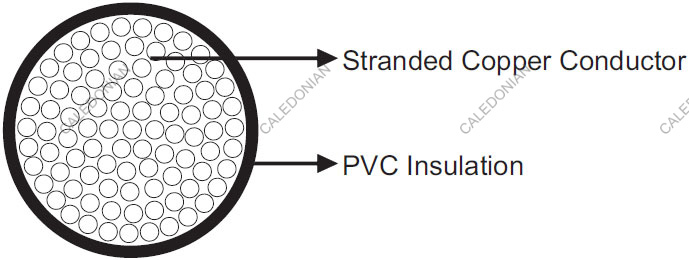

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/HD 383/ IEC 60228 |
| Insulation |
PVC |
Technical Data
| Rated Voltage U0/U(Um) |
300/500V(H05V-K); 450/750V(H07V-K) |
| Operating Temperatures |
flexing: -5℃~+70℃; fixed: -30℃~+80℃ |
| Minimum Bending Radius |
15×OD |
| Flame Retardant |
VDE 0482-332-1-2/IEC 60332-1 |
| Silicone Free |
Yes |
Dimensions and Weight
H05V-K
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×0.5 |
2.1 |
9 |
| 1×0.75 |
2.4 |
12 |
| 1×1 |
2.6 |
15 |
H07V-K
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×1.5 |
3.0 |
24 |
| 1×2.5 |
3.7 |
35 |
| 1×4 |
4.3 |
51 |
| 1×6 |
4.9 |
71 |
| 1×10 |
6.5 |
118 |
| 1×16 |
8.0 |
180 |
| 1×25 |
9.8 |
278 |
| 1×35 |
11.0 |
375 |
| 1×50 |
13.0 |
560 |
| 1×70 |
15.5 |
780 |
| 1×95 |
17.0 |
952 |
| 1×120 |
19.7 |
1200 |
| 1×150 |
21.3 |
1505 |
| 1×185 |
23.5 |
1845 |
| 1×240 |
27.4 |
2400 |
