DLO 2kV Torsion Resistant Cable to UL 44

Application

These cables are used for main power layout from the nacelle to the base of the wind tower.

Standards

  • UL 44
  • ICEA S-68-516/NEMA WC-8

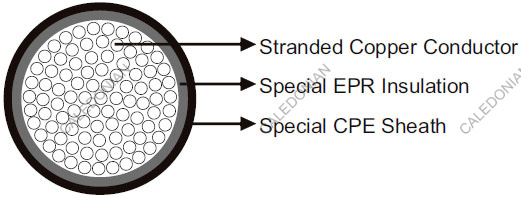

Construction

DLO 2kV Torsion Resistant Cable to UL 44
Conductor Stranded tinned copper according to ASTM B-172/ ASTM B-33.
Insulation Special EPR. XLPO can be offered upon request.
Sheath Special CPE. XLPO can be offered upon request.

Technical Data

Rated Voltage U0/U (Um) 2000V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius flexing: 6×OD; fixed: 4×OD
Torsion Application +/-180°/m
Flame Retardant IEEE 1202/CSA FT4 FT1
Oil Resistant Yes
UV Resistant Yes
Cold Resistant CSA C 22.2

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×14 5.9 37
1×12 6.3 69
1×10 7.2 100
1×8 8.2 142
1×6 10.1 200
1×4 11.5 286
1×2 12.6 370
1×1 16.1 637
1×1/0 17.5 715
1×2/0 18.5 830
1×3/0 20.2 1104
1×4/0 21.7 1298
1×262 24.8 1590
1×313 26.4 1872
1×373 28.2 2176
1×444 30.0 2570
1×535 32.2 3046
1×646 34.8 3600
1×777 37.0 4290
1×929 39.5 5144
1×1111 44.4 6070
