Halogen Free Torsion Resistant Fire Alarm Cable 24V

Application

These fire alarm cables are designed for the torsion applications in the loop section of wind turbines.

Standards

  • IEC 60502
  • DIN VDE 0250

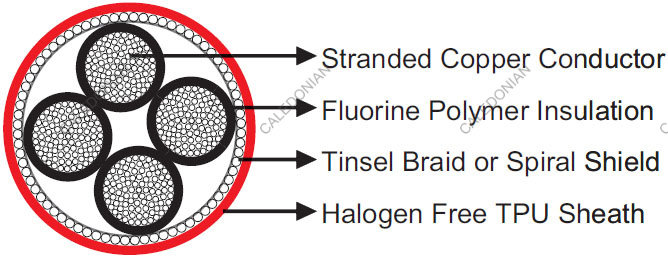

Construction

Halogen Free Torsion Resistant Fire Alarm Cable 24V
Conductor Stranded copper wires, class 6 according to DIN VDE 0295/ IEC 60228
Insulation Fluorine polymer
Screen Tinsel braid or spiral shield
Sheath Flame retardant halogen-free TPU

Technical Data

Rated Voltage U0/U(Um) 24V
Operating Temperatures -50℃~+90℃
Minimum Bending Radius 7.5×OD
Torsion Application +/-1080°/5m
Flame Retardant IEC 60332-3
Halogen Free IEC 60754
Oil Resistant Yes
Abrasion Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
4×0.75 6.6 82
