AL Conductor HEPR/PO 0.6/1kV LSOH Power Cable 90°C

Application

These cables are designed for main power lines of permanent routing in wind tower installation.

Standards

  • IEC 60502-1

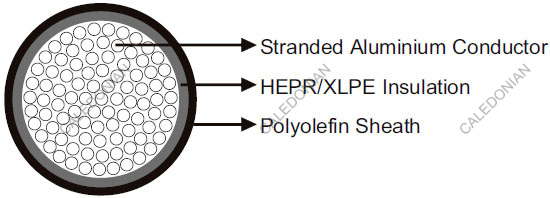

Construction

AL Conductor HEPR/PO 0.6/1kV LSOH Power Cable 90°C
Conductor Aluminium conductor, class 2 to IEC 60228
Insulation HEPR. XLPE can be offered upon request
Inner Covering Rubber compound type GM1b
Sheath Compound based on polyolefin, type HXM1

Technical Data

Rated Voltage U0/U (Um) 0.6/1kV
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 4×OD
Short-circuit Temperature 250℃
Flame Retardant IEC 60332-1
Halogen Free IEC 60754
Gases Corrosively DIN EN 50267-2/ IEC 60754
Smoke Density IEC 61034
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×50 13.0 266
1×70 15.0 352
1×95 16.5 450
1×120 18.0 556
1×150 20.0 686
1×185 22.5 842
1×240 26.0 1076
1×300 29.0 1299
1×400 32.5 1680
3×150 44.0 2756
4×150 49.0 3367
