YCY 300/500V
Application
These screened cables are designed for use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics.
Standards

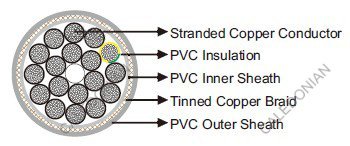

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation |
PVC Type YI 2. |
| Inner Sheath |
PVC |
| Screen |
Tinned copper braid. |
| Sheath |
PVC Type YM 2. |
Technical Data
| Rated Voltage Uo/U (Um) |
300/500V |
| Operating Temperatures |
flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius |
flexing: 20×OD; fixed: 10×OD |
| Flame Retardant |
IEC 60332-1 |
| Ozone Resistant |
Yes |
| Silicone Free |
Yes |
| Lead Free |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of coresGmm2 |
mm |
kg/km |
| 2×0.5 |
5.6 |
65 |
| 3G0.5 |
6.6 |
72 |
| 4G0.5 |
7.6 |
77 |
| 5G0.5 |
8.3 |
90 |
| 7G0.5 |
9.3 |
114 |
| 12G0.5 |
11.0 |
160 |
| 18G0.5 |
12.0 |
216 |
| 2×0.75 |
7.1 |
71 |
| 3G0.75 |
7.4 |
82 |
| 4G0.75 |
7.9 |
94 |
| 5G0.75 |
8.4 |
109 |
| 7G0.75 |
9.0 |
122 |
| 12G0.75 |
11.2 |
192 |
| 18G0.75 |
12.7 |
261 |
| 25G0.75 |
16.0 |
388 |
| 2×1 |
7.3 |
78 |
| 3G1 |
7.6 |
90 |
| 4G1 |
8.1 |
106 |
| 5G1 |
8.7 |
121 |
| 7G1 |
9.3 |
144 |
| 12G1 |
11.7 |
225 |
| 18G1 |
13.5 |
315 |
| 25G1 |
16.6 |
455 |
| 34G1 |
19.5 |
657 |
| 41G1 |
20.4 |
698 |
| 50G1 |
22.9 |
918 |
| 2×1.5 |
7.9 |
94 |
| 3G1.5 |
8.3 |
112 |
| 4G1.5 |
9.1 |
133 |
| 5G1.5 |
9.7 |
148 |
| 7G1.5 |
10.2 |
183 |
| 12G1.5 |
13.3 |
295 |
| 18G1.5 |
16.4 |
451 |
| 25G1.5 |
18.6 |
599 |
| 3G2.5 |
9.5 |
158 |
| 4G2.5 |
10.3 |
191 |
| 5G2.5 |
11.5 |
213 |
| 7G2.5 |
12.3 |
274 |
| 12G2.5 |
13.3 |
530 |
| 3G4 |
10.7 |
218 |
| 4G4 |
12.2 |
274 |
| 5G4 |
12.7 |
317 |
| 4G6 |
14.0 |
378 |
| 5G6 |
16.4 |
493 |
| 4G10 |
17.9 |
636 |
| 5G10 |
19.4 |
760 |
| 4G16 |
21.5 |
953 |
| 5G16 |
23.2 |
1130 |
| 4G25 |
25.2 |
1401 |
| 5G25 |
28.2 |
1935 |
| 4G35 |
29.9 |
1886 |
| 5G35 |
32.0 |
2268 |
| 4G50 |
34.4 |
2674 |
| 5G50 |
43.0 |
4150 |
| 4G70 |
46.8 |
4600 |
| 5G70 |
51.8 |
5750 |
| 4G95 |
51.0 |
6060 |
| 5G95 |
56.0 |
7580 |
| 4G120 |
56.0 |
7315 |
| 5G120 |
63.0 |
9150 |
| 4G150 |
63.5 |
9680 |
| 5G150 |
69.5 |
10170 |
G: with green-yellow earth core
×: without green-yellow earth core
