QFCI
Application
These cables are designed for data transmission in the Tower.
Standards
- IEC 60794

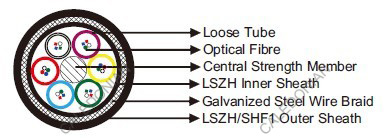

Construction
 |
| Fibre Type | ?Loose Tube. |
| Support Element | Central strength member. |
| Inner Sheath | LSZH. |
| Armour | Galvanized steel wire braid (GSWB). |
| Outer Sheath | SHF1/LSZH. |
Technical Data
| Operating Temperatures | -40℃~+70℃ |
| Minimum Bending Radius | 350mm |
| Flame Retardant | IEC 60332-3 |
| Halogen Free | IEC 60754 |
| Smoke Density | IEC 61034 |
| Fire Resistant | IEC 60331-25 |
| No-Fire Propagation | IEC 60331-3-24 |
Dimensions and Weight
| Construction | Fibre Type | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| No. of fibres | - | mm | kg/km |
| 2~48 | Multimode G50/125 | 16.5 | 350 |
| 2~48 | Multimode G62.5/125 | 16.5 | 350 |
| 2~48 | Single-Mode E9/125 | 16.5 | 350 |
