PUR Sheathed, Screened, Halogen Free Data Cable
Application
These halogen free cables are used as drag chain cables for frequent and fast lifting and bending stresses in machines and tool building, robot systems and constantly moving machine components.
Standards
- UL AWM Style 20233
- CSA AWM I/II A/B

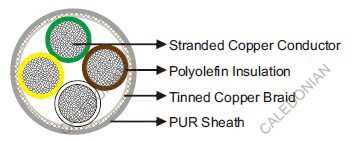

Construction
| Conductor |
Stranded bare copper, class 6 according to VDE 0295/BS 6360. |
| Insulation |
Polyolefin. |
| Screen |
Tinned copper wire braid. |
| Sheath |
Full polyurethane sheath TMPU. |
Technical Data
| Rated Voltage Uo/U (Um) |
300V |
| Operating Temperatures |
flexing: -40℃~+80℃; fixed: -50℃~+80℃ |
| Minimum Bending Radius |
flexing: 7.5×OD; fixed: 4×OD |
| Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant |
Yes |
| Halogen Free |
Yes |
| Ozone, Oxygen Resistant |
Yes |
| Silicone Free |
Yes |
| UV Resistant |
Yes |
| Abrasion Resistance |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 26AWG |
| 2×0.14 |
4.3 |
32 |
| 3×0.14 |
4.6 |
35 |
| 4×0.14 |
4.8 |
40 |
| 5×0.14 |
5.1 |
45 |
| 7×0.14 |
5.8 |
66 |
| 10×0.14 |
6.8 |
86 |
| 12×0.14 |
7.4 |
94 |
| 14×0.14 |
7.4 |
102 |
| 18×0.14 |
7.8 |
118 |
| 24×0.14 |
8.8 |
149 |
| 25×0.14 |
9.2 |
156 |
| 24AWG |
| 2×0.25 |
5.0 |
38 |
| 3×0.25 |
5.2 |
44 |
| 4×0.25 |
5.6 |
51 |
| 5×0.25 |
5.9 |
68 |
| 7×0.25 |
6.8 |
82 |
| 10×0.25 |
8.3 |
110 |
| 12×0.25 |
8.4 |
124 |
| 14×0.25 |
8.9 |
135 |
| 18×0.25 |
9.5 |
150 |
| 24×0.25 |
10.8 |
194 |
| 25×0.25 |
11.3 |
204 |
| 22AWG |
| 2×0.34 |
5.4 |
45 |
| 3×0.34 |
5.7 |
60 |
| 4×0.34 |
6.0 |
76 |
| 5×0.34 |
6.5 |
82 |
| 7×0.34 |
7.7 |
110 |
| 10×0.34 |
9.1 |
148 |
| 12×0.34 |
10.0 |
166 |
| 14×0.34 |
10.0 |
185 |
| 18×0.34 |
10.6 |
216 |
| 24×0.34 |
12.1 |
291 |
| 25×0.34 |
12.8 |
305 |
G: with green-yellow earth core
×: without green-yellow earth core
