PUR Sheathed, Halogen Free S-FTP Cat5
Application
These cables are designed for the most extreme requirements in the industry and other heavy-duty environments in torsion applications.
Standards
- ISO/IEC 11801
- EN 50173
- EIA/TIA 568-A, Category 5

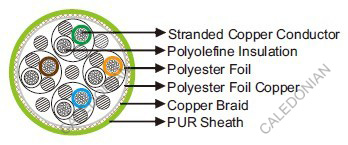

Construction
Conductor | Bare copper 19×26AWG. |
Insulation | PO. |
Cable Element | Double core. |
Shielding | Polyester tape over stranded bundle. |
Screen 1 | Polyester foil copper, bare. |
Screen 2 | Copper braid. |
Sheath | PUR |
Technical Data
Operating Temperatures | -20℃~+80℃ |
Minimum Bending Radius | 80mm |
Impedance @1~100MHz | 100Ohm +/-15% |
Nominal Mutual Capacitance | 50nF/km |
Attenuation @10MHz | <1.3dB/100m |
Attenuation @16MHz | <1.6dB/100m |
Attenuation @62.5MHz | <3.2dB/100m |
Attenuation @100MHz | <4dB/100m |
Next @10MHz | 47dB |
Next @16MHz | 44dB |
Next @62.5MHz | 35dB |
Next @100MHz | 32dB |
ACR @10MHz | 45.7dB |
ACR @16MHz | 42.4dB |
ACR @62.5MHz | 31.8dB |
ACR @100MHz | 28dB |
Flame Retardant | IEC 60332-1 |
Halogen Free | IEC 60754 |
Smoke Density | IEC 61034 |
Oil Resistant | Yes |
UV Resistant | Yes |
Dimensions and Weight
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm2 | mm | kg/km |
4×2×0.64 | 7.5 | 79 |
