PUR Sheathed, Halogen Free CAN BUS 2×2×0.22mm2
Application
These cables with its oil-resistant PUR sheath and increased temperature resistance are employed in the wind turbine area and similar sectors for monitoring wind speed, temperature and performance parameters.
Standards

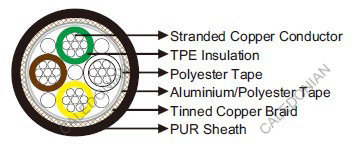

Construction
| Conductor |
Stranded bare copper 7×0.203 mm (Section 0.22 mm2) |
| Insulation |
TPE compound. |
| Center Filler |
Fibrillated polypropylene filler |
| Cable Element |
Star quad. |
| Screen 1 |
Polyester tape over stranded bundle. |
| Screen 2 |
Aluminium/Polyester tape (Aluminium outside). |
| Overall Screen |
Tinned copper braid. |
| Sheath |
PUR compound. |
Technical Data
| Operating Temperatures |
-25℃~+100℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed installation: 5×OD |
| Impedance |
120Ohm +/-15% |
| Maximum Conductor Resistance @20°C |
98Ohm/km |
| Nominal Mutual Capacitance |
41nF/km |
| Minimum Insulation resistance |
1GOhm×km |
| Flame Retardant |
EN 50265-2-1/IEC 60332-1 |
| Halogen Free |
HD22.13/EN50267-1/IEC 60754 |
| Gases Corrosively |
HD22.13/EN50267-2/IEC 60754 |
| Smoke Density |
EN50268/IEC 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×2×0.22 |
6.4 |
60 |
