PUR Sheathed CAN BUS 2×2×0.25mm2
Application
These cables with its oil-resistant PUR sheath and increased temperature resistance is employed in the wind turbine area and similar sectors for monitoring wind speed, temperature and performance parameters.
Standards
- UL/CSA 21223
- DIN 19245 T3
- EN 50170

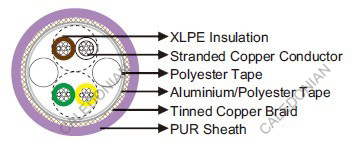

Construction
Conductor | Stranded bare copper 19×24AWG (Section 0.25 mm2). |
Insulation | Irradiated cross-linked PE. |
Cable Element | Double core. |
Screen 1 | Polyester tape over stranded bundle. |
Screen 2 | Aluminium/Polyester tape. |
Overall Screen | Tinned copper braid. |
Sheath | PUR compound. |
Technical Data
Operating Temperatures | -40℃~+105℃ |
Minimum Bending Radius | 126mm |
Impedance | 120Ohm +/-10% |
Maximum Conductor Resistance @20°C | 87Ohm/km |
Nominal Mutual Capacitance | 42nF/km |
Minimum Insulation resistance | 1GOhm×km |
Oil Resistant | Yes |
UV Resistant | Yes |
Dimensions and Weight
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm2 | mm | kg/km |
2×2×0.25 | 8.4 | 80 |
