LiYCY Data Cable
Application
These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.
Standards

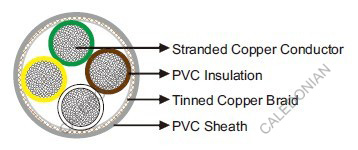

Construction
Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation |
PVC type TI2. |
Drain Wire |
Tinned copper conductor. |
Screen |
Tinned copper wire braid. |
Sheath |
PVC type TM2. |
Technical Data
Rated Voltage Uo/U (Um) |
350V (<0.25 mm2); 500V (≥0.25 mm2) |
Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
Minimum Bending Radius |
flexing: 10×OD; fixed: 5×OD |
Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant |
Yes |
Silicone Free |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm2 |
mm |
kg/km |
1×0.14 |
2.5 |
16 |
2×0.14 |
3.7 |
20 |
3×0.14 |
3.9 |
27 |
4×0.14 |
4.1 |
32 |
5×0.14 |
4.4 |
37 |
6×0.14 |
4.9 |
42 |
7×0.14 |
4.9 |
48 |
8×0.14 |
5.2 |
55 |
10×0.14 |
6.2 |
65 |
12×0.14 |
6.2 |
77 |
14×0.14 |
6.6 |
79 |
16×0.14 |
6.9 |
89 |
18×0.14 |
7.2 |
103 |
20×0.14 |
7.7 |
116 |
21×0.14 |
7.9 |
120 |
24×0.14 |
8.3 |
131 |
25×0.14 |
8.5 |
136 |
27×0.14 |
8.5 |
142 |
30×0.14 |
9.3 |
157 |
32×0.14 |
9.6 |
163 |
36×0.14 |
9.9 |
182 |
40×0.14 |
10.2 |
209 |
42×0.14 |
10.5 |
217 |
44×0.14 |
11.2 |
226 |
48×0.14 |
11.3 |
240 |
52×0.14 |
11.8 |
270 |
56×0.14 |
12.1 |
320 |
61×0.14 |
12.4 |
370 |
80×0.14 |
14.1 |
510 |
100×0.14 |
15.5 |
580 |
1×0.25 |
2.9 |
27 |
2×0.25 |
4.2 |
31 |
3×0.25 |
4.3 |
36 |
4×0.25 |
4.7 |
40 |
5×0.25 |
5.3 |
51 |
6×0.25 |
5.7 |
58 |
7×0.25 |
5.7 |
64 |
8×0.25 |
6.6 |
82 |
10×0.25 |
7.2 |
85 |
12×0.25 |
7.3 |
90 |
14×0.25 |
7.9 |
110 |
16×0.25 |
8.3 |
142 |
18×0.25 |
8.9 |
144 |
19×0.25 |
9.1 |
146 |
20×0.25 |
9.4 |
150 |
21×0.25 |
9.4 |
152 |
24×0.25 |
10.0 |
163 |
25×0.25 |
10.1 |
169 |
27×0.25 |
10.1 |
176 |
30×0.25 |
11.1 |
189 |
32×0.25 |
11.1 |
204 |
36×0.25 |
11.9 |
219 |
37×0.25 |
11.9 |
230 |
40×0.25 |
12.4 |
247 |
42×0.25 |
12.8 |
269 |
44×0.25 |
12.8 |
292 |
48×0.25 |
13.5 |
317 |
52×0.25 |
14.1 |
330 |
56×0.25 |
14.5 |
343 |
61×0.25 |
14.9 |
365 |
80×0.25 |
17.1 |
480 |
100×0.25 |
19.6 |
605 |
1×0.34 |
3.2 |
24 |
2×0.34 |
4.8 |
30 |
3×0.34 |
5.2 |
37 |
4×0.34 |
5.5 |
48 |
5×0.34 |
6.0 |
54 |
6×0.34 |
6.7 |
61 |
7×0.34 |
6.7 |
67 |
8×0.34 |
7.8 |
81 |
10×0.34 |
8.4 |
103 |
12×0.34 |
8.5 |
110 |
14×0.34 |
9.0 |
153 |
16×0.34 |
9.4 |
159 |
18×0.34 |
9.8 |
172 |
19×0.34 |
9.9 |
181 |
20×0.34 |
10.1 |
191 |
21×0.34 |
10.7 |
199 |
24×0.34 |
10.7 |
229 |
25×0.34 |
12.0 |
241 |
27×0.34 |
12.1 |
258 |
30×0.34 |
12.1 |
290 |
32×0.34 |
12.6 |
305 |
36×0.34 |
12.6 |
330 |
37×0.34 |
13.7 |
348 |
40×0.34 |
13.7 |
364 |
42×0.34 |
14.6 |
389 |
44×0.34 |
14.6 |
414 |
48×0.34 |
14.6 |
420 |
52×0.34 |
14.6 |
450 |
56×0.34 |
16.2 |
480 |
61×0.34 |
16.6 |
520 |
80×0.34 |
17.1 |
580 |
100×0.34 |
19.4 |
694 |
1×0.5 |
3.4 |
40 |
2×0.5 |
5.3 |
45 |
3×0.5 |
5.6 |
55 |
4×0.5 |
6.0 |
61 |
5×0.5 |
6.7 |
76 |
6×0.5 |
7.3 |
89 |
7×0.5 |
7.3 |
98 |
8×0.5 |
8.5 |
117 |
10×0.5 |
9.2 |
135 |
12×0.5 |
9.5 |
157 |
14×0.5 |
10.0 |
190 |
16×0.5 |
10.6 |
210 |
18×0.5 |
10.7 |
217 |
19×0.5 |
11.2 |
246 |
20×0.5 |
11.9 |
275 |
24×0.5 |
12.6 |
337 |
25×0.5 |
12.7 |
351 |
27×0.5 |
12.7 |
373 |
30×0.5 |
14.0 |
396 |
32×0.5 |
14.5 |
431 |
34×0.5 |
15.3 |
440 |
36×0.5 |
15.3 |
445 |
37×0.5 |
16.3 |
458 |
40×0.5 |
16.3 |
470 |
50×0.5 |
18.0 |
570 |
61×0.5 |
19.1 |
650 |
80×0.5 |
21.8 |
780 |
100×0.5 |
24.3 |
990 |
1×0.75 |
3.8 |
41 |
2×0.75 |
6.0 |
59 |
3×0.75 |
6.2 |
66 |
4×0.75 |
6.7 |
77 |
5×0.75 |
7.3 |
93 |
6×0.75 |
8.1 |
113 |
7×0.75 |
8.2 |
130 |
8×0.75 |
9.0 |
145 |
10×0.75 |
10.3 |
180 |
12×0.75 |
10.4 |
202 |
14×0.75 |
11.2 |
225 |
16×0.75 |
11.8 |
275 |
18×0.75 |
12.6 |
292 |
19×0.75 |
12.6 |
322 |
20×0.75 |
13.1 |
362 |
24×0.75 |
14.1 |
415 |
25×0.75 |
14.3 |
435 |
27×0.75 |
14.3 |
467 |
30×0.75 |
15.7 |
486 |
32×0.75 |
16.3 |
530 |
34×0.75 |
17.1 |
570 |
36×0.75 |
17.1 |
600 |
37×0.75 |
17.6 |
640 |
40×0.75 |
17.8 |
680 |
42×0.75 |
18.4 |
714 |
61×0.75 |
21.5 |
900 |
80×0.75 |
24.5 |
1200 |
100×0.75 |
27.2 |
1440 |
2×1 |
6.4 |
65 |
3×1 |
6.7 |
80 |
4×1 |
7.2 |
98 |
5×1 |
8.0 |
127 |
6×1 |
8.6 |
144 |
7×1 |
8.6 |
158 |
8×1 |
10.0 |
197 |
10×1 |
11.2 |
232 |
12×1 |
11.4 |
260 |
14×1 |
12.0 |
302 |
16×1 |
12.8 |
346 |
19×1 |
13.4 |
412 |
24×1 |
15.2 |
493 |
27×1 |
15.4 |
562 |
37×1 |
18.9 |
790 |
2×1.5 |
7.3 |
88 |
3×1.5 |
7.6 |
100 |
4×1.5 |
8.2 |
126 |
5×1.5 |
9.1 |
160 |
6×1.5 |
9.9 |
192 |
7×1.5 |
9.9 |
208 |
8×1.5 |
10.8 |
244 |
10×1.5 |
13.2 |
315 |
12×1.5 |
13.2 |
338 |
14×1.5 |
13.9 |
383 |
16×1.5 |
14.8 |
424 |
19×1.5 |
15.6 |
506 |
24×1.5 |
17.6 |
690 |
27×1.5 |
17.9 |
781 |
37×1.5 |
21.9 |
941 |
