LiHH Multicore Halogen-free Data Cable
Application
These halogen-free cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.
Standards

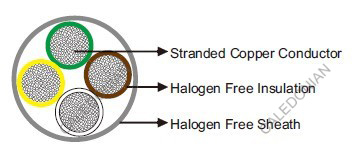

Construction
| Conductor |
Stranded bare copper. |
| Insulation |
Halogen free compound. |
| Sheath |
Halogen free compound. |
Technical Data
| Rated Voltage Uo/U (Um) |
250V |
| Operating Temperatures |
flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 7.5×OD |
| Flame Retardant |
DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-3 |
| Gases Corrosively |
VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Halogen Free |
VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Oil Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.14 |
3.4 |
12 |
| 3×0.14 |
3.6 |
15 |
| 4×0.14 |
3.8 |
17 |
| 5×0.14 |
4.1 |
22 |
| 6×0.14 |
4.4 |
25 |
| 7×0.14 |
4.4 |
26 |
| 8×0.14 |
5.1 |
29 |
| 10×0.14 |
5.4 |
35 |
| 12×0.14 |
5.8 |
43 |
| 20×0.14 |
7.2 |
71 |
| 25×0.14 |
8.0 |
91 |
| 2×0.25 |
4.0 |
22 |
| 3×0.25 |
4.2 |
25 |
| 4×0.25 |
4.5 |
28 |
| 5×0.25 |
4.9 |
34 |
| 6×0.25 |
5.3 |
39 |
| 7×0.25 |
5.3 |
42 |
| 8×0.25 |
6.4 |
50 |
| 10×0.25 |
7.0 |
60 |
| 12×0.25 |
7.2 |
67 |
| 16×0.25 |
7.9 |
85 |
| 2×0.34 |
4.4 |
28 |
| 3×0.34 |
4.6 |
30 |
| 4×0.34 |
5.0 |
40 |
| 5×0.34 |
5.7 |
44 |
| 7×0.34 |
6.1 |
60 |
| 10×0.34 |
7.8 |
80 |
| 12×0.34 |
8.0 |
97 |
| 3×2×0.34 |
7.4 |
49 |
| 4×2×0.34 |
8.1 |
60 |
| 2×0.5 |
4.9 |
31 |
| 3×0.5 |
5.2 |
37 |
| 4×0.5 |
5.8 |
45 |
| 5×0.5 |
6.3 |
58 |
| 7×0.5 |
7.0 |
72 |
| 12×0.5 |
9.1 |
117 |
| 21×0.5 |
11.5 |
176 |
| 2×0.75 |
5.3 |
41 |
| 4×0.75 |
6.3 |
60 |
| 5×0.75 |
7.1 |
70 |
| 7×0.75 |
7.7 |
85 |
| 12×0.75 |
10.4 |
165 |
| 3×1 |
6.1 |
57 |
| 4×1 |
6.6 |
67 |
| 3×1.5 |
7.4 |
72 |
| 4×1.5 |
8.0 |
87 |
| 5G1.5 |
8.4 |
118 |
| 7G1.5 |
9.1 |
150 |
| 5G2.5 |
10.5 |
198 |
