LiHCH Twisted Pair Halogen-free Data Cable

Application

These screened flexible cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.

Standards

  • VDE 0812

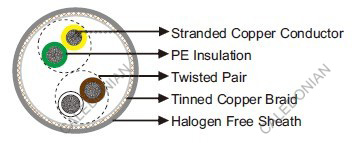

Construction

LiHCH Twisted Pair Halogen-free Data Cable
Conductor Stranded bare copper.
Insulation PE compound type 2YJ1.
Cable Element Twisted pairs.
Screen Tinned copper wire braid.
Sheath Halogen free compound type HM2.

Technical Data

Rated Voltage Uo/U (Um) 350V (≤0.14 mm2); 500V (>0.14 mm2)
Operating Temperatures flexing: -5℃~+70℃; fixed: -40℃~+70℃
Minimum Bending Radius flexing: 10×OD; fixed: 7.5×OD
Flame Retardant DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-1
Halogen Free VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754
Gases Corrosively VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm2 mm kg/km
2×2×0.14 5.2 37
3×2×0.14 6.2 47
4×2×0.14 6.4 66
5×2×0.14 7.2 76
6×2×0.14 8.2 87
7×2×0.14 8.7 94
10×2×0.14 9.9 119
12×2×0.14 10.0 135
15×2×0.14 11.3 157
18×2×0.14 12.5 190
2×2×0.25 6.1 44
3×2×0.25 7.0 66
4×2×0.25 7.5 81
5×2×0.25 8.2 98
6×2×0.25 9.3 116
7×2×0.25 9.4 120
10×2×0.25 10.6 153
12×2×0.25 11.4 175
15×2×0.25 12.9 213
18×2×0.25 13.7 248
2×2×0.34 7.3 68
3×2×0.34 8.6 92
4×2×0.34 9.6 110
5×2×0.34 10.1 128
6×2×0.34 10.6 147
7×2×0.34 11.0 154
10×2×0.34 13.1 209
12×2×0.34 14.4 245
15×2×0.34 15.2 279
18×2×0.34 16.9 363
2×2×0.5 7.6 76
3×2×0.5 9.0 107
4×2×0.5 10.3 134
5×2×0.5 10.8 150
6×2×0.5 11.4 176
7×2×0.5 11.8 185
10×2×0.5 14.3 275
12×2×0.5 15.1 330
15×2×0.5 17.0 380
18×2×0.5 18.3 450
2×2×0.75 9.0 105
3×2×0.75 10.1 137
4×2×0.75 11.5 166
5×2×0.75 12.4 200
6×2×0.75 12.5 236
7×2×0.75 13.6 255
10×2×0.75 15.7 363
12×2×0.75 17.8 434
15×2×0.75 19.3 500
18×2×0.75 20.6 580
