LiHCH Multicore Halogen-free Data Cable
Application
These screened, halogen-free cables are designed for special purpose of data transmission in wind turbines, suitable for indoor and outdoor installation.
Standards

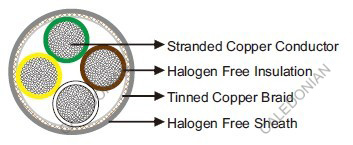

Construction
| Conductor |
Stranded bare copper. |
| Insulation |
Halogen free compound. |
| Screen |
Tinned copper wire braid. |
| Sheath |
Halogen free compound. |
Technical Data
| Rated Voltage Uo/U (Um) |
250V |
| Operating Temperatures |
flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius |
flexing: 10×OD; fixed: 7.5×OD |
| Flame Retardant |
DIN VDE 0482 part 265-2-1/EN 50265-2-1/IEC 60332-1 |
| Halogen Free |
VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively |
VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Oil Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 2×0.14 |
4.1 |
22 |
| 3×0.14 |
4.3 |
25 |
| 4×0.14 |
4.5 |
29 |
| 6×0.14 |
5.1 |
35 |
| 7×0.14 |
5.1 |
38 |
| 8×0.14 |
6.0 |
41 |
| 12×0.14 |
6.5 |
78 |
| 16×0.14 |
7.2 |
90 |
| 25×0.14 |
8.7 |
149 |
| 2×0.25 |
4.7 |
25 |
| 3×0.25 |
4.9 |
30 |
| 4×0.25 |
5.2 |
35 |
| 6×0.25 |
6.2 |
49 |
| 7×0.25 |
6.2 |
52 |
| 8×0.25 |
7.3 |
58 |
| 10×0.25 |
7.7 |
81 |
| 25×0.25 |
10.9 |
172 |
| 2×0.34 |
5.1 |
30 |
| 3×0.34 |
5.3 |
35 |
| 4×0.34 |
5.9 |
42 |
| 5×0.34 |
6.4 |
53 |
| 7×0.34 |
7.0 |
73 |
| 8×0.34 |
8.0 |
84 |
| 10×0.34 |
8.5 |
101 |
| 16×0.34 |
9.6 |
160 |
| 25×0.34 |
12.1 |
259 |
| 2×0.5 |
5.8 |
38 |
| 3×0.5 |
6.1 |
47 |
| 4×0.5 |
6.5 |
67 |
| 5×0.5 |
7.2 |
76 |
| 6×0.5 |
7.8 |
84 |
| 7×0.5 |
7.8 |
91 |
| 8×0.5 |
8.9 |
131 |
| 10×0.5 |
9.5 |
135 |
| 12×0.5 |
9.8 |
177 |
| 18×0.5 |
11.7 |
239 |
| 25×0.5 |
13.9 |
352 |
| 2×0.75 |
6.2 |
45 |
| 3×0.75 |
6.5 |
69 |
| 4×0.75 |
7.2 |
80 |
| 5×0.75 |
7.8 |
99 |
| 7×0.75 |
8.3 |
120 |
| 12G0.75 |
10.7 |
168 |
| 18G0.75 |
12.4 |
237 |
| 2×1 |
6.5 |
72 |
| 3×1 |
7.0 |
90 |
| 4×1 |
7.5 |
109 |
| 7×1 |
8.8 |
171 |
| 10×1 |
11.2 |
184 |
| 12G1 |
11.3 |
205 |
| 16×1 |
12.5 |
250 |
| 19G1 |
13.1 |
291 |
| 2×1.5 |
7.7 |
90 |
| 3×1.5 |
8.1 |
115 |
| 5×1.5 |
9.5 |
176 |
| 12G1.5 |
13.0 |
271 |
| 18G1.5 |
15.5 |
400 |
| 15G2.5 |
19.8 |
587 |
