Indoor/Outdoor PROFIBUS
Application
These cables are used in the cell and field area, suitable for indoor or outdoor installation and are equipped with special PVC or PE sheath.
Standards
- DIN 19245 T3
- EN 50170

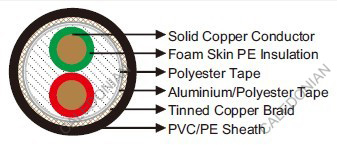

Construction
Conductor | Bare copper 1×22AWG. |
Insulation | Foam skin PE. |
Cable Element | Two cores with filler. |
Screen 1 | Polyester tape over stranded bundle. |
Screen 2 | Aluminium/Polyester tape. |
Overall Screen | Tinned copper braid. |
Sheath | PVC/PE. |
Technical Data
Operating Temperatures | -40℃~+70℃ |
Minimum Bending Radius | 120mm |
Impedance | 150Ohm +/-10% |
Maximum Conductor Resistance @20°C | 55Ohm/km |
Nominal Mutual Capacitance | 35nF/km |
Minimum Insulation Resistance | 1GOhm×km |
Attenuation @9.6kHz | <2.5dB/km |
Attenuation @38.4kHz | <4dB/km |
Attenuation @4kHz | <22dB/km |
Attenuation @16kHz | <42dB/km |
Flame Retardant | IEC 60332-1/FT 1/FT 4 |
UV Resistant | Yes |
Dimensions and Weight
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm2 | mm | kg/km |
1×2×0.64 (PVC Sheath) | 8.0 | 75 |
1×2×0.64 (PE Sheath) | 8.0 | 65 |
