I-V(ZN)H11Y Fibre Optic Breakout Cable
Application
These cables are designed for wind turbine control or LAN backbone, suitable for indoor installation or outdoor installation in ducts.
Standards
- DIN VDE 0888
- IEC 60794

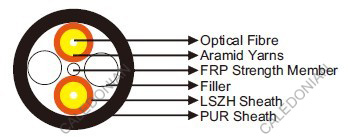

Construction
Core Type | Tight buffer. |
Strain Relief | Aramid yarns. |
Break-out Unit Sheath | LSZH. |
Central Strength Member | Dielectric Material. |
Outer Sheath | PUR |
Technical Data
Operating Temperatures | -40℃~+70℃ |
Minimum Bending Radius | 20×OD |
Torsion Application | +/-180° 500 times/2m; +/-360° 5 times/2m |
Dimensions and Weight
Construction | Fibre Type | Nominal Overall Diameter | Nominal Weight |
---|---|---|---|
No. of fibres | - | mm | kg/km |
2 | Multimode G50/125 | 7.5 | 45 |
2 | Multimode G62.5/125 | 7.5 | 45 |
2 | Single-Mode E9/125 | 7.5 | 45 |
