Halogen Free, Screened Control Cable 0.6/1 kV
Application
These screened, halogen-free, flame retardant cables are designed for instrumentation and control cables in tooling machinery, conveyor and transportation belts, production lines, in plant construction, air-conditioning systems as well as in iron and steel works, suitable for use in dry, damp and wet environments for installation above, on, in and beneath plaster as well as in masonry and concrete walls except for direct embedding in vibrated, compacted or tamped concrete.
Standards
- DIN VDE 0281 part 14
- DIN VDE 0281 part 13

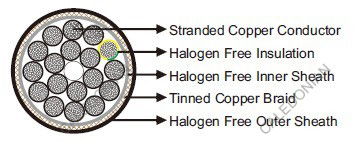

Construction
| Conductor |
Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC 60228. |
| Insulation |
Halogen-free compound TI6. |
| Inner Sheath |
Halogen-free compound. |
| Screen |
Tinned copper braid. |
| Outer Sheath |
Halogen-free compound TM7. |
Technical Data
| Rated Voltage Uo/U (Um) |
600/1000V |
| Operating Temperatures |
flexing: -5℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius |
15×OD |
| Flame Retardant |
DIN VDE 0482 Part 265-2-1/ EN 50265-2-1/IEC 60332-1 |
| Halogen Free |
VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively |
VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Smoke Density |
VDE 0482 part 1034-1+2/IEC 61034-1+2/DIN EN 61034-1+2/BS 7622 part 1+2 |
| Oil Resistant |
Yes |
| Silicone Free |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm2 |
mm |
kg/km |
| 3G0.5 |
8.6 |
150 |
| 4G0.5 |
9.4 |
170 |
| 5G0.5 |
10.1 |
199 |
| 7G0.5 |
12.1 |
235 |
| 12G0.5 |
14.7 |
320 |
| 18G0.5 |
17.3 |
428 |
| 25G0.5 |
20.6 |
503 |
| 3G0.75 |
9.0 |
155 |
| 4G0.75 |
9.9 |
190 |
| 5G0.75 |
10.8 |
228 |
| 7G0.75 |
13.0 |
323 |
| 12G0.75 |
15.8 |
410 |
| 18G0.75 |
17.9 |
560 |
| 25G0.75 |
22.8 |
730 |
| 3G1 |
9.8 |
163 |
| 4G1 |
10.8 |
200 |
| 5G1 |
12.1 |
239 |
| 7G1 |
14.5 |
289 |
| 12G1 |
17.4 |
464 |
| 18G1 |
20.7 |
628 |
| 25G1 |
24.8 |
855 |
| 3G1.5 |
10.9 |
187 |
| 4G1.5 |
12.2 |
240 |
| 5G1.5 |
13.3 |
289 |
| 7G1.5 |
16.0 |
383 |
| 12G1.5 |
19.6 |
592 |
| 18G1.5 |
23.4 |
806 |
| 25G1.5 |
28.2 |
1241 |
| 3G2.5 |
12.2 |
298 |
| 4G2.5 |
13.4 |
345 |
| 5G2.5 |
14.9 |
427 |
| 7G2.5 |
17.9 |
561 |
| 12G2.5 |
21.9 |
857 |
| 18G2.5 |
26.1 |
1355 |
| 25G2.5 |
31.9 |
1995 |
| 3G4 |
15.1 |
391 |
| 4G4 |
16.7 |
527 |
| 5G4 |
18.6 |
700 |
| 3G6 |
17.0 |
629 |
| 4G6 |
18.7 |
731 |
| 5G6 |
20.7 |
1105 |
| 3G10 |
19.6 |
1125 |
| 4G10 |
21.9 |
1345 |
| 5G10 |
24.1 |
1635 |
| 4G16 |
23.5 |
1395 |
| 5G16 |
26.4 |
1870 |
| 7G16 |
28.8 |
2720 |
| 3G25 |
28.0 |
2465 |
| 4G25 |
32.5 |
2750 |
| 5G25 |
35.7 |
3490 |
| 3G35 |
32.7 |
3230 |
| 4G35 |
35.7 |
4100 |
| 5G35 |
40.0 |
4950 |
| 4G50 |
41.1 |
5780 |
| 4G70 |
48.0 |
7480 |
| 4G95 |
51.2 |
10220 |
| 4G120 |
56.0 |
13750 |
| 4G150 |
64.5 |
15900 |
G: with green-yellow earth core
×: without green-yellow earth core
