Halogen Free Grounding Cable 0.6/1 kV
Application
These cables with reduced fire hazard and higher safety performance are designed for control and power systems, used as connecting cable for earthing or grounding of trays, cubicle and other conductive parts.
Standards
- DIN VDE 0295

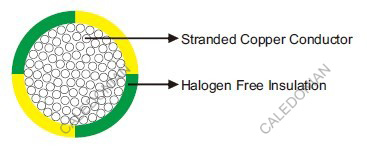

Construction
Conductor | Stranded bare copper, class 5/class 2 according to IEC 60228. |
Insulation | Halogen free compound HM4 according to IEC 60092-353. |
Technical Data
Rated Voltage Uo/U (Um) | 0.6/1kV |
Operating Temperatures | flexing: -5℃~+85℃; fixed: -35℃~+85℃ |
Minimum Bending Radius | flexing: 16×OD; fixed: 8×OD |
Flame Retardant | IEC 60332-3 Cat. A |
Halogen Free | IEC 60754 |
Gases Corrosively | IEC 60754 |
Smoke Density | IEC 61034 |
Ozone Resistant | Yes |
Silicone Free | Yes |
Dimensions and Weight
Construction | Nominal Overall Diameter | Nominal Weight |
---|---|---|
No. of cores×mm2 | mm | kg/km |
Class 2 Stranded | ||
1G1.5 | 2.9 | 20 |
1G2.5 | 3.3 | 31 |
1G4 | 3.8 | 46 |
1G6 | 4.4 | 68 |
1G16 | 6.2 | 169 |
1G25 | 7.9 | 264 |
1G35 | 8.9 | 364 |
1G50 | 10.3 | 516 |
1G70 | 12.2 | 720 |
1G95 | 14.0 | 967 |
1G120 | 15.8 | 1220 |
Class 5 Stranded | ||
1G6 | 4.4 | 68 |
1G10 | 5.4 | 109 |
1G16 | 6.6 | 170 |
1G25 | 8.4 | 266 |
1G70 | 12.7 | 728 |
