  HomeProuductsWindmill Cables

Medium Voltage High Temperature Resistant Cables +180°C

Application

These cables are specifically designed for applications requiring for high temperature and oil resistant, suitable used for linking generators to transformers positioned up in the nacelle.

Standards

  • IEC 60092

Construction

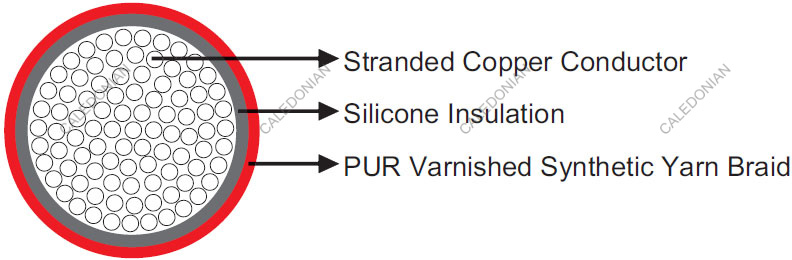

Medium Voltage High Temperature Resistant Cables +180°C
Conductor Stranded tinned copper wires, class 5 according to IEC 60228
Tape Polyester tape (up 16 mm^2), Semi-conductive layer (only for 6.6 and 13.8 kV)
Insulation Silicone rubber insulation
Braid PUR varnished synthetic yarn braid

Technical Data

Rated Voltage U0/U (Um) 1.1kV-15kV
Operating Temperatures -55℃~+180℃
Minimum Bending Radius 6×OD (1.1kV); 12×OD (>=1.1kV)
Flame Retardant IEC 60332-1/IEC 60332-3
Halogen Free IEC 60754
Corrosive Gases IEC 60754
Smoke Density IEC 61034
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Cold Resistant CSA C 22.2

Dimensions and Weight

1.1kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×2.5 4.5 36
1×4 5.0 52
1×6 5.4 69
1×10 6.4 111
1×16 8.6 177
1×25 10.3 267
1×35 11.6 365
1×50 13.6 510
1×70 15.7 701
1×95 17.9 926
1×120 19.8 1154
1×150 21.9 1432
1×185 24.3 1761
1×240 26.9 2284

3.3-4.2kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×2.5 6.3 54
1×6 7.3 90
1×10 8.2 135
1×16 10.4 208
1×25 12.0 302
1×35 13.2 401
1×50 15.4 559
1×70 17.5 775
1×95 19.5 981
1×120 21.4 1215
1×150 23.1 1481
1×185 25.1 1798
1×240 27.5 2314

6.6-7.2kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×4 7.6 81
1×6 8.0 99
1×10 9.0 145
1×16 11.3 225
1×25 12.9 322
1×35 14.1 423
1×50 16.3 584
1×70 18.3 785
1×95 20.2 1006
1×120 22.0 1238
1×150 24.1 1525
1×185 26.1 1844
1×240 28.3 2355

13.8-15.0kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×10 12.1 205
1×16 14.0 288
1×25 15.5 390
1×35 16.7 497
1×50 18.5 655
1×70 20.6 864
1×95 22.4 1093
1×120 24.2 1332
1×150 26.5 1637
1×185 28.5 1966
1×240 30.7 2486
