(N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable

Application

These LSOH cables are specifically designed for special application condition in wind turbines, used for economical transmission of large energy rates with medium voltage.

Standards

  • DIN VDE 0250 Part 813

Construction

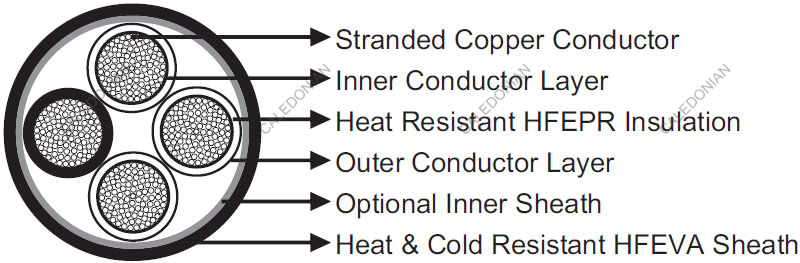

(N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable
Conductor Stranded tinned/bare copper, class 5 according to DIN VDE 0295 IEC 60228
Inner Conductor Layer Semiconductive halogen free rubber compound
Insulation Halogen free, heat resistant insulation based on EPR
Outer Conductor Layer Semiconductive rubber compound
Optional Inner Sheath Extruded special rubber compound
Sheath Halogen free special rubber compound based on EVA

Technical Data

Rated Voltage Uo/U (Um) 8.7/15 kV, 12/20 kV,18/30 kV,20/35 kV
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 10×OD
Torsion Application +/100°/m
Maximum Permissible Tensile Load 15N/mm^2
Short-circuit Temperature 250℃
Flame Retardant DIN EN 60332-1
Halogen Free IEC 60754
Corrosive Gases DIN EN 50267-2-3
Smoke Density DIN EN 50268-2
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Silicone Free Yes

Dimensions and Weight

8.7/15kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×50/50 51.5 4050
3×70/70 57.5 5250
3×95+3×16.7 57.5 5600

12/20kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×25/25 51.5 3400
3×35/35 54.5 4000
3×50/50 56.5 4700
3×70/70 59.0 5700
3×95/95 65.5 6900

18/30kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×25/25 67.5 5300
3×35/35 67.5 5600
3×50/50 69.5 6300
3×70/70 71.5 7100
3×95/95 76.5 8500

20/35 kV

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
3×25/25 73.0 6100
3×35/35 73.0 6500
3×50/50 73.0 6800
3×70/70 76.0 7900
3×95/95 78.0 9100
