Submersible Cable for drinking water (round type)

Applications

These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water.

Standards

  • DIN VDE 0282, part 16
    DIN VDE 0295
    IEC 60228
    DIN VDE 0298
    DIN VDE 0472

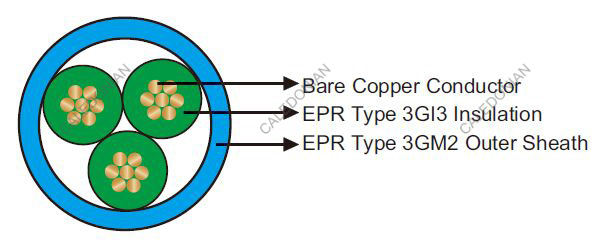

Construction

Submersible Cable for drinking water (round type)

  • Conductor: Bare copper stranded class 5 to VDE0295, IEC 60228
    Insulation: EPR type 3GI3
    Outer Sheath: EPR type 3GM2, coloured blue.

  • Technical data

  • Test Voltage 50Hz, 5 min: 2500V
    Rated Voltage: 450/750V
    Maximum admissible conductor Temperature in Operation: 90°C
    Short Circuit Temperature: 250°C
    Temperature Range:-40°C~+60°C

Dimensions

No. of cores x cross 　Outer Diameter Net weight
kg/km
　Min. value mm 　Max. value mm
1 x 1.5 5.8 7.2 54
1 x 2.5 6.4 8.0 76
1 x 4 7.4 9.0 105
1 x 6 8.0 11.0 135
1 x 10 9.8 12.5 200
1 x 16 11.0 14.5 290
1 x 25 12.5 16.5 410
1 x 35 14.0 18.5 560
1 x 50 16.5 21.0 740
1 x 70 18.5 23.5 1000
1 x 95 21.0 26.0 1300
1 x 120 23.5 28.5 1650
1 x 150 26.0 31.5 2000
1 x 185 27.5 34.5 2500
1 x 240 30.5 38.0 3100
1 x 300 33.5 41.5 3700
2 x 1.5 9.0 11.5 130
2 x 2.5 10.5 13.5 190
2 x 4 12.0 15.0 260
2 x 6 13.5 18.5 350
2 x 10 18.5 24.0 550
2 x 16 21.0 27.5 900
2 x 25 25.0 31.5 1300
3 x 1.5 9.6 12.5 150
3 x 2.5 11.5 14.5 220
3 x 4 13.0 16.0 340
3 x 6 14.5 20.0 480
3 x 10 20.0 25.5 750
3 x 16 22.5 29.5 1100
3 x 25 26.5 34.0 1450
3 x 35 29.5 38.0 2100
3 x 50 34.5 44.0 2800
3 x 70 39.0 49.5 3800
3 x 95 44.0 54.6 4600
3 x 120 47.5 59.0 5400
4G1.5 10.5 13.5 190
4G2.5 12.5 15.5 280
4G4 14.5 18.0 390
4G6 16.5 22.0 520
4G10 22.5 24.5 950
4G16 26.5 28.5 1400
4G25 32.0 34.0 1950
4G35 33.0 42.5 2700
4G50 38.0 48.5 3600
4G70 43.0 54.5 4900
4G95 50.0 60.5 6200
4G120 53.0 65.5 7200
5G1.5 11.5 15.0 230
5G2.5 13.5 17.0 340
5G4 16.0 19.5 470
5G6 18.0 24.5 640
5G10 24.0 30.5 1150
5G16 27.0 35.5 1700
7G1.5 16.5 17.5 370
10G1.5 18.6 19.6 460
7G2.5 18.9 19.4 510
10G2.5 21.4 21.9 650
