MC Cable
Copper MC Electrical Cable
Applications:
opper MC Cables is manufactured for indoor, outdoor and conduit use only. It cannot be directly buried in the earth without the protection of conduit or cable tray. It's manufactured with Copper THHN Wires and insulated copper THHN ground wire. This type of electrical cable is also manufactured with aluminum strands called Aluminum MC Cable which has the same approvals but it 's slightly less of a conductor of electricity.

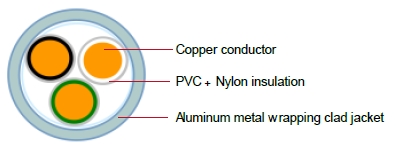

Construction:
Conductor:
Soft annealed bare copper, Class B stranding per ASTM B8
Insulation:
THHN/THWN insulation
Jacket:
luminum metal clad w rapping jacket
Properties:
Voltage rating: 600V
Temperature rating: 90 C
Parameters:
Type | AWG | Strand | Cable weight Lbs/kft kg/km |
|
---|---|---|---|---|
2 Cores + Ground | ||||
MC 12/2 | 12 | 1 | 110 | 163.8 |
3 Cores + Ground | ||||
MC 12/3 | 12 | 1 | 134 | 199.5 |
