MC Cable

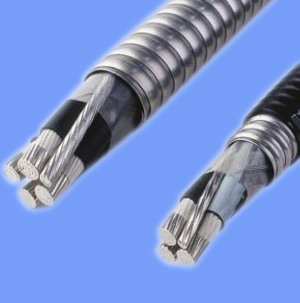

Aluminum MC Electrical Cable(Aluminum Conductor)

Applications:

These cables are designed for Direct Burial. They can be directly buried in the earth without the protection of conduit or cable tray. They are manufactured with Aluminum XHHW Wires and an insulated Aluminum XHHW ground wire.

Construction:


Conductor:  Stranded Aluminum Strands 6 - 750 mcm
Insulation: XHHW insulation
Jacket: Aluminum Metal Clad Jacket

Properties:

Voltage rating: 600 Volts
Temperature rating: 90°C

Parameters:

Type AWG Strand Cable Weight
Lbs/kft Kg/km
3 Cores + Ground
MC PVC 6/3 6 AWG 19 237  352.8
MC PVC 4/3 4 AWG 19 298  443.6
MC PVC 2/3 2 AWG 19 411 611.8
MC PVC 1/3 1 AWG 19 496  738.3
MC PVC 1/0 3 1/0 AWG 19 578  860.4
 MC PVC 2/0 3 2/0 AWG 19 678  1009.2
MC PVC 3/0 3 3/0 AWG 19 833  1239.9
MC PVC 4/0 3 4/0 AWG 19 1089  1621.0
MC PVC 250 3 250 MCM 19 1275  1897.9
MC PVC 350 3 350 MCM 19 1653  2460.5
 MC PVC 400 3 400 MCM 19 1830  2724.0
 MC PVC 500 3 500 MCM 19 2177  3240.5
 MC PVC 600 3 600 MCM 19 2608  3882.1
MC PVC 750 3 750 MCM 19 3118  4641.2
4Cores + Ground
 MC PVC 6/4 6 AWG 19 297 442.1
MC PVC 4/4 4 AWG 19 372 553.7
MC PVC 2/4 2 AWG 19 508  756.2
MC PVC 1/4 1 AWG 19 619  921.4
 MC PVC 1/0 4 1/0 AWG 19 727  1082.2
MC PVC 2/0 4 2/0 AWG 19 858  1277.2
MC PVC 3/0 4 3/0 AWG 19 1138  1693.9
MC PVC 4/0 4 4/0 AWG 19 1374  2045.2
MC PVC 250 4 250 MCM 19 1634  2432.2
MC PVC 350 4 350 MCM 19 2129  3169.1
MC PVC 500 4 500 MCM 19 2877  4282.5
MC PVC 600 4 600 MCM 19 3415  5083.3
MC PVC 750 4 750 MCM 19 4089  6086.6
